DF12 Series

Catalog

CONN RCPT 20POS SMD GOLD

Part	Contact Finish	Features	Connector Type	Mounting Type	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Number of Positions
Hirose Electric Co Ltd DF12-20DS-0.5V(86)	Gold	Board Guide Solder Retention	Receptacle Center Strip Contacts	Surface Mount	2	0.203 çm	8 µin	0.02 "	0.5 mm	3.5 mm 4 mm 5 mm	0.106 in	2.7 mm	20
Hirose Electric Co Ltd DF12-30DS-0.5V(48)	Gold	Board Guide Solder Retention	Receptacle Center Strip Contacts	Surface Mount	2			0.02 "	0.5 mm	3.5 mm 4 mm 5 mm	0.106 in	2.7 mm	30
Hirose Electric Co Ltd DF12-20DS-0.5V(80)	Gold	Board Guide Solder Retention	Receptacle Center Strip Contacts	Surface Mount	2			0.02 "	0.5 mm	3.5 mm 4 mm 5 mm	0.106 in	2.7 mm	20
Hirose Electric Co Ltd DF12-36DS-0.5V(80)	Gold	Board Guide Solder Retention	Receptacle Center Strip Contacts	Surface Mount	2			0.02 "	0.5 mm	3.5 mm 4 mm 5 mm	0.106 in	2.7 mm	36
Hirose Electric Co Ltd DF12-36DS-0.5V(86)	Gold	Board Guide Solder Retention	Receptacle Center Strip Contacts	Surface Mount	2	0.203 çm	8 µin	0.02 "	0.5 mm	3.5 mm 4 mm 5 mm	0.106 in	2.7 mm	36
Hirose Electric Co Ltd DF12-32DS-0.5V(86)	Gold	Board Guide Solder Retention	Receptacle Center Strip Contacts	Surface Mount	2	0.203 çm	8 µin	0.02 "	0.5 mm	3.5 mm 4 mm 5 mm	0.106 in	2.7 mm
Hirose Electric Co Ltd DF12-40DS-0.5V(22)
Hirose Electric Co Ltd DF12-30DS-0.5V(86)	Gold	Board Guide Solder Retention	Receptacle Center Strip Contacts	Surface Mount	2	0.203 çm	8 µin	0.02 "	0.5 mm	3.5 mm 4 mm 5 mm	0.106 in	2.7 mm	30
Hirose Electric Co Ltd DF12-30DS-0.5V(80)	Gold	Board Guide Solder Retention	Receptacle Center Strip Contacts	Surface Mount	2			0.02 "	0.5 mm	3.5 mm 4 mm 5 mm	0.106 in	2.7 mm	30

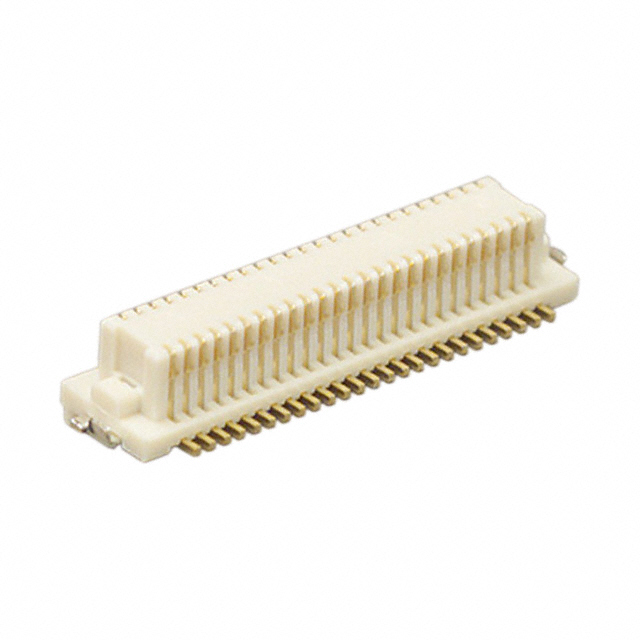

Hirose Electric Co Ltd DF12-50DS-0.5V(80)	Gold	Board Guide Solder Retention	Receptacle Center Strip Contacts	Surface Mount	2			0.02 "	0.5 mm	3.5 mm 4 mm 5 mm	0.106 in	2.7 mm	50
