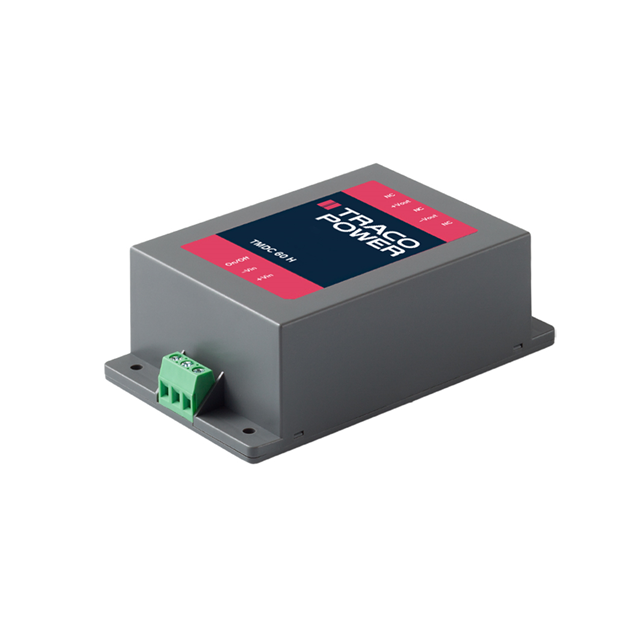

TMDC 60 Series

Catalog

DC/DC CONVERTER +/-12V 60W

Part	Type	Applications	Number of Outputs	Voltage - Output 2	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max)	Current - Output (Max)	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Power (Watts)	Approval Agency	Mounting Type	Current - Output (Max) [Max]
Traco Power TMDC 60-7222H	Enclosed	ITE (Commercial)	2	-12 V	12 V	112 mm	4.41 "	2.67 in	38.1 mm	67.8 mm	1.5 in	2.5 A	2.5 A	88 %	90 °C	-40 C	3000 V	80 V	160 V	60 W	CB CE cURus	Chassis Mount
Traco Power TMDC 60-4815	Enclosed	ITE (Commercial)	1		24 V	112 mm	4.41 "	2.67 in	38.1 mm	67.8 mm	1.5 in			91 %	85 °C	-40 °C	2500 V	18 V	75 V	60 W	CB CE cURus	Chassis Mount	2.5 A
Traco Power TMDC 60-2418	Enclosed	ITE (Commercial)	1		48 V	112 mm	4.41 "	2.67 in	38.1 mm	67.8 mm	1.5 in			91 %	85 °C	-40 °C	2500 V	9 V	36 V	60 W	CB CE cURus	Chassis Mount	1.25 A
Traco Power TMDC 60-4818	Enclosed	ITE (Commercial)	1		48 V	112 mm	4.41 "	2.67 in	38.1 mm	67.8 mm	1.5 in			91 %	85 °C	-40 °C	2500 V	18 V	75 V	60 W	CB CE cURus	Chassis Mount	1.25 A
