20-650 Series

Catalog

.27" COVER 20 PIN

Part	For Use With/Related Products	Accessory Type	Number of Positions	Material Flammability Rating	Termination Post Length	Termination Post Length	Current Rating (Amps)	Contact Finish - Mating	Contact Finish - Post	Pitch - Post	Pitch - Post	Contact Material - Mating	Number of Positions or Pins (Grid)	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Post	Pitch - Mating	Pitch - Mating	Housing Material	Features	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Type [custom]	Type [custom]	Type

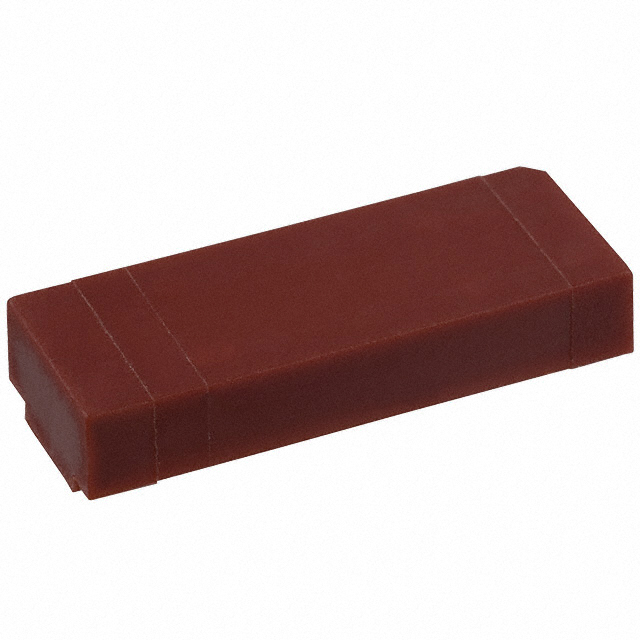

Aries Electronics 20-650-10	0600 Series Header	Cap (Cover)	20
Aries Electronics 20-6503-31				UL94 V-0	0.5 in	12.7 mm	3 A	Gold	Gold	0.1 in	2.54 mm	Beryllium Copper	20	Wire Wrap	-55 C	125 °C	10 Áin	0.25 çm	Phosphor Bronze	0.1 "	2.54 mm	Polyamide (PA46) Nylon 4/6 Glass Filled	Closed Frame	Through Hole	0.25 µm	10 µin	15.24 mm	0.6 in	DIP
Aries Electronics 20-6503-20				UL94 V-0	0.36 in	9.14 mm	3 A	Gold	Tin	0.1 in	2.54 mm	Beryllium Copper	20	Wire Wrap	-55 C	105 ░C	200 µin	5.08 µm	Phosphor Bronze	0.1 "	2.54 mm	Polyamide (PA46) Nylon 4/6 Glass Filled	Closed Frame	Through Hole	0.25 µm	10 µin	15.24 mm	0.6 in	DIP
