SIS590 Series

Catalog

MOSFET N/P-CH 100V 2.7A PPAK1212

Part	Configuration	Supplier Device Package	Technology	Drain to Source Voltage (Vdss)	Operating Temperature [Min]	Operating Temperature [Max]	Vgs(th) (Max) @ Id	Power - Max	Mounting Type	Rds On (Max) @ Id, Vgs	Package / Case	Input Capacitance (Ciss) (Max) @ Vds	Current - Continuous Drain (Id) @ 25°C

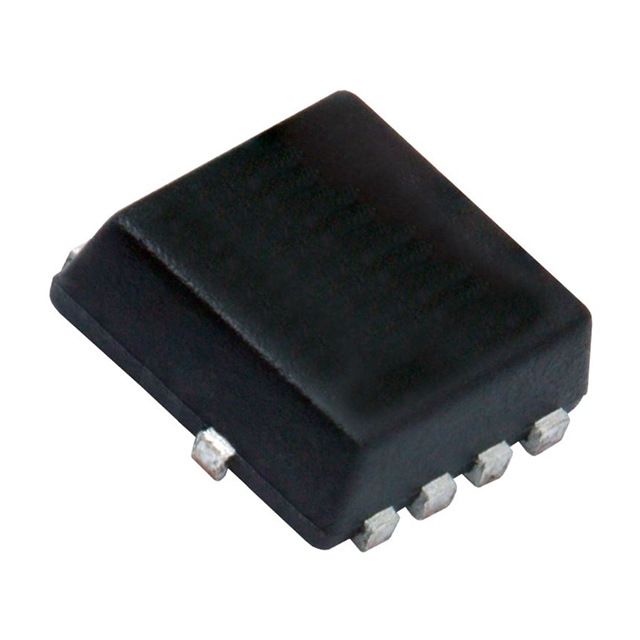

Vishay General Semiconductor - Diodes Division SIS590DN-T1-GE3	N and P-Channel	PowerPAK® 1212-8 Dual	MOSFET (Metal Oxide)	100 V	-55 °C	150 °C	2.5 V	2.5 W 2.6 W 17.9 W 23.1 W	Surface Mount	167 mOhm 251 mOhm	PowerPAK® 1212-8 Dual	265 pF 325 pF	2.3 A 2.7 A 4 A
