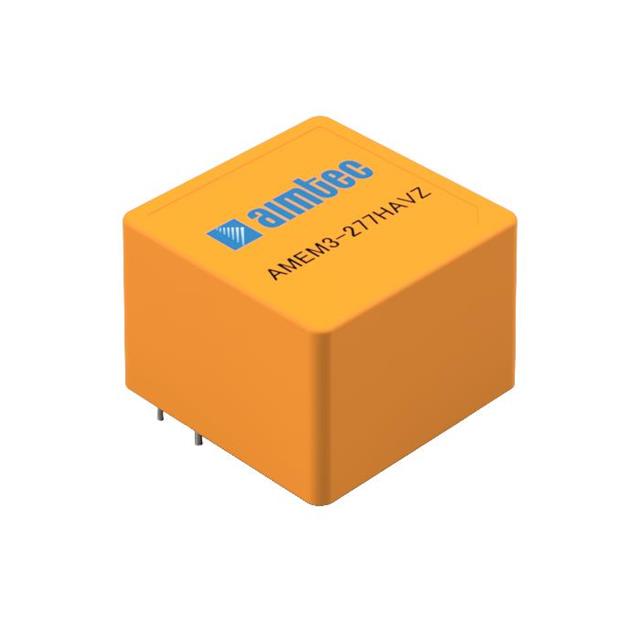

AMEM3 Series
Manufacturer: aimtec
Beta
⌘K
AC/DC CONVERTER 24V 3W
| Part | Standard Number | Line Regulation | Load Regulation | Weight | Weight | Approval Agency | Mounting Type | Type | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Current - Output (Max) [Max] | Package / Case | Number of Outputs | Power (Watts) | Applications | Voltage - Input [Min] | Voltage - Input [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Output 1 | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | 60335-1 61558-1 62368-1 | 0.5 % | ±1% | 0.041 lb | 18.5 g | CE cURus EN IEC UL | Through Hole | Enclosed | -40 °C | 85 °C | 79 % | 125 mA | 5-DIP Module 4 Leads | 1 | 3 W | Household Appliances ITE (Commercial) | 85 VAC 100 V | 305 VAC 430 VDC | 0.69 in | 1 " | 17.6 mm | 1 in | 25.4 mm | 25.4 mm | 24 V | |
aimtec | 60335-1 61558-1 62368-1 | 0.5 % | ±1% | 0.04 lb | 18 g | CE cURus EN IEC UL | Through Hole | Enclosed | -40 °C | 85 °C | 76 % | 600 mA | 5-DIP Module 4 Leads | 1 | 3 W | Household Appliances ITE (Commercial) | 85 VAC 100 V | 305 VAC 430 VDC | 0.69 in | 1 " | 17.6 mm | 1 in | 25.4 mm | 25.4 mm | 5 V | |
aimtec | 60335-1 61558-1 62368-1 | 0.5 % | ±1% | 0.04 lb | 18 g | CE cURus EN IEC UL | Through Hole | Enclosed | -40 °C | 85 °C | 72 % | 900 mA | 5-DIP Module 4 Leads | 1 | 3 W | Household Appliances ITE (Commercial) | 85 VAC 100 V | 305 VAC 430 VDC | 0.69 in | 1 " | 17.6 mm | 1 in | 25.4 mm | 25.4 mm | 3.3 V | |
aimtec | 60335-1 61558-1 62368-1 | 0.5 % | ±1% | 0.04 lb | 18 g | CE cURus EN IEC UL | Through Hole | Enclosed | -40 °C | 85 °C | 78 % | 250 mA | 5-DIP Module 4 Leads | 1 | 3 W | Household Appliances ITE (Commercial) | 85 VAC 100 V | 305 VAC 430 VDC | 0.69 in | 1 " | 17.6 mm | 1 in | 25.4 mm | 25.4 mm | 12 V | |
aimtec | 60335-1 61558-1 62368-1 | 0.5 % | ±1% | 0.04 lb | 18 g | CE cURus EN IEC UL | Through Hole | Enclosed | -40 °C | 85 °C | 78 % | 333 mA | 5-DIP Module 4 Leads | 1 | 3 W | Household Appliances ITE (Commercial) | 85 VAC 100 V | 305 VAC 430 VDC | 0.6 " 0.69 in | 1 " | 15.2 mm 17.6 mm | 1 in | 25.4 mm | 25.4 mm | 9 V | DC Input Capable Universal Input |
aimtec | 60335-1 61558-1 62368-1 | 0.5 % | ±1% | 0.041 lb | 18.5 g | CE cURus EN IEC UL | Through Hole | Enclosed | -40 °C | 85 °C | 79 % | 200 mA | 5-DIP Module 4 Leads | 1 | 3 W | Household Appliances ITE (Commercial) | 85 VAC 100 V | 305 VAC 430 VDC | 0.6 " 0.69 in | 1 " | 15.2 mm 17.6 mm | 1 in | 25.4 mm | 25.4 mm | 15 V | DC Input Capable Universal Input |
