1011026 Series
Manufacturer: Integrated Power Designs
Beta
⌘K

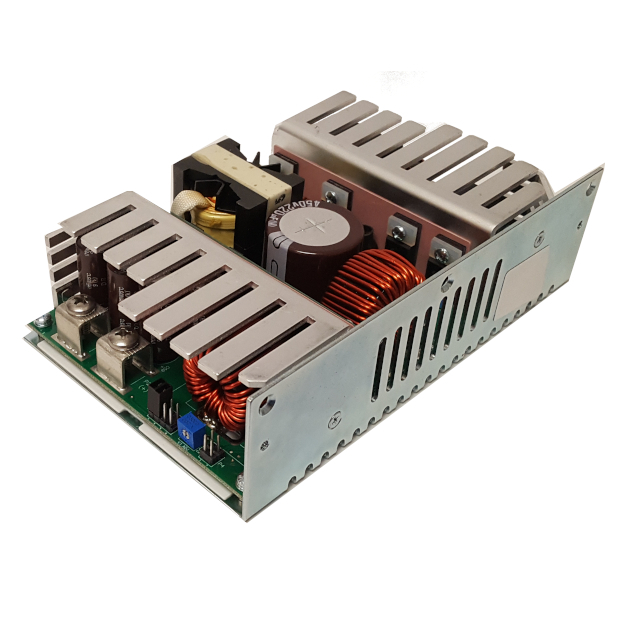

AC/DC CONVERTER 2.5V 325W
| Part | Number of Outputs | Power (Watts) | Type | Current - Output 1 | Mounting Type | Standard Number | Efficiency | Approval Agency | Voltage - Output 1 | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Applications | Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Integrated Power Designs | 1 | 325 W | Enclosed | 65 A | Chassis Mount | 60601-1; 62368-1 | 85 % | CE cURus TUV UKCA | 2.5 V | 157.5 mm | 4 " | 6.2 in | 1.75 in | 44.5 mm | 101.6 mm | ITE (Commercial) Medical | Adjustable Output Remote Sense Universal Input | 70 °C | 0 °C | 100 VAC | 240 VAC |
 Integrated Power Designs | 1 | 325 W | Chassis | 65 A | Chassis Mount | 60601-1; 62368-1 | 85 % | CE cURus TUV UKCA | 2.5 V | 157.5 mm | 4 " | 6.2 in | 1.75 in | 44.5 mm | 101.6 mm | ITE (Commercial) Medical | Adjustable Output Remote Sense Universal Input | 70 °C | 0 °C | 100 VAC | 240 VAC |
