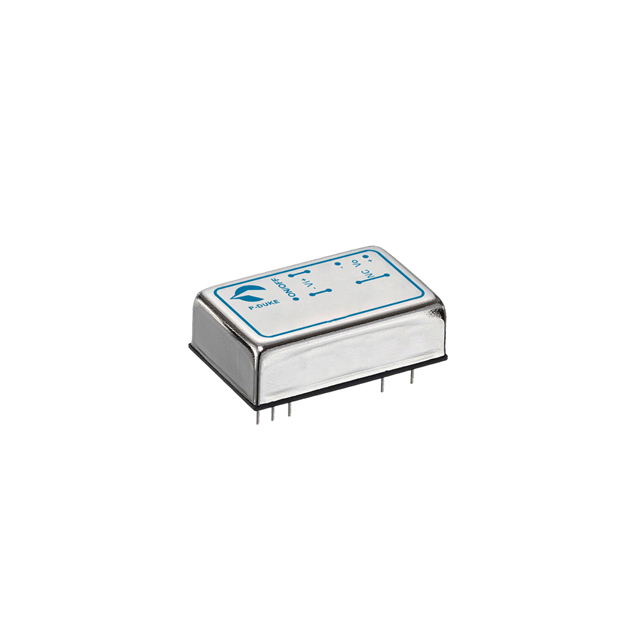

FKC08 Series
Manufacturer: P-DUKE Technology
Beta
⌘K
DC DC CONVERTER 12V 8W
| Part | Applications | Mounting Type | Package / Case | Approval Agency | Power (Watts) | Voltage - Isolation | Voltage - Input (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Control Features | Voltage - Input (Min) [Min] | Type | Efficiency | Features | Voltage - Output 1 | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 P-DUKE Technology | ITE (Commercial) | Through Hole | 24-DIP Module 9 Leads | CB CE cURus | 8 W | 1.6 kV | 75 V | -40 °C | 100 °C | 666 mA | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | Active High Enable | 36 V | Isolated Module | 86 % | Remote On/Off | 12 V | 1 |
