HMC344A Series

0.1 GHz to 8 GHz, GaAs, Nonreflective, SP4T Switch

Catalog

0.1 GHz to 8 GHz, GaAs, Nonreflective, SP4T Switch

Part	Supplier Device Package	Test Frequency	P1dB	Impedance	Mounting Type	IIP3	Isolation	RF Type	Insertion Loss	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency Range [Min]	Frequency Range [Max]
Analog Devices HMC344LC3TR-R5	16-CSMT (3x3)	8 GHz	26 dBm	50 Ohms	Surface Mount	43 dBm	40 dB	Radar	2.5 dB	16-VFCQFN Exposed Pad	85 °C	-40 °C	Absorptive
Analog Devices HMC344	Die	6 GHz	21 dBm	50 Ohms		40 dBm	39 dB	VSAT	1.8 dB	Die	85 °C	-55 °C	Absorptive
Analog Devices HMC344LP3ETR	16-QFN (3x3)	6 GHz	21 dBm	50 Ohms	Surface Mount	40 dBm	40 dB	WLAN	1.8 dB	16-VFQFN Exposed Pad	85 °C	-40 °C	Absorptive
Analog Devices HMC344ATCPZ-EP-R7	16-LFCSP (3x3)	8 GHz	25 dBm	50 Ohms	Surface Mount	44 dBm	32 dB	General Purpose	2.1 dB		125 °C	-55 °C		-5 V	-3 V	100 MHz	8 GHz
Analog Devices HMC344ALP3E	16-QFN (3x3)	4 GHz		50 Ohms	Surface Mount	40 dBm	35 dB	VSAT	1.9 dB	16-VFQFN Exposed Pad	85 °C	-55 °C	Absorptive

Catalog

0.1 GHz to 8 GHz, GaAs, Nonreflective, SP4T Switch

Key Features

• Broadband frequency range: 0.1 GHz to 8 GHz

• Nonreflective 50 Ω design

• Low insertion loss: 1.7 dB at 6 GHz

• High isolation: 36 dB at 6 GHz

• High input linearity at 250 MHz to 8 GHzP1dB: 28 dBm typicalIP3: 44 dBm typical

• P1dB: 28 dBm typical

• IP3: 44 dBm typical

• Integrated 2 to 4 line decoder

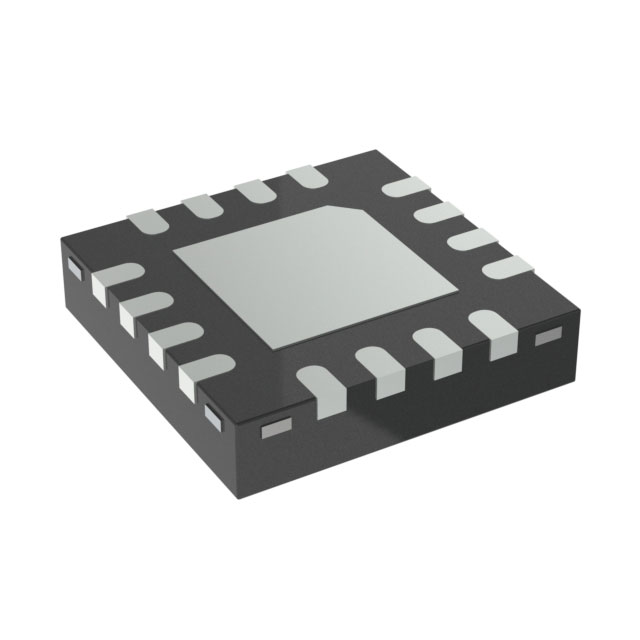

• 16-lead, 3 mm × 3 mm LFCSP package

• ESD HBM rating: 250 V (Class 1A)

• Download theHMC344ATCPZ-EP data sheet

• Military temperature range (−55°C to +125°C)

• Controlled manufacturing baseline

• One assembly/test site

• Product change notification

• Qualification data available on request

Description

The HMC344 is a broadband nonreflective GaAs MESFET SP4T switch/switch chip in a ceramic 3 mm x 3 mm leadless surface-mount package, a hermetic SMT leadless package, or in a low cost leadless surface-mount package. Covering DC to 12 GHz, this switch offers high isolation, low insertion loss, a compact form factor, and extends the frequency coverage of the switch product line. This switch also includes an on-board binary decoder circuit, which reduces the number of required logic control lines to two.The switch operates using a negative control voltage of 0/−5 V, and requires a fixed bias of −5 V. All data is tested with the chip in a 50 Ω test fixture connected via 0.025 mm (1 mil) diameter wire bonds of minimal length 0.31 mm (12 mils). This SP4T switch is available in SMT packaged form. Simple external level shifting circuitry allows this switch to be controlled with most TTL/CMOS positive logic families.The HMC344 allows the use of surface-mount manufacturing techniques and is suitable for high reliability military, industrial, and space applications.ApplicationsTelecom infrastructureMicrowave radios and VSATTest instrumentationBroadband, military radios, radar, and ECMFiber opticsSwitched filter banksWireless below 8 GHzSpace systems
