3CV-PL Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

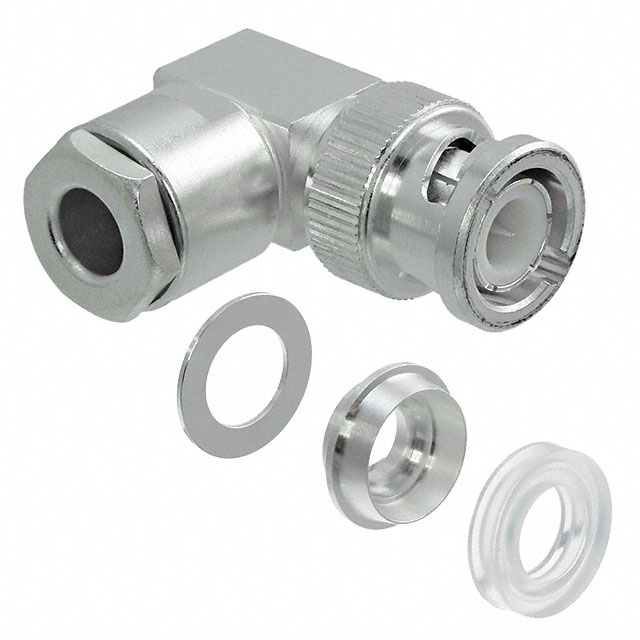

CONN BNC PLUG R/A 50 OHM SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Mating Cycles | Center Contact Plating | Body Material | Dielectric Material | Cable Group | Connector Style | Mounting Type | Shield Termination | Frequency - Max [Max] | Impedance | Number of Ports | Housing Color | Fastening Type | Connector Type | Center Contact Material | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | -30 ░C | 60 °C | Silver | 1000 | Silver | Brass | Polytetrafluoroethylene (PTFE) | 3C-2V | BNC | Free Hanging (In-Line) Right Angle | Clamp | 4 GHz | 50 Ohms | 1 | Silver | Bayonet Lock | Plug Male Pin | Brass | Solder |
