14-820 Series

Catalog

CONN IC DIP SOCKET 14POS TIN

Part	Material Flammability Rating	Current Rating (Amps)	Termination Post Length	Termination Post Length	Number of Positions or Pins (Grid)	Features	Contact Material - Mating	Contact Material - Post	Contact Finish - Post	Housing Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Pitch - Mating	Pitch - Mating	Pitch - Post	Pitch - Post	Type	Type	Type	Contact Finish - Mating	Contact Material - Post [custom]	Operating Temperature [Min]	Operating Temperature [Max]
Aries Electronics 14-820-90TWR	UL94 V-0	1.5 A	0.145 in	3.68 mm	14	Closed Frame	Phosphor Bronze	Phosphor Bronze	Tin	Polyamide (PA46) Nylon 4/6	200 µin	5.08 µm	5.08 µm	200 µin	Solder	0.1 "	2.54 mm	0.1 in	2.54 mm	7.62 mm	0.3 in	DIP
Aries Electronics 14-820-90T	UL94 V-0	1.5 A	0.145 in	3.68 mm	14	Closed Frame	Phosphor Bronze	Phosphor Bronze	Tin	Polyamide (PA46) Nylon 4/6	200 µin	5.08 µm	5.08 µm	200 µin	Solder	0.1 "	2.54 mm	0.1 in	2.54 mm	7.62 mm	0.3 in	DIP
Aries Electronics 14-820-90WR	UL94 V-0	1.5 A	0.145 in	3.68 mm	14	Closed Frame	Phosphor Bronze	Phosphor Bronze	Gold	Polyamide (PA46) Nylon 4/6	10 Áin	0.25 çm	0.25 µm	10 µin	Solder	0.1 "	2.54 mm	0.1 in	2.54 mm	7.62 mm	0.3 in	DIP	Gold
Aries Electronics 14-820-90C	UL94 V-0	3 A	0.14 in	3.56 mm	14	Closed Frame	Beryllium Copper		Tin	Polyamide (PA46) Nylon 4/6 Glass Filled	200 µin	5.08 µm	0.76 Ám	30 Áin	Solder	0.1 "	2.54 mm	0.1 in	2.54 mm	7.62 mm	0.3 in	DIP	Gold	Brass	-55 C	105 ░C

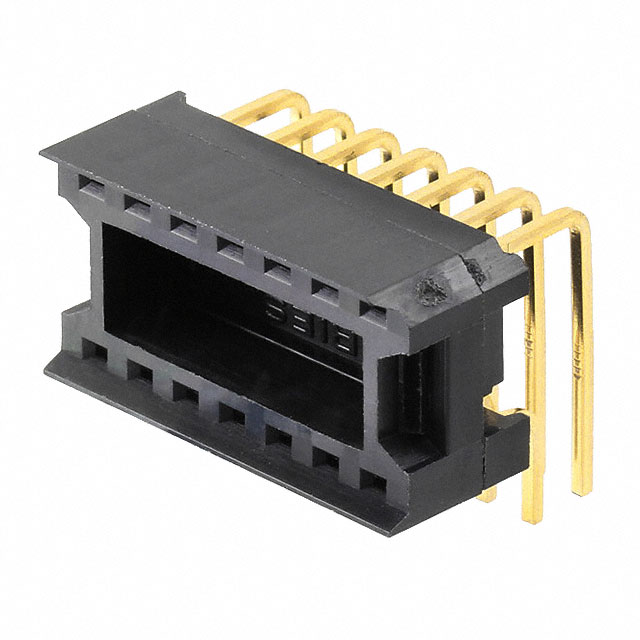

Aries Electronics 14-820-90	UL94 V-0	1.5 A	0.145 in	3.68 mm	14	Closed Frame	Phosphor Bronze	Phosphor Bronze	Gold	Polyamide (PA46) Nylon 4/6	10 Áin	0.25 çm	0.25 µm	10 µin	Solder	0.1 "	2.54 mm	0.1 in	2.54 mm	7.62 mm	0.3 in	DIP	Gold
