BXRC-40 Series

Manufacturer: BRIDGELUX

Catalog

Catalog

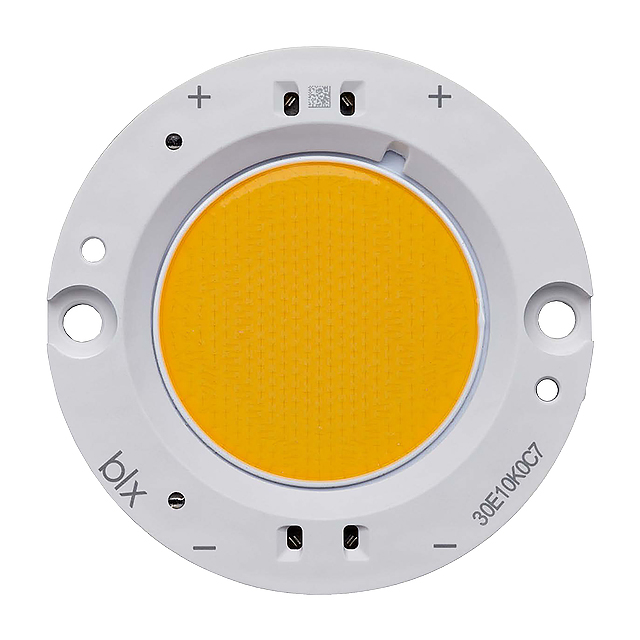

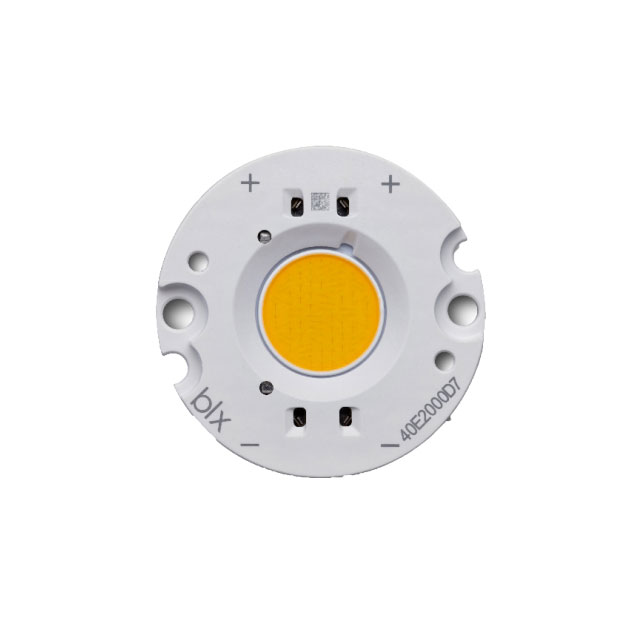

LED COB VERO SE 29 WHT RND 4000K

...

Part	Height [z]	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Type	Lens Type	Size / Dimension [diameter]	Current - Test	Viewing Angle	Current - Max [Max]	Light Emitting Surface (LES) [diameter]	Lumens/Watt @ Current - Test	Configuration	CRI (Color Rendering Index)	Temperature - Test	CCT (K)	CCT (K)	Color	Features
BRIDGELUX BXRC-40A10K1-B-73-SE	3.6 mm	12917 lm	52 V	Chip On Board (COB)	Flat	49.2 mm	1.8 A	120 °	3.6 A	29.2 mm	138 lm/W	Round	93	25 °C	4000 K	3-Step MacAdam Ellipse	Neutral White
BRIDGELUX BXRC-40E2000-B-73-SE	3.6 mm	2219 lm	34.1 V	Chip On Board (COB)	Flat	36.2 mm	450 mA	120 °	900 mA	13.4 mm	145 lm/W	Round	80	85 °C	4000 K	3-Step MacAdam Ellipse	Neutral White

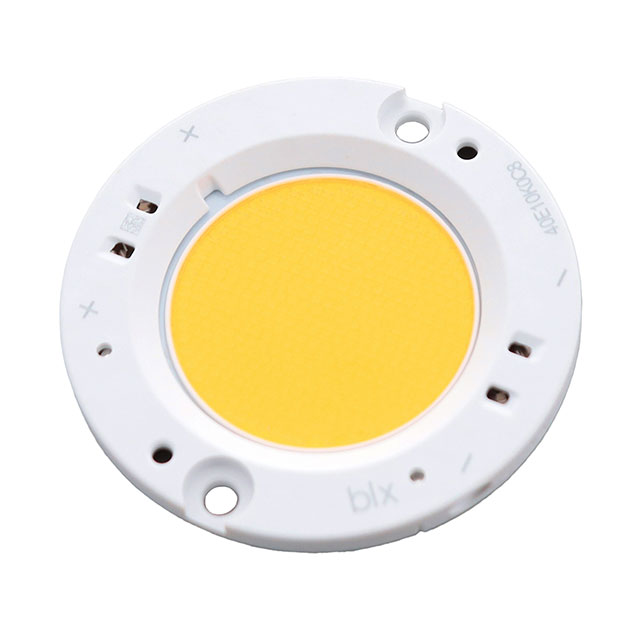

BRIDGELUX BXRC-40E10K0-C-83	1.9 mm	16515 lm	66.7 V	Chip On Board (COB)	Flat	49.2 mm	1.3 A	120 °	4.75 A	29.1 mm	190 lm/W	Round	80	25 °C	4000 K	3-Step MacAdam Ellipse	Neutral White
BRIDGELUX BXRC-40G10K0-L-02	1.9 mm	9060 lm	38.6 V	Chip On Board (COB)	Flat	49.2 mm	2.1 A	120 °	4.2 A	29.2 mm	112 lm/W	Round	90	25 °C	4000 K	2-Step MacAdam Ellipse	Neutral White	With Connector
BRIDGELUX BXRC-40A1001-D-73-SE	3.6 mm	1057 lm	25.3 V	Chip On Board (COB)	Flat	30.8 mm	350 mA	120 °	700 mA	9.9 mm	119 lm/W	Round	93	85 °C	4000 K	3-Step MacAdam Ellipse	Neutral White
BRIDGELUX BXRC-40E2000-C-83-SE	3.6 mm	3006 lm	33.4 V	Chip On Board (COB)	Flat	36.2 mm	500 mA	120 °	1.75 A	13.3 mm	180 lm/W	Round	80	25 °C	4000 K	3-Step MacAdam Ellipse	Neutral White

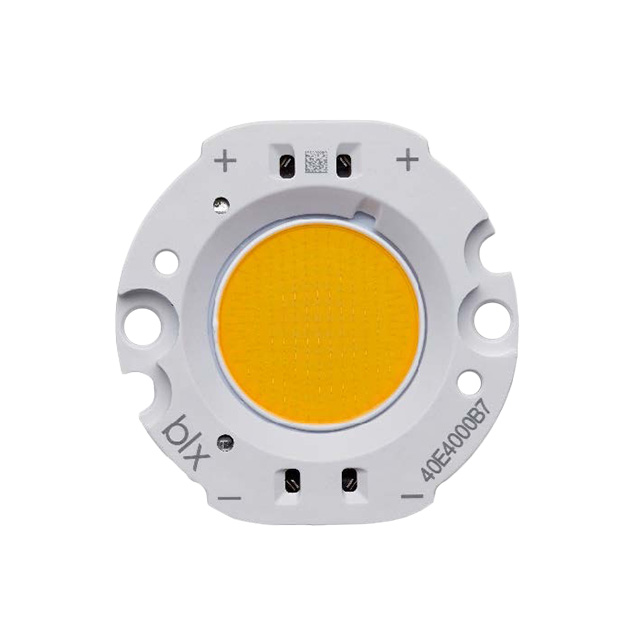

BRIDGELUX BXRC-40E4000-C-72-SE	3.6 mm	5973 lm	33.9 V	Chip On Board (COB)	Flat	36.2 mm	1.17 A	120 °	2.1 A	18.4 mm	151 lm/W	Round	80	85 °C	4000 K	2-Step MacAdam Ellipse	Neutral White
BRIDGELUX BXRC-40G2000-C-02	1.9 mm	1810 lm	32.5 V	Chip On Board (COB)	Flat	36.2 mm	500 mA	120 °	1.05 A	13.2 mm	111 lm/W	Round	90	25 °C	4000 K	2-Step MacAdam Ellipse	Neutral White	With Connector
BRIDGELUX BXRC-40G4000-F-22	1.9 mm	3750 lm	29.5 V	Chip On Board (COB)	Flat	36.2 mm	1.05 A	120 °	2.1 A	18.4 mm	121 lm/W	Round	90	25 °C	4000 K	2-Step MacAdam Ellipse	Neutral White	With Connector
BRIDGELUX BXRC-40E1000-B-72	1.9 mm	1510 lm	34.8 V	Chip On Board (COB)	Flat	20 mm	270 mA	120 °	540 mA	9.9 mm	161 lm/W	Starboard	80	25 °C	4000 K	2-Step MacAdam Ellipse	Neutral White	With Connector
