AD8397 Series

Catalog

OPERATIONAL AMPLIFIER, 2 CHANNELS, 69 MHZ, 53 V/ΜS, 3V TO 24V, ± 1.5V TO ± 12V, NSOIC-EP, 8 PINS

Part	Gain Bandwidth Product	Mounting Type	Output Type	Slew Rate	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Package / Case	Package / Case	Package / Case	Current - Output / Channel [custom]	-3db Bandwidth	Voltage - Supply Span (Min) [Min]	Current - Supply	Current - Input Bias	Amplifier Type	Number of Circuits	Voltage - Input Offset	Voltage - Supply Span (Max) [Max]	Package / Case [y]	Package / Case [x]	Utilized IC / Part	Supplied Contents	Channels per IC	Board Type
Analog Devices AD8397ARDZ	35 MHz	Surface Mount	Rail-to-Rail	53 V/µs	85 °C	-40 °C	8-SOIC-EP	0.154 in	8-SOIC	3.9 mm	310 mA	69 MHz	3 V	11 mA	200 pA	Voltage Feedback	2	1 mV	24 V
Analog Devices AD8397ARDZ-REEL	35 MHz	Surface Mount	Rail-to-Rail	53 V/µs	85 °C	-40 °C	8-SOIC-EP	0.154 in	8-SOIC	3.9 mm	310 mA	69 MHz	3 V	11 mA	200 pA	Voltage Feedback	2	1 mV	24 V
Analog Devices AD8397ARZ-REEL7	35 MHz	Surface Mount	Rail-to-Rail	53 V/µs	85 °C	-40 °C	8-SOIC		8-SOIC		310 mA	69 MHz	3 V	11 mA	200 pA	Voltage Feedback	2	1 mV	24 V	3.9 mm	0.154 in

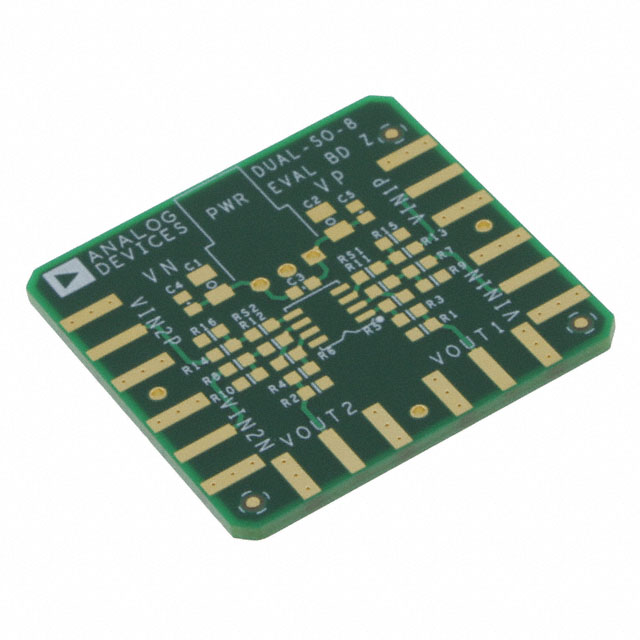

Analog Devices AD8397ARD-EBZ																Voltage Feedback						8-SOIC Package	Board(s)	2 - Dual	Bare (Unpopulated)
Analog Devices AD8397ARZ-REEL	35 MHz	Surface Mount	Rail-to-Rail	53 V/µs	85 °C	-40 °C	8-SOIC		8-SOIC		310 mA	69 MHz	3 V	11 mA	200 pA	Voltage Feedback	2	1 mV	24 V	3.9 mm	0.154 in
Analog Devices AD8397ARZ	35 MHz	Surface Mount	Rail-to-Rail	53 V/µs	85 °C	-40 °C	8-SOIC		8-SOIC		310 mA	69 MHz	3 V	11 mA	200 pA	Voltage Feedback	2	1 mV	24 V	3.9 mm	0.154 in
