ATZB-X0 Series

Catalog

RF TXRX MOD 802.15.4 CHIP SMD

Part	Frequency	Utilized IC / Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Size	Data Rate	Package / Case	Antenna Type	Protocol	Current - Receiving [Max]	Current - Receiving [Min]	Power - Output	Current - Transmitting	Sensitivity	Serial Interfaces	RF Family/Standard	Current - Transmitting [Min]	Current - Transmitting [Max]
Microchip Technology ATZB-X0-256-4-0-CN	900 MHz	AT86RF212B	85 °C	-40 °C	Surface Mount	3.6 V	1.8 V	4 kB 16 kB 256 kB	1 Mbps	Module	Integrated Chip	Zigbee®	14.5 mA	8.7 mA	11 dBm	34.8 mA	-103 dBm	ISP JTAG SPI UART USART	802.15.4
Microchip Technology ATZB-X0-256-4-0-CNR	900 MHz	AT86RF212B	85 °C	-40 °C	Surface Mount	3.6 V	1.8 V	4 kB 16 kB 256 kB	1 Mbps	Module	Integrated Chip	Zigbee®	14.5 mA	8.7 mA	11 dBm	34.8 mA	-103 dBm	ISP JTAG SPI UART USART	802.15.4

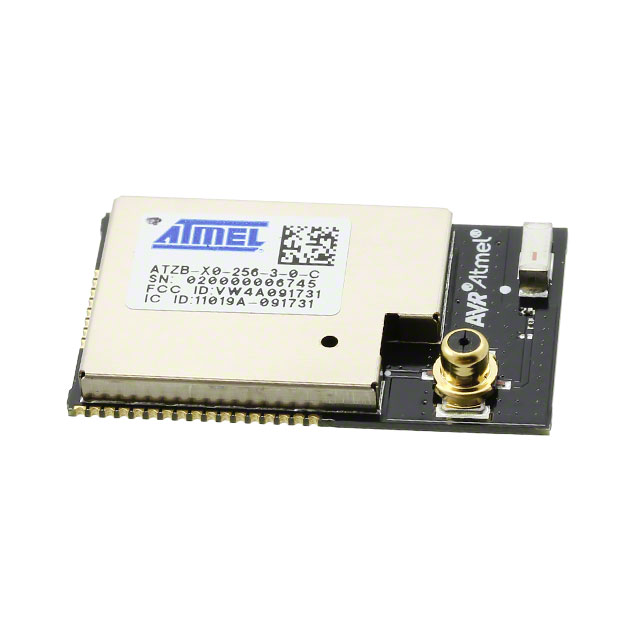

Microchip Technology ATZB-X0-256-3-0-CR	2.4 GHz	AT86RF233	85 °C	-40 °C	Surface Mount	3.6 V	1.8 V	4 kB 16 kB 256 kB	2 Mbps	Module	Integrated Chip	Zigbee®	17 mA	6.1 mA	4 dBm			ISP JTAG SPI UART USART	802.15.4	5.6 mA	20.5 mA
Microchip Technology ATZB-X0-256-3-0-C	2.4 GHz	AT86RF233	85 °C	-40 °C	Surface Mount	3.6 V	1.8 V	4 kB 16 kB 256 kB	2 Mbps	Module	Integrated Chip	Zigbee®	17 mA	6.1 mA	4 dBm			ISP JTAG SPI UART USART	802.15.4	5.6 mA	20.5 mA
