C4065 Series
Manufacturer: Prysmian Group
Beta
⌘K

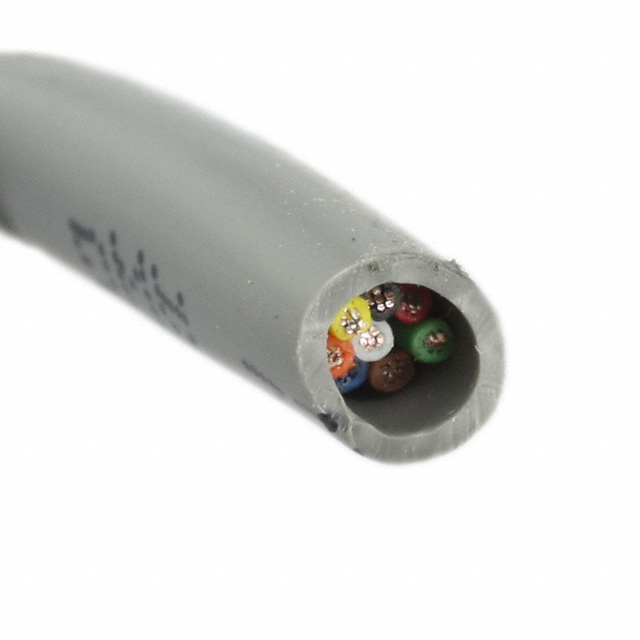

CABLE 8COND 22AWG GRAY
| Part | Conductor Insulation | Number of Conductors [custom] | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Poly-Vinyl Chloride (PVC) | 8 | Communication Control | 0.813 mm | 0.032 in | Copper Tinned | 30 AWG | 7 | 300 VDC | Multi-Conductor | 5.94 mm | 0.234 in | Poly-Vinyl Chloride (PVC) | Gray | 80 °C | -20 ░C | 152.4 m | 500 ft | 22 AWG |
Prysmian Group | Poly-Vinyl Chloride (PVC) | 8 | Communication Control | 0.813 mm | 0.032 in | Copper Tinned | 30 AWG | 7 | 300 VDC | Multi-Conductor | 5.94 mm | 0.234 in | Poly-Vinyl Chloride (PVC) | Gray | 80 °C | -20 ░C | 304.8 m | 1000 ft | 22 AWG |
Prysmian Group | Poly-Vinyl Chloride (PVC) | 8 | Communication Control | 0.813 mm | 0.032 in | Copper Tinned | 30 AWG | 7 | 300 VDC | Multi-Conductor | 5.94 mm | 0.234 in | Poly-Vinyl Chloride (PVC) | Gray | 80 °C | -20 ░C | 15.24 m 304.8 m | 50 ft 1000 ft | 22 AWG |
Prysmian Group | Poly-Vinyl Chloride (PVC) | 8 | Communication Control | 0.813 mm | 0.032 in | Copper Tinned | 30 AWG | 7 | 300 VDC | Multi-Conductor | 5.94 mm | 0.234 in | Poly-Vinyl Chloride (PVC) | Gray | 80 °C | -20 ░C | 152.4 m | 500 ft | 22 AWG |
