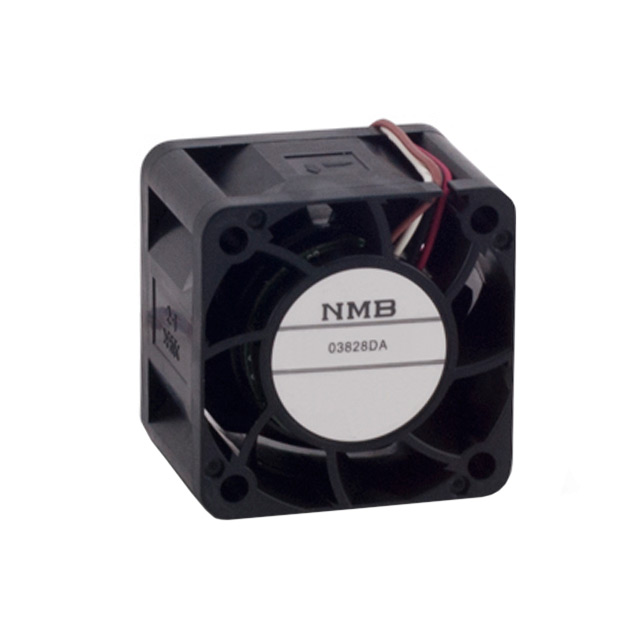

03828DA Series
Manufacturer: NMB TECHNOLOGIES
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

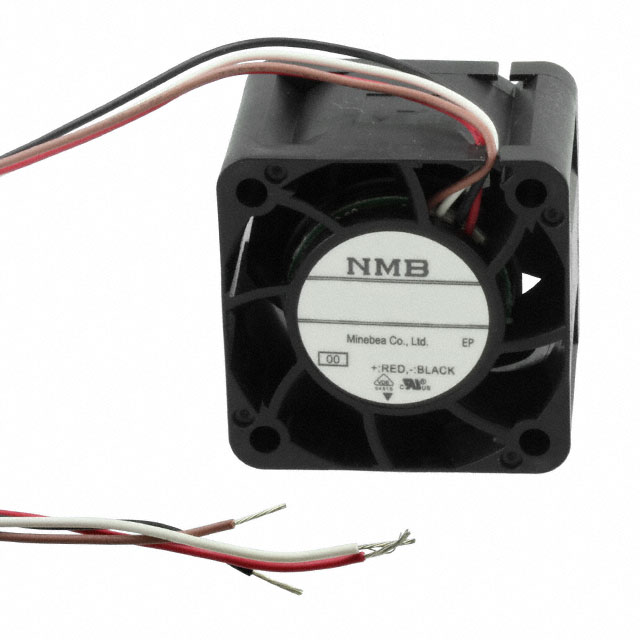

FAN AXIAL 38X28MM 12VDC WIRE
| Part | RPM | Power (Watts) | Termination Leads Count | Termination Type | Termination | Air Flow | Bearing Type | Width | Operating Temperature (Max) | Operating Temperature (Min) | Weight | Static Pressure | Size / Dimension Length | Size / Dimension Shape | Size / Dimension Height | Approval Agency | Noise | Voltage - Rated | Fan Type | Features | Material - Frame | Voltage Range (Min) | Voltage Range (Max) | Material - Blade | Lifetime | Current Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 20000 RPM | 5.9 W | 4 leads | Wire Leads | 4 Wire Leads | 19.4 CFM | Ball | 28 mm | 158 °F | 14 °F | 0.104 lb | 2.16 in H2O | 38 mm | Square | 38 mm | cUL UL VDE | 55 dB | 12 VAC | Tubeaxial | Auto Restart PWM Control Speed Sensor (Tach) | Plastic | 7 V | 13.2 VDC | Plastic | 70000 Hrs | 490 mA |
 NMB TECHNOLOGIES | 22000 RPM | 7.56 W | 4 leads | Wire Leads | 4 Wire Leads | 21.5 CFM | Ball | 28 mm | 158 °F | 14 °F | 2.61 in H2O | 38 mm | Square | 38 mm | 58 dB | 12 VAC | Tubeaxial | Auto Restart PWM Control Speed Sensor (Tach) | Plastic | 7 V | 13.2 VDC | Plastic | 70000 Hrs | 0.63 A |
