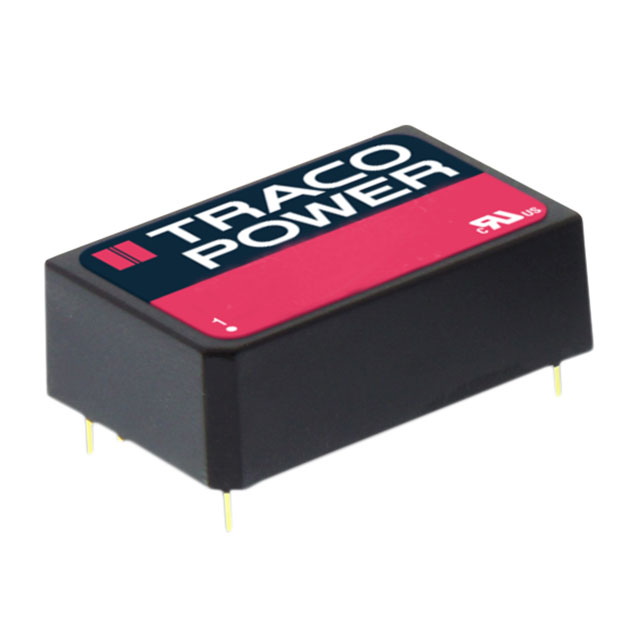

THP 3 Series

Catalog

DC DC CONVERTER +/-15V 3W

Part	Voltage - Isolation	Features	Type	Current - Output (Max)	Current - Output (Max)	Voltage - Output 1	Voltage - Output 2	Efficiency	Applications	Voltage - Input (Min) [Min]	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Number of Outputs	Power (Watts)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max) [Max]
Traco Power THP 3-2423	3000 V	SCP	Isolated Module	100 mA	100 mA	15 V	-15 V	83 %	ITE (Commercial) Medical	9 V	24-DIP Module 5 Leads	1.25 in	0.8 "	31.8 mm	20.3 mm	10.5 mm	0.41 in	2	3 W	Through Hole	-40 °C	85 °C
Traco Power THP 3-4823	3000 V	SCP	Isolated Module	100 mA	100 mA	15 V	-15 V	83 %	ITE (Commercial) Medical	18 V	24-DIP Module 6 Leads	1.25 in	0.8 "	31.8 mm	20.3 mm	10.5 mm	0.41 in	2	3 W	Through Hole	-40 °C	85 °C	80 V
Traco Power THP 3-4822	3000 V	SCP	Isolated Module			12 V	-12 V	83 %	ITE (Commercial) Medical	18 V	24-DIP Module 5 Leads	1.25 in	0.8 "	31.8 mm	20.3 mm	10.5 mm	0.41 in	2	3 W	Through Hole	-40 °C	85 °C	80 V	125 mA
Traco Power THP 3-4812	3000 V	SCP	Isolated Module			12 V		83 %	ITE (Commercial) Medical	18 V	24-DIP Module 5 Leads	1.25 in	0.8 "	31.8 mm	20.3 mm	10.5 mm	0.41 in	1	3 W	Through Hole	-40 °C	85 °C	80 V		250 mA
Traco Power THP 3-4811	3000 V	SCP	Isolated Module			5 V		78 %	ITE (Commercial) Medical	18 V	24-DIP Module 5 Leads	1.25 in	0.8 "	31.8 mm	20.3 mm	10.5 mm	0.41 in	1	3 W	Through Hole	-40 °C	85 °C	80 V		600 mA
