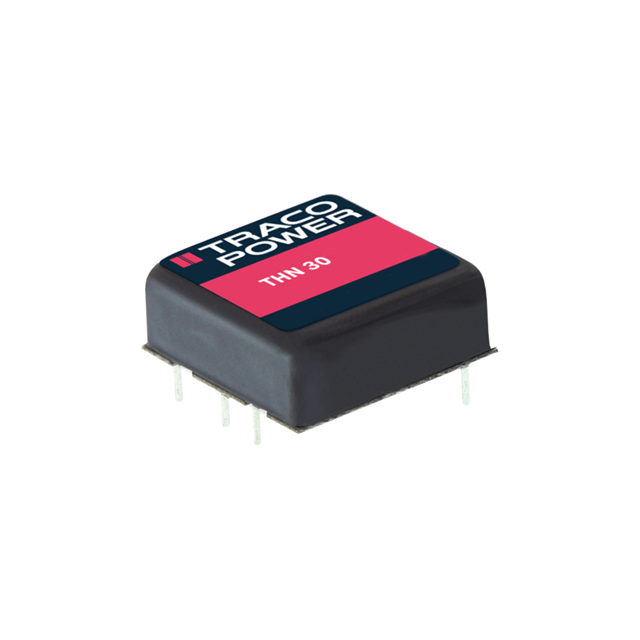

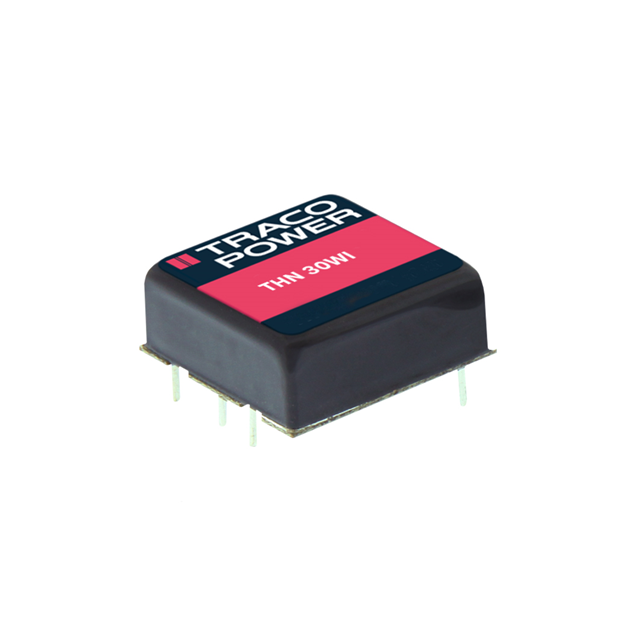

THN 30 Series
Manufacturer: Traco Power
Beta
⌘K
MODULE DC-DC 48VIN 1-OUT 5V 6A 30W 6-PIN
| Part | Type | Voltage - Input (Min) [Min] | Mounting Type | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Output 1 | Voltage - Isolation | Power (Watts) | Number of Outputs | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Efficiency | Voltage - Input (Max) [Max] | Features | Applications | Approval Agency | Current - Output (Max) | Voltage - Output 2 | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | Isolated Module | 36 V | Through Hole | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 5 V | 1.5 kV | 30 Watts | 1 | 6-DIP Module | 80 ¯C | -40 °C | 6 A | 89 % | 75 V | OTP OVP Remote On/Off SCP | ITE (Commercial) | ||||
 Traco Power | Isolated Module | 9 V | Through Hole | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 24 V | 1.5 kV | 30 Watts | 1 | 6-DIP Module | 80 ¯C | -40 °C | 1.25 A | 89 % | 18 V | OTP OVP Remote On/Off SCP | ITE (Commercial) | ||||
Traco Power | Isolated Module | 36 V | Through Hole | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 15 V | 1.5 kV | 30 Watts | 1 | 6-DIP Module | 80 ¯C | -40 °C | 2 A | 91 % | 75 V | OTP OVP Remote On/Off SCP | ITE (Commercial) | ||||
 Traco Power | Isolated Module | 9 V | Through Hole | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 12 V | 1.5 kV | 30 Watts | 1 | 6-DIP Module | 80 ¯C | -40 °C | 2.5 A | 89 % | 36 V | OTP OVP Remote On/Off SCP UVLO | ITE (Commercial) | CB cURus | |||
Traco Power | Isolated Module | 9 V | Through Hole | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 3.3 V | 1.5 kV | 23 Watts | 1 | 6-DIP Module | 80 ¯C | -40 °C | 7 A | 86 % | 18 V | OTP OVP Remote On/Off SCP | ITE (Commercial) | ||||
Traco Power | Isolated Module | 18 V | Through Hole | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 15 V | 1.5 kV | 30 Watts | 2 | 6-DIP Module | 80 ¯C | -40 °C | 92 % | 75 V | OTP OVP Remote On/Off SCP UVLO | ITE (Commercial) | CB cURus | 1 A | -15 V | ||
Traco Power | Isolated Module | 9 V | Through Hole | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 24 V | 1.5 kV | 30 Watts | 2 | 6-DIP Module | 80 ¯C | -40 °C | 625 mA | 91 % | 36 V | OTP OVP Remote On/Off SCP UVLO | ITE (Commercial) | CB cURus | -24 V | 625 mA | |
Traco Power | Isolated Module | 18 V | Through Hole | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 12 V | 1.5 kV | 30 Watts | 2 | 6-DIP Module | 80 ¯C | -40 °C | 91 % | 75 V | OTP OVP Remote On/Off SCP UVLO | ITE (Commercial) | CB cURus | 1.25 A | -12 V | ||
Traco Power | Isolated Module | 9 V | Through Hole | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 15 V | 1.5 kV | 30 Watts | 2 | 6-DIP Module | 80 ¯C | -40 °C | 90 % | 18 V | OTP OVP Remote On/Off SCP | ITE (Commercial) | 1 A | -15 V | |||
Traco Power | Isolated Module | 36 V | Through Hole | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 12 V | 1.5 kV | 30 Watts | 2 | 6-DIP Module | 80 ¯C | -40 °C | 91 % | 75 V | OTP OVP Remote On/Off SCP | ITE (Commercial) | 1.25 A | -12 V |
