24CW640 Series

Catalog

EEPROM, 64 KBIT, 8K X 8BIT, I2C, 1 MHZ, NSOIC, 8 PINS

Part	Memory Format	Package / Case	Package / Case [y]	Package / Case [x]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Memory Interface	Memory Size	Technology	Memory Type	Access Time	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Memory Organization	Write Cycle Time - Word, Page	Package / Case [custom]	Package / Case [custom]
Microchip Technology 24CW640T-I/SN	EEPROM	8-SOIC	3.9 mm	0.154 in	85 °C	-40 °C	Surface Mount	I2C	64 Kbit	EEPROM	Non-Volatile	450 ns	1.6 V	5.5 V	8-SOIC	8 K	5 ms
Microchip Technology 24CW640T-I/Q4B	EEPROM	8-UFDFN Exposed Pad			85 °C	-40 °C	Surface Mount	I2C	64 Kbit	EEPROM	Non-Volatile	450 ns	1.6 V	5.5 V	8-UDFN (2x3)	8 K	5 ms

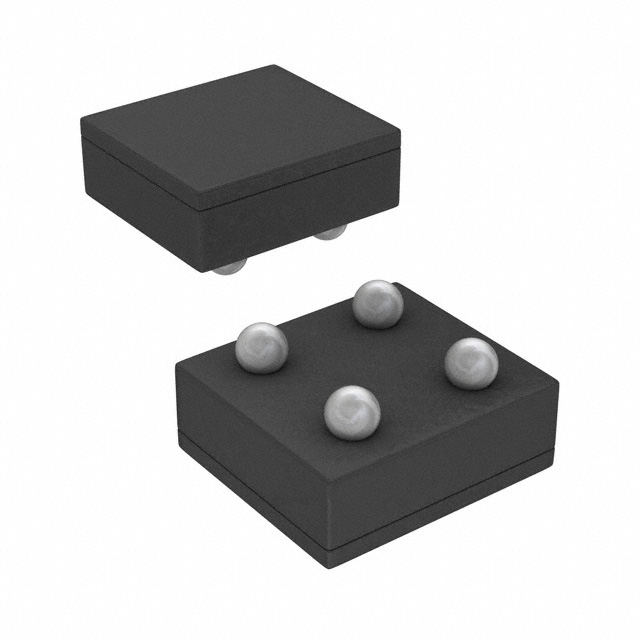

Microchip Technology 24CW640T-I/CS1668	EEPROM	4-XFBGA CSPBGA			85 °C	-40 °C	Surface Mount	I2C	64 Kbit	EEPROM	Non-Volatile	450 ns	1.6 V	5.5 V	4-CSP	8 K	5 ms
Microchip Technology 24CW640-I/SN	EEPROM	8-SOIC	3.9 mm	0.154 in	85 °C	-40 °C	Surface Mount	I2C	64 Kbit	EEPROM	Non-Volatile	450 ns	1.6 V	5.5 V	8-SOIC	8 K	5 ms
Microchip Technology 24CW640T-I/CS0668	EEPROM	4-XFBGA CSPBGA			85 °C	-40 °C	Surface Mount	I2C	64 Kbit	EEPROM	Non-Volatile	450 ns	1.6 V	5.5 V	4-CSP	8 K	5 ms
Microchip Technology 24CW640T-E/ST66KVAO	EEPROM	8-TSSOP			125 °C	-40 °C	Surface Mount	I2C	64 Kbit	EEPROM	Non-Volatile	450 ns	1.6 V	5.5 V	8-TSSOP	8 K	5 ms	0.173 "	4.4 mm

Catalog

Key Features

- Internally organized as one 8192 x 8 bit block

- Byte or page writes up to 32 bytes

- Byte or sequential reads within a block

- Self-timed write cycle (5ms maximum) High-Speed I2C Interface

- Industry standard: 1MHz, 400kHz and 100 kHz

- Configurable via the Hardware Address Register (HAR)

- Software write protection via the Write Protection Register (WPR)

- Write current: 1.0 mA maximum at 5.5V

- Read current: 1.0 mA maximum at 5.5V, 1 MHz

- More than one million erase/write cycles

- ESD protection:>4000V RoHS Compliant

- AEC-Q100 Qualified - Grade 1 (-40C to +125C)

Description

The 24CW64X provide 64Kbits of Serial EEPROM utilizing an I2C (2-wire) serial interface. It is organized as 8192 bytes of 8 bits each (8 Kbytes). The 24CW Series is optimized for use in consumer and industrial applications, where reliable and dependable nonvolatile memory storage is essential. The 24CW Series allows up to eight devices to share a common I2C (2-wire) bus and is capable of operation across a broad voltage range (1.6V to 5.5V). The 24CW Series contains a pair of programmable Configuration registers which allow certain device behaviors to be modified. These registers are the Write Protection Register and the Hardware Address Register.
