9A0812 Series

DC Fans DC Axial Fan, 60x60x25mm, 24VDC

Manufacturer: Sanyo Denki America Inc.

Catalog

DC Fans DC Axial Fan, 60x60x25mm, 24VDC

Catalog

DC Fans DC Axial Fan, 60x60x25mm, 24VDC

Part	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Material - Frame	Material - Blade	Lifetime @ Temp.	Termination	Approval Agency	Features	Voltage - Rated	Power (Watts)	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Bearing Type	Air Flow	Air Flow	Weight	Weight	Width [y]	Size / Dimension [z]	Size / Dimension [x]	Static Pressure	Static Pressure	RPM	Operating Temperature [Max]	Operating Temperature [Min]
Sanyo Denki America Inc. 9A0812F4D011	13.8 VDC	6 VDC	110 mA	Plastic	Plastic	40000 Hrs	3 Wire Leads	CSA TUV UL	Locked Rotor Sensor	12 VDC	1.32 W	Tubeaxial	-20 ░C	70 °C	26 dB	Ball	0.91 mł/min	32.5 CFM	0.199 lb	90.26 g	25 mm	80 mm	80 mm	0.114 in H2O	28.4 Pa	2600 RPM
Sanyo Denki America Inc. 9A0812G4011			0.38 A	Plastic	Plastic		3 Wire Leads	CSA TUV UL	Locked Rotor Protection Speed Sensor (Tach)	12 VDC	4.56 W	Tubeaxial	-20 ░C	60 °C	40 dB(A)	Ball	1.48 mł/min	53 CFM	0.199 lb	90.26 g	25 mm	80 mm	80 mm	0.323 in H2O	80.4 Pa	4500 RPM	60 °C	-4 °F
Sanyo Denki America Inc. 9A0812H402	13.8 VDC	6 VDC		Plastic	Plastic	40000 Hrs	2 Wire Leads	CSA TUV UL		12 VDC	1.56 W	Tubeaxial	-20 ░C	70 °C	29 dB(A)	Ball	1.02 m³/min	36.4 CFM	0.199 lb	90.26 g	25 mm	80 mm	80 mm	0.142 in H2O	35.4 Pa	2900 RPM
Sanyo Denki America Inc. 9A0812L4021	13.8 VDC	7 V	60 mA	Plastic	Plastic	40000 Hrs	2 Wire Leads	CSA TUV UL		12 VDC	720 mW	Tubeaxial	-20 ░C	70 °C	20 dB	Ball	0.644 m³/min	23 CFM	0.199 lb	90.26 g	25 mm	80 mm	80 mm	0.059 in H2O	14.7 Pa	1850 RPM
Sanyo Denki America Inc. 9A0812G4D01			0.38 A	Plastic	Plastic		3 Wire Leads	CSA TUV UL	Locked Rotor Sensor	12 VDC	4.56 W	Tubeaxial	-20 ░C	60 °C	40 dB(A)	Ball	1.48 mł/min	53 CFM	0.199 lb	90.26 g	25 mm	80 mm	80 mm	0.323 in H2O	80.4 Pa	4500 RPM	60 °C	-4 °F
Sanyo Denki America Inc. 9A0812H4D011	13.8 VDC	6 VDC		Plastic	Plastic	40000 Hrs	3 Wire Leads	CSA TUV UL	Locked Rotor Sensor	12 VDC	1.56 W	Tubeaxial	-20 ░C	70 °C	29 dB(A)	Ball	1.02 m³/min	36.4 CFM	0.199 lb	90.26 g	25 mm	80 mm	80 mm	0.142 in H2O	35.4 Pa	2900 RPM
Sanyo Denki America Inc. 9A0812M4D011	13.8 VDC	6 VDC	0.09 A	Plastic	Plastic	40000 Hrs	3 Wire Leads	CSA TUV UL	Locked Rotor Sensor	12 VDC	1.08 W	Tubeaxial	-20 ░C	70 °C	23 dB(A)	Ball	0.82 m³/min	29.3 CFM	0.199 lb	90.26 g	25 mm	80 mm	80 mm	0.09 in H2O	22.4 Pa	2350 RPM
Sanyo Denki America Inc. 9A0812S4011	13.8 VDC	6 VDC	0.18 A	Plastic	Plastic	40000 Hrs	3 Wire Leads	CSA TUV UL	Locked Rotor Protection Speed Sensor (Tach)	12 VDC	2.16 W	Tubeaxial	-20 ░C	70 °C	34 dB(A)	Ball			0.199 lb	90.26 g	25 mm	80 mm	80 mm	0.193 in H2O	48.1 Pa	3400 RPM

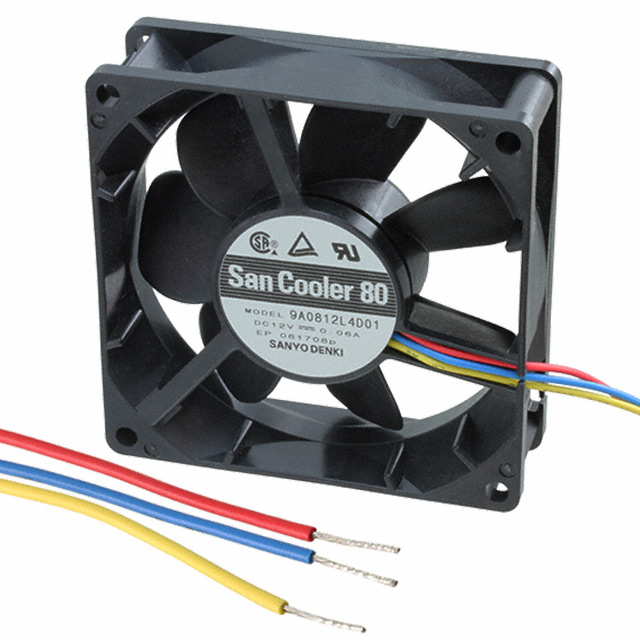

Sanyo Denki America Inc. 9A0812L4D01	13.8 VDC	7 V	60 mA	Plastic	Plastic	40000 Hrs	3 Wire Leads	CSA TUV UL	Locked Rotor Sensor	12 VDC	720 mW	Tubeaxial	-20 ░C	70 °C	20 dB	Ball	0.644 m³/min	23 CFM	0.199 lb	90.26 g	25 mm	80 mm	80 mm	0.059 in H2O	14.7 Pa	1850 RPM
Sanyo Denki America Inc. 9A0812M4021	13.8 VDC	6 VDC	0.09 A	Plastic	Plastic	40000 Hrs	2 Wire Leads	CSA TUV UL		12 VDC	1.08 W	Tubeaxial	-20 ░C	70 °C	23 dB(A)	Ball	0.82 m³/min	29.3 CFM	0.199 lb	90.26 g	25 mm	80 mm	80 mm	0.09 in H2O	22.4 Pa	2350 RPM
