05582 Series

Catalog

CABLE 2COND 18AWG WHITE

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Strand	Conductor Material	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Cable Type	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Wire Gauge	Jacket (Insulation) Material	Length	Length	Usage
Prysmian Group 05582.R8.02	3.25 mm	0.128 in	White	Solid	Copper Bare	2	0.203 mm	0.008 in	100 ft	30.5 m	Multi-Conductor	Poly-Vinyl Chloride (PVC)	-20 ░C	105 ░C	150 V	18 AWG	Poly-Vinyl Chloride (PVC)	15.24 m 152.4 m	50 ft 500 ft	Thermostat
Prysmian Group 05582.44.02	3.61 mm	0.142 in	White	Solid	Copper Annealed Bare	2	0.203 mm	0.008 in			Multi-Conductor	Poly-Vinyl Chloride (PVC)	-20 ░C	105 ░C	150 V	18 AWG	Poly-Vinyl Chloride (PVC)	762 m	2500 ft
Prysmian Group 05582.44.02	3.61 mm	0.142 in	White	Solid	Copper Annealed Bare	2	0.203 mm	0.008 in			Multi-Conductor	Poly-Vinyl Chloride (PVC)	-20 ░C	105 ░C	150 V	18 AWG	Poly-Vinyl Chloride (PVC)	762 m	2500 ft

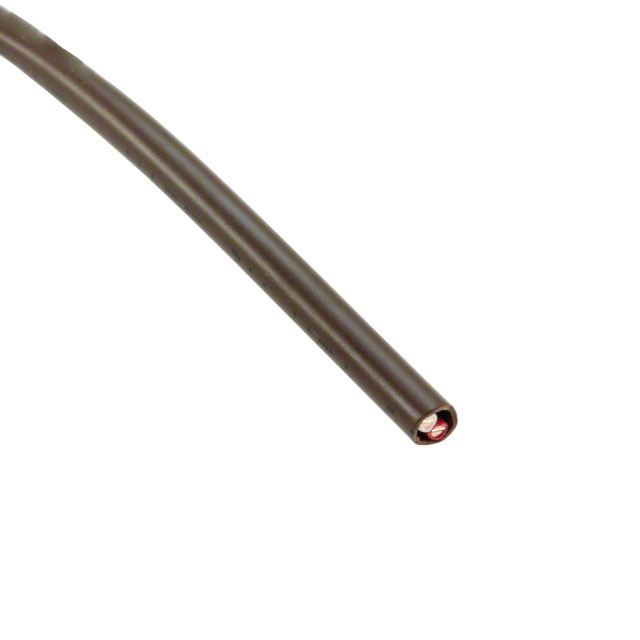

Prysmian Group 05582.18.08	3.61 mm	0.142 in	Brown	Solid	Copper Bare	2	0.203 mm	0.008 in	100 ft	30.5 m	Multi-Conductor	Poly-Vinyl Chloride (PVC)	-20 ░C	105 ░C	150 V	18 AWG	Poly-Vinyl Chloride (PVC)	15.24 m 152.4 m	50 ft 500 ft
Prysmian Group 05582.18.08	3.61 mm	0.142 in	Brown	Solid	Copper Bare	2	0.203 mm	0.008 in	100 ft	30.5 m	Multi-Conductor	Poly-Vinyl Chloride (PVC)	-20 ░C	105 ░C	150 V	18 AWG	Poly-Vinyl Chloride (PVC)	15.24 m 152.4 m	50 ft 500 ft
Prysmian Group 05582.R8.02	3.25 mm	0.128 in	White	Solid	Copper Bare	2	0.203 mm	0.008 in			Multi-Conductor	Poly-Vinyl Chloride (PVC)	-20 ░C	105 ░C	150 V	18 AWG	Poly-Vinyl Chloride (PVC)	15.24 m 152.4 m	50 ft 500 ft	Thermostat
