PL611-01 Series

PicoPLL Programmable Clock

Catalog

PicoPLL Programmable Clock

Part	Frequency - Max [Max]	Ratio - Input:Output [custom]	PLL	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Mounting Type	Output	Number of Circuits	Package / Case	Package / Case [custom]	Package / Case	Type	Input	Divider/Multiplier	Operating Temperature [Max]

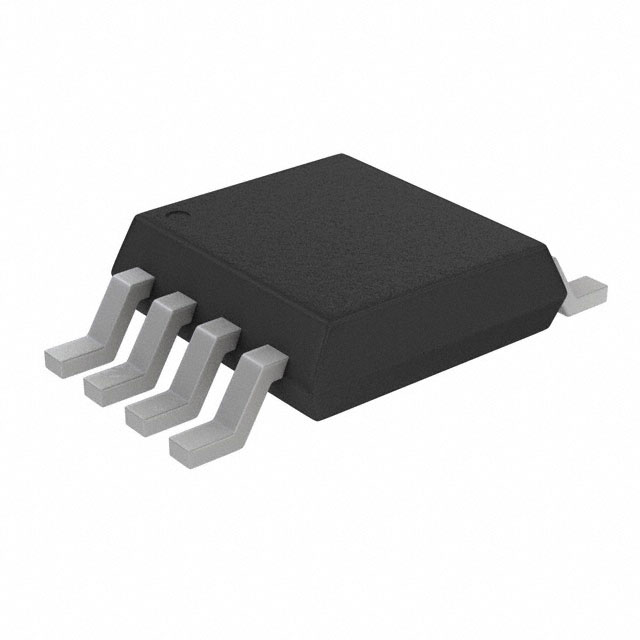

Microchip Technology PL611-01-N12MC	22.579 MHz 24 MHz 24.576 MHz	1:2	Yes with Bypass	3.63 V	2.25 V	8-MSOP	Surface Mount	Clock	1	8-MSOP 8-TSSOP	0.118 in	3 mm	Frequency Synthesizer	Clock	Yes/No	70 °C
Microchip Technology PL611-01-F93TC	27 MHz 60 MHz	1:2	Yes with Bypass	3.63 V	2.25 V	SOT-23-6	Surface Mount	Clock	1	SOT-23-6			Frequency Synthesizer	Clock	Yes/No	70 °C
Microchip Technology PL611-01-N12MC-R	22.579 MHz 24 MHz 24.576 MHz	1:2	Yes with Bypass	3.63 V	2.25 V	8-MSOP	Surface Mount	Clock	1	8-MSOP 8-TSSOP	0.118 in	3 mm	Frequency Synthesizer	Clock	Yes/No	70 °C

Catalog

PicoPLL Programmable Clock

Key Features

• * Advanced programmable PLL design

• * Very low Jitter and Phase Noise (30-70ps Pk-Pk typical)

• * Up to 3 programmable outputs

• * Output frequency up to 200MHz CMOS

• * Fundamental crystal: 10MHz-30MHz

• * 3RD overtone crystal: Up to 75MHz

• * Reference input: Up to 200MHz

• * Accepts <1.0V reference signal input voltage

• * One programmable I/O pin can be configured as Programmable clock, or Frequency Selection input, or output Enable (OE) or Power Down (PDB) input

• * Supply operating range 2.25V to 3.63V

• * Operating temperature range from -40°C to +85°C

• * Available in 8-pin MSOP/SOP, and 6-pin SOT Green/RoHS compliant Packages

Description

[CREATE AND SAMPLE YOUR CUSTOM PL611 HERE](https://clockworks.microchip.com/microchip/design/inputPL611) The PL611-01 is a low-cost general purpose frequency synthesizer and a member of Programmable Clock family. PL611-01 product family offers the versatility of using a single Crystal or Reference Clock input and producing up to three different system clocks. They can generate any output frequency up to 200MHz from fundamental crystal input between 10MHz - 30MHz, or a 3rd overtone crystal of up to 75Mhz, or a Reference clock input of up to 200MHz. Cascading of the ICs to produce additional clock frequencies is also supported.
