DF20G Series

Catalog

CONN HEADER SMD 10POS 1MM

Part	Contact Shape	Mated Stacking Heights	Contact Material	Pitch - Mating	Pitch - Mating	Insulation Color	Number of Positions	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Number of Rows [custom]	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Style	Contact Type	Insulation Height [z]	Insulation Height [z]	Fastening Type	Termination	Insulation Material	Mounting Type	Contact Finish - Mating	Shrouding	Features	Number of Positions Loaded

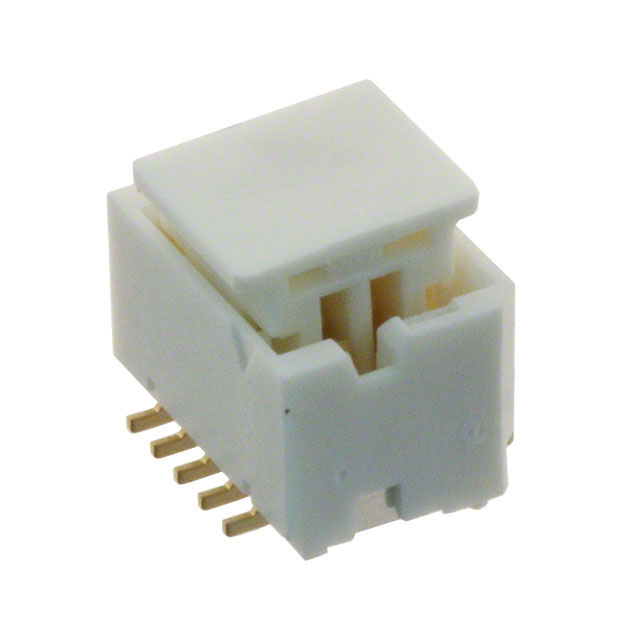

Hirose Electric Co Ltd DF20G-10DP-1V(59)	Rectangular Square	5.8 mm	Phosphor Bronze	1 mm	0.039 in	Natural	10	Header	0.039 in	1 mm	2	100 V	85 °C	-35 °C	UL94 V-0	Board to Cable/Wire	Male Pin	0.181 in	4.6 mm	Push-Pull	Solder	Nylon Polyamide (PA)	Surface Mount	Gold	Shrouded - 4 Wall	Board Guide Pick and Place	All
Hirose Electric Co Ltd DF20G-20DP-1V(55)	Rectangular Square	5.8 mm	Phosphor Bronze	1 mm	0.039 in	Natural	20	Header	0.039 in	1 mm	2	100 V	85 °C	-35 °C	UL94 V-0	Board to Cable/Wire	Male Pin	0.181 in	4.6 mm	Push-Pull	Solder	Nylon Polyamide (PA)	Surface Mount	Gold	Shrouded - 4 Wall	Board Guide Pick and Place	All

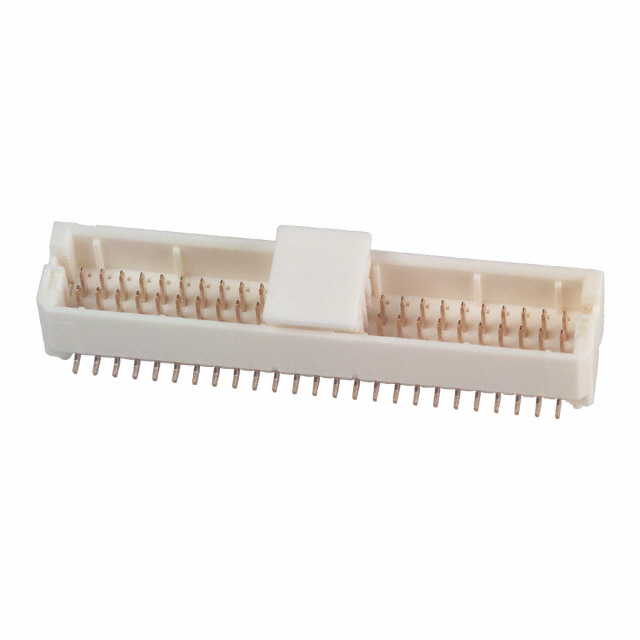

Hirose Electric Co Ltd DF20G-50DP-1V(56)	Rectangular Square	5.8 mm	Phosphor Bronze	1 mm	0.039 in	Natural	50	Header	0.039 in	1 mm	2	100 V	85 °C	-35 °C	UL94 V-0	Board to Cable/Wire	Male Pin	0.181 in	4.6 mm	Push-Pull	Solder	Nylon Polyamide (PA)	Surface Mount	Gold	Shrouded - 4 Wall	Board Guide Pick and Place Solder Retention	All
Hirose Electric Co Ltd DF20G-20DP-1V(59)	Rectangular Square	5.8 mm	Phosphor Bronze	1 mm	0.039 in	Natural	20	Header	0.039 in	1 mm	2	100 V	85 °C	-35 °C	UL94 V-0	Board to Cable/Wire	Male Pin	0.181 in	4.6 mm	Push-Pull	Solder	Nylon Polyamide (PA)	Surface Mount	Gold	Shrouded - 4 Wall	Board Guide Pick and Place	All
Hirose Electric Co Ltd DF20G-50DP-1V(59)	Rectangular Square	5.8 mm	Phosphor Bronze	1 mm	0.039 in	Natural	50	Header	0.039 in	1 mm	2	100 V	85 °C	-35 °C	UL94 V-0	Board to Cable/Wire	Male Pin	0.181 in	4.6 mm	Push-Pull	Solder	Nylon Polyamide (PA)	Surface Mount	Gold	Shrouded - 4 Wall	Board Guide Pick and Place	All

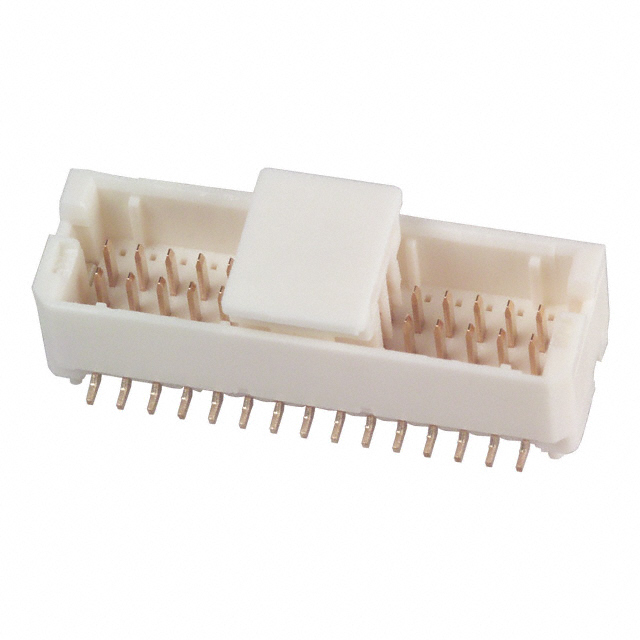

Hirose Electric Co Ltd DF20G-30DP-1V(56)	Rectangular Square	5.8 mm	Phosphor Bronze	1 mm	0.039 in	Natural	30	Header	0.039 in	1 mm	2	100 V	85 °C	-35 °C	UL94 V-0	Board to Cable/Wire	Male Pin	0.181 in	4.6 mm	Push-Pull	Solder	Nylon Polyamide (PA)	Surface Mount	Gold	Shrouded - 4 Wall	Board Guide Pick and Place Solder Retention	All
Hirose Electric Co Ltd DF20G-30DP-1V(55)	Rectangular Square	5.8 mm	Phosphor Bronze	1 mm	0.039 in	Natural	30	Header	0.039 in	1 mm	2	100 V	85 °C	-35 °C	UL94 V-0	Board to Cable/Wire	Male Pin	0.181 in	4.6 mm	Push-Pull	Solder	Nylon Polyamide (PA)	Surface Mount	Gold	Shrouded - 4 Wall	Board Guide Pick and Place	All
Hirose Electric Co Ltd DF20G-30DP-1V(90)
Hirose Electric Co Ltd DF20G-40DP-1V(59)	Rectangular Square	5.8 mm	Phosphor Bronze	1 mm	0.039 in	Natural	40	Header	0.039 in	1 mm	2	100 V	85 °C	-35 °C	UL94 V-0	Board to Cable/Wire	Male Pin	0.181 in	4.6 mm	Push-Pull	Solder	Nylon Polyamide (PA)	Surface Mount	Gold	Shrouded - 4 Wall	Board Guide Pick and Place	All
Hirose Electric Co Ltd DF20G-40DP-1V(55)	Rectangular Square	5.8 mm	Phosphor Bronze	1 mm	0.039 in	Natural	40	Header	0.039 in	1 mm	2	100 V	85 °C	-35 °C	UL94 V-0	Board to Cable/Wire	Male Pin	0.181 in	4.6 mm	Push-Pull	Solder	Nylon Polyamide (PA)	Surface Mount	Gold	Shrouded - 4 Wall	Board Guide Pick and Place	All
