FF600R12 Series

Manufacturer: INFINEON

Catalog

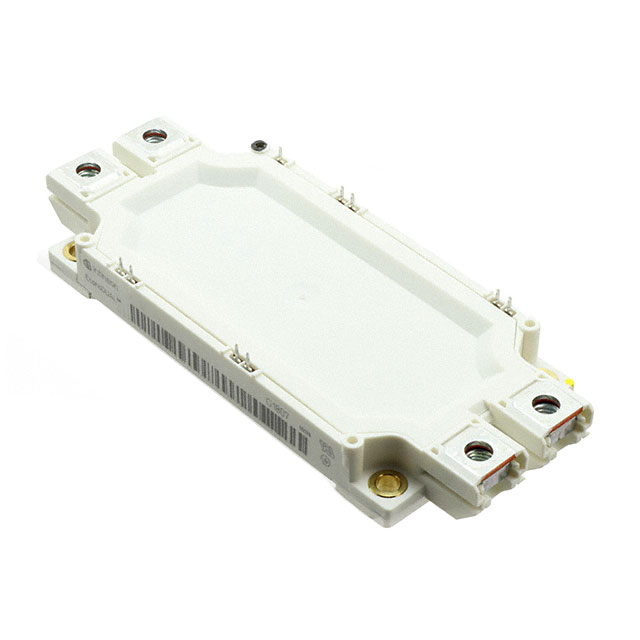

THE FF600R12ME4C IS A DUAL IGBT4 - E4 MODULE IN A ECONODUAL™ 3 HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 600 A.

Part	Operating Temperature [Min]	Operating Temperature [Max]	Input Capacitance (Cies) @ Vce	Input	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	IGBT Type	Configuration	Current - Collector Cutoff (Max) [Max]	Power - Max [Max]	Vce(on) (Max) @ Vge, Ic [Max]	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	Mounting Type	Vce(on) (Max) @ Vge, Ic
INFINEON FF600R12ME4CBOSA1	-40 °C	150 °C	37 nF	Standard	Module	1200 V	Trench Field Stop	Half Bridge	3 mA	4050 W	2.1 V	1060 A	Module	Chassis Mount
INFINEON FF600R12ME4CPBPSA1	-40 °C	150 °C	37 nF	Standard	Module	1200 V	Trench Field Stop	Half Bridge Inverter	3 mA	4050 W	2.1 V	1060 A	AG-ECONOD	Chassis Mount
INFINEON FF600R12ME4EB11BOSA1	-40 C	150 °C	37 nF	Standard	Module	1200 V	Trench Field Stop	Half Bridge	3 mA	4050 W	2.1 V	995 A	Module	Chassis Mount
INFINEON FF600R12ME4PBOSA1
INFINEON FF600R12ME4AB11BOSA1	-40 C	150 °C	37 nF	Standard	Module	1200 V	Trench Field Stop	2 Independent	3 mA	3350 W	2.1 V		Module	Chassis Mount
INFINEON FF600R12ME4PB11BOSA1
INFINEON FF600R12KE4BOSA1	-40 C	150 °C	38 nF	Standard	Module	1200 V	Trench Field Stop	Half Bridge	5 mA			600 A	Module	Chassis Mount	2.2 V
INFINEON FF600R12KE4PBOSA1	-40 °C	150 °C	38 nF	Standard	Module	1200 V	Trench Field Stop	2 Independent	5 mA			600 A	AG-62MM-1	Chassis Mount	2.2 V
INFINEON FF600R12KE3NOSA1	-40 C	125 °C		Standard	Module	1200 V		2 Independent	5 mA	2800 W		850 A	Module	Chassis Mount	2.15 V
INFINEON FF600R12IS4FBOSA1	-40 C	125 °C	39 nF	Standard	Module	1200 V		2 Independent	5 mA	3700 W		600 A	Module	Chassis Mount	3.75 V
