E2262S Series
Manufacturer: Prysmian Group
Beta
⌘K

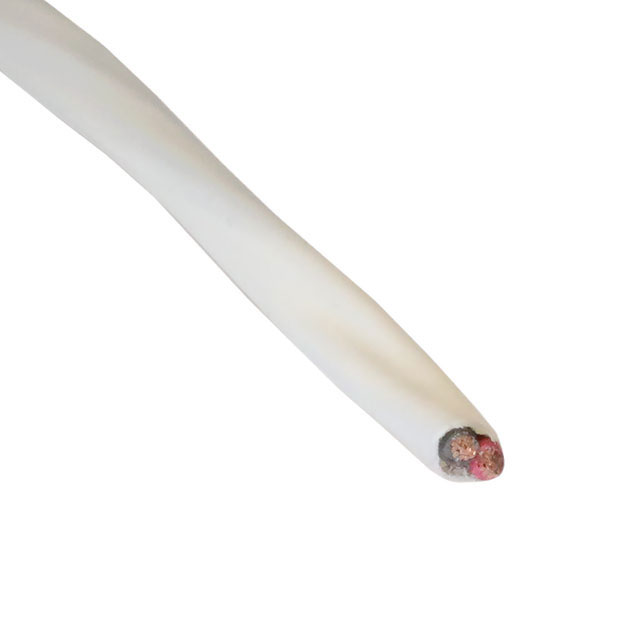

CABLE 2COND 12AWG NAT SHLD 25'
| Part | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Features | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Usage | Wire Gauge | Length [x] | Length [x] | Number of Conductors | Conductor Material | Voltage | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [diameter] | Jacket Color | Shield Material | Shield Coverage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 0.279 mm | 0.011 " | 15.24 m 304.8 m | 50 ft 1000 ft | Drain Wire | Multi-Conductor | 75 ░C | 0 °C | Foil | Alarm Security Sound | 12 AWG | 25 ft 100 ft | 7.62 m 30.5 m | 2 | Copper Bare | 300 VDC | Plenum Poly-Vinyl Chloride (PVC) | 0.244 in | 6.2 mm | Poly-Vinyl Chloride (PVC) | 19 | 0.0185 " | Natural | ||
Prysmian Group | 0.279 mm | 0.011 " | 15.24 m 304.8 m | 50 ft 1000 ft | Drain Wire | Multi-Conductor | 75 ░C | 0 °C | Foil | Alarm Security Sound | 12 AWG | 25 ft 100 ft | 7.62 m 30.5 m | 2 | Copper Bare | 300 VDC | Plenum Poly-Vinyl Chloride (PVC) | 0.244 in | 6.2 mm | Poly-Vinyl Chloride (PVC) | 19 | 0.0185 " | Natural | Flexfoil® FlexfoilÛ | 100 % |
