892-098 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 98POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Number of Rows [custom]	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Pitch	Pitch	Color	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Gender	Card Type	Read Out	Number of Positions/Bay/Row	Contact Material	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Features
EDAC Inc. 892-098-542-203	2	Polyphenylene Sulfide (PPS)	2	Wire Wrap	0.25 Ám	10 Áin	Gold	98	0.1 "	2.54 mm	Black	125 °C	-40 C	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Female	Non Specified - Dual Edge	Dual	49	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole

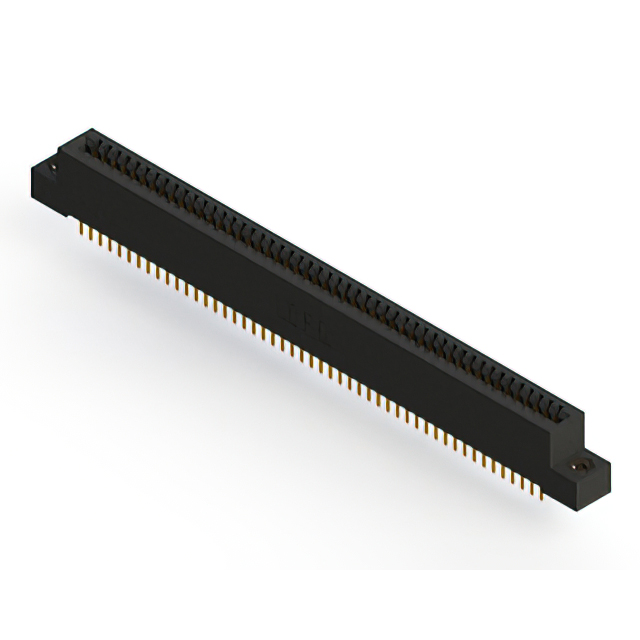

EDAC Inc. 892-098-521-208	2	Polyphenylene Sulfide (PPS)	2	Solder	0.25 Ám	10 Áin	Gold	98	0.1 "	2.54 mm	Black	125 °C	-40 C		4-40 Flush Mount Threaded Insert Top Opening		Female	Non Specified - Dual Edge	Dual	49	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole

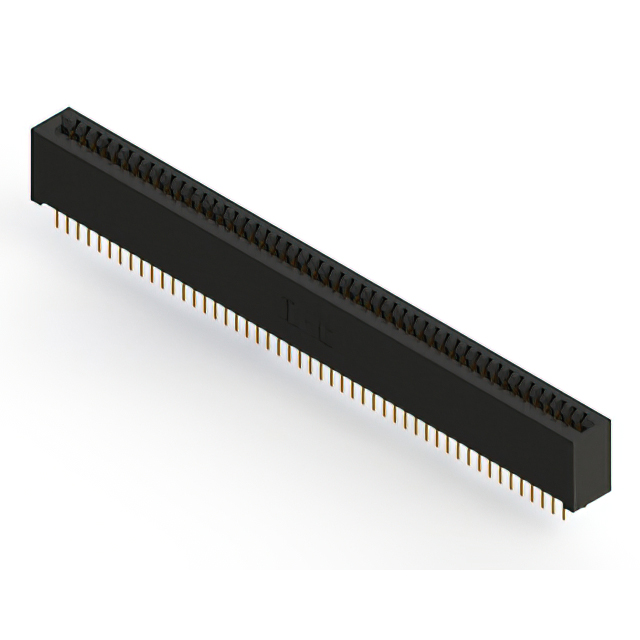

EDAC Inc. 892-098-524-201	2	Polyphenylene Sulfide (PPS)	2	Solder	0.25 Ám	10 Áin	Gold	98	0.1 "	2.54 mm	Black	125 °C	-40 C				Female	Non Specified - Dual Edge	Dual	49	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
EDAC Inc. 892-098-560-204	2	Polyphenylene Sulfide (PPS)	2	Solder	0.25 Ám	10 Áin	Gold	98	0.1 "	2.54 mm	Black	125 °C	-40 C	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Female	Non Specified - Dual Edge	Dual	49	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	Card Extender
EDAC Inc. 892-098-520-201	2	Polyphenylene Sulfide (PPS)	2	Solder	0.25 Ám	10 Áin	Gold	98	0.1 "	2.54 mm	Black	125 °C	-40 C				Female	Non Specified - Dual Edge	Dual	49	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
EDAC Inc. 892-098-541-204	2	Polyphenylene Sulfide (PPS)	2	Wire Wrap	0.25 Ám	10 Áin	Gold	98	0.1 "	2.54 mm	Black	125 °C	-40 C	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Female	Non Specified - Dual Edge	Dual	49	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
EDAC Inc. 892-098-541-203	2	Polyphenylene Sulfide (PPS)	2	Wire Wrap	0.25 Ám	10 Áin	Gold	98	0.1 "	2.54 mm	Black	125 °C	-40 C	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Female	Non Specified - Dual Edge	Dual	49	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
EDAC Inc. 892-098-523-212	2	Polyphenylene Sulfide (PPS)	2	Solder	0.25 Ám	10 Áin	Gold	98	0.1 "	2.54 mm	Black	125 °C	-40 C	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Female	Non Specified - Dual Edge	Dual	49	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
EDAC Inc. 892-098-540-208	2	Polyphenylene Sulfide (PPS)	2	Wire Wrap	0.25 Ám	10 Áin	Gold	98	0.1 "	2.54 mm	Black	125 °C	-40 C		4-40 Flush Mount Threaded Insert Top Opening		Female	Non Specified - Dual Edge	Dual	49	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
EDAC Inc. 892-098-558-204	2	Polyphenylene Sulfide (PPS)	2	Solder	0.25 Ám	10 Áin	Gold	98	0.1 "	2.54 mm	Black	125 °C	-40 C	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Female	Non Specified - Dual Edge	Dual	49	Copper Alloy	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole
