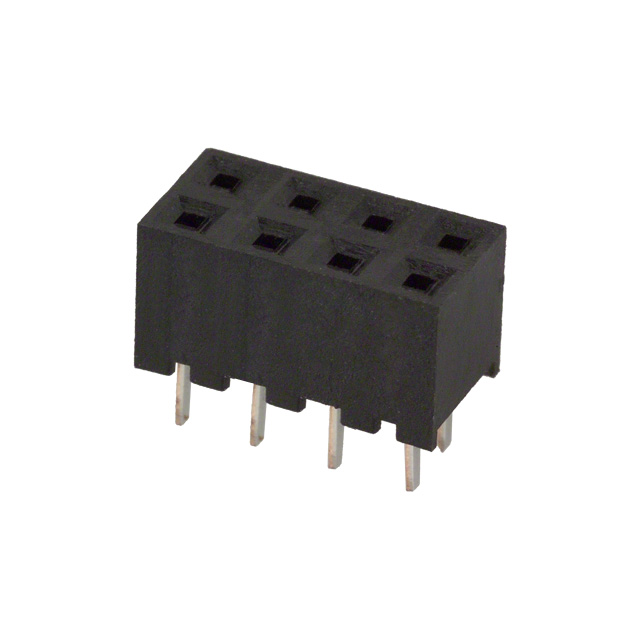

A3C-8DA Series

Catalog

CONN RCPT 8POS 0.079 GOLD PCB

Part	Contact Material	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Number of Rows [custom]	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Contact Type	Pitch - Mating	Pitch - Mating	Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Insulation Color	Mated Stacking Heights	Contact Finish - Mating	Termination	Number of Positions	Fastening Type	Insulation Height	Insulation Height	Number of Positions Loaded	Mounting Type
Hirose Electric Co Ltd A3C-8DA-2DSA	Phosphor Bronze	General Purpose Telecommunications	39.4 çin	1 çm	Square	Polybutylene Terephthalate (PBT)	2	UL94 V-0	2 mm	0.079 in	Receptacle	Female Socket	0.079 "	2 mm	Board to Board Cable	-55 C	85 °C	0.118 in	3 mm	200 VAC	8 µin	0.203 µm	Tin	Black	5.1 mm 6 mm	Gold	Solder	8	Push-Pull	0.165 in	4.2 mm	All	Through Hole

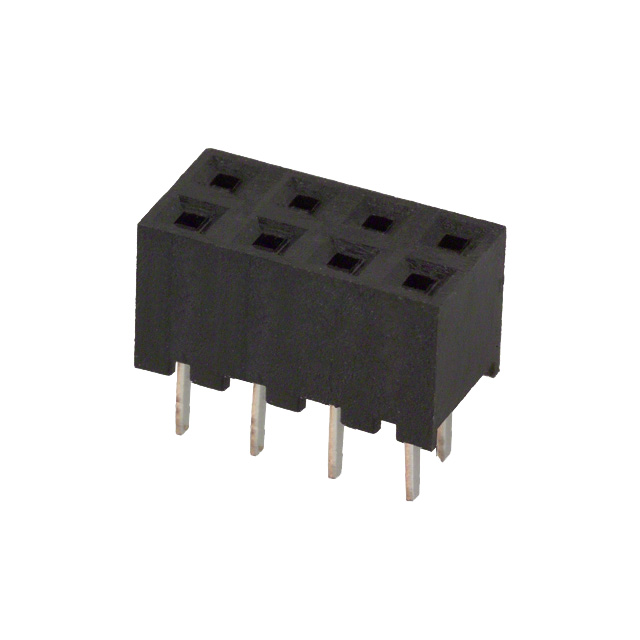

Hirose Electric Co Ltd A3C-8DA-2DSA(71)	Phosphor Bronze	General Purpose Telecommunications	39.4 çin	1 çm	Square	Polybutylene Terephthalate (PBT)	2	UL94 V-0	2 mm	0.079 in	Receptacle	Female Socket	0.079 "	2 mm	Board to Board Cable	-55 C	85 °C	0.118 in	3 mm	200 VAC	8 µin	0.203 µm	Tin	Black	5.1 mm 6 mm	Gold	Solder	8	Push-Pull	0.165 in	4.2 mm	All	Through Hole
