C8132 Series
Manufacturer: Prysmian Group
Beta
⌘K

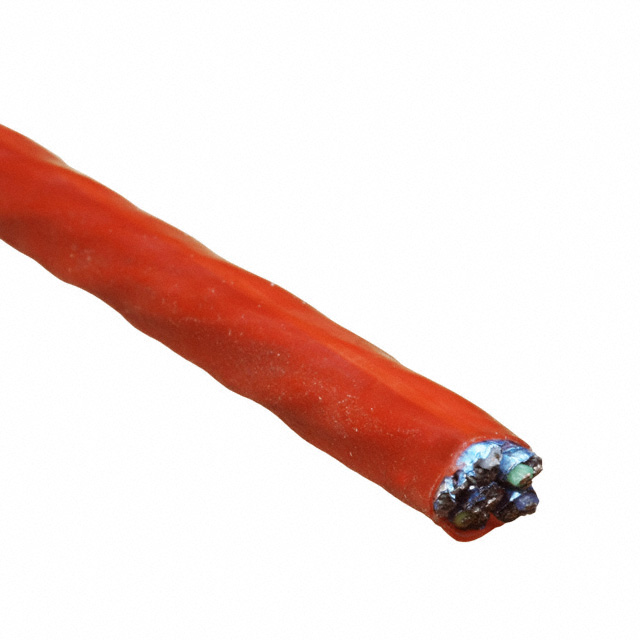

MULTI-PAIR 12COND 22AWG RED 100'
| Part | Shield Coverage | Shield Material | Wire Gauge | Number of Conductors | Length [x] | Length [x] | Features | Cable Type | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Conductor Material | Voltage | Ratings | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Jacket Color | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 100 % | Flexfoil® | 22 AWG | 12 | 100 ft | 30.5 m | Drain Wire Flame Retardant | Multi-Pair | Fluorinated Ethylene-Propylene (FEP) | 30 AWG | 7 | Communication Control | Copper Annealed Tinned | 300 VDC | ASTM B-33 | 0.381 mm | 0.015 in | Fluorinated Ethylene-Propylene (FEP) | -40 C | 200 °C | 304.8 m | 1000 ft | Red | Foil | 7.85 mm | 0.309 in |
