ADS5421 Series

14-Bit, 40-MSPS Analog-to-Digital Converter (ADC)

Catalog

14-Bit, 40-MSPS Analog-to-Digital Converter (ADC)

Part	Number of Bits	Supplier Device Package	Voltage - Supply, Digital	Operating Temperature [Max]	Operating Temperature [Min]	Number of A/D Converters	Architecture	Voltage - Supply, Analog	Configuration	Data Interface	Reference Type	Sampling Rate (Per Second)	Number of Inputs	Package / Case	Mounting Type	Ratio - S/H:ADC	Input Type	Utilized IC / Part	Power (Typ) @ Conditions	Input Range	Supplied Contents
Texas Instruments ADS5421Y/R	14	64-LQFP (10x10)	5 V	85 °C	-40 °C	1	Pipelined	5 V	S/H-ADC	Parallel	External Internal	40M	1	64-LQFP	Surface Mount	1:1	Differential

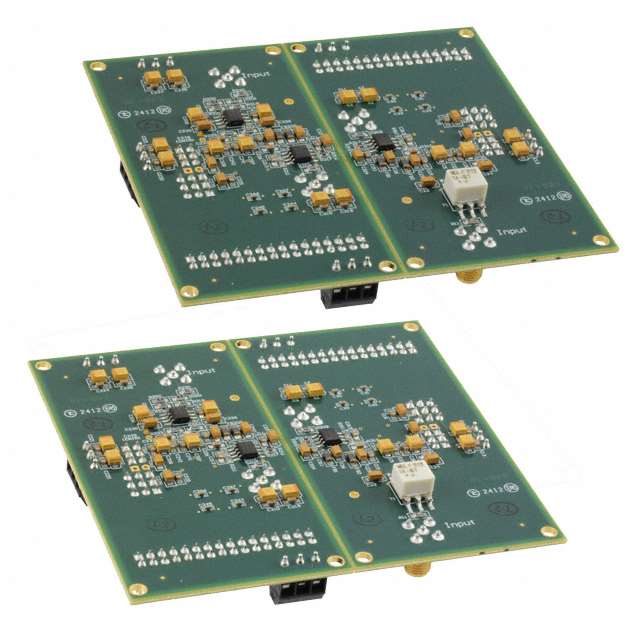

Texas Instruments ADS5421EVM	14					1				Parallel		40M						ADS5421 ADS5422	900 mW	2 Vpp	Board(s)
Texas Instruments ADS5421Y/T	14	64-LQFP (10x10)	5 V	85 °C	-40 °C	1	Pipelined	5 V	S/H-ADC	Parallel	External Internal	40M	1	64-LQFP	Surface Mount	1:1	Differential
Texas Instruments ADS5421Y/RG4	14	64-LQFP (10x10)	5 V	85 °C	-40 °C	1	Pipelined	5 V	S/H-ADC	Parallel	External Internal	40M	1	64-LQFP	Surface Mount	1:1	Differential

Catalog

14-Bit, 40-MSPS Analog-to-Digital Converter (ADC)

Key Features

• HIGH DYNAMIC RANGE:High SFDR: 83dB at 10MHz fINHigh SNR: 75dB at 10MHz fINON-BOARD TRACK-AND-HOLD:Differential InputsSelectable Full-Scale Input RangeLOW POWER: 850mWFLEXIBLE CLOCKING:Differential or Single-EndedAccepts Sine or Square Wave Clocking Down to 0.5VPPVariable Threshold LevelAPPLICATIONSCOMMUNICATIONS RECEIVERSTEST INSTRUMENTATIONPROFESSIONAL CCD IMAGINGAll trademarks are the property of their respective owners.HIGH DYNAMIC RANGE:High SFDR: 83dB at 10MHz fINHigh SNR: 75dB at 10MHz fINON-BOARD TRACK-AND-HOLD:Differential InputsSelectable Full-Scale Input RangeLOW POWER: 850mWFLEXIBLE CLOCKING:Differential or Single-EndedAccepts Sine or Square Wave Clocking Down to 0.5VPPVariable Threshold LevelAPPLICATIONSCOMMUNICATIONS RECEIVERSTEST INSTRUMENTATIONPROFESSIONAL CCD IMAGINGAll trademarks are the property of their respective owners.

Description

The ADS5421 is a high-dynamic range 14-bit, 40MHz, pipelined Analog-to-Digital Converter (ADC). It includes a high-bandwidth linear track-and-hold amplifier that gives excellent spurious performance up to and beyond the Nyquist rate. The clock input can accept a low-level differential sine wave or square wave signal down to 0.5VPP, further improving the Signal-to-Noise Ratio (SNR) performance. The ADS5421 has a 4VPPdifferential input range (2VPP• 2 inputs) for optimum Spurious-Free Dynamic Range (SFDR). The differential operation gives the lowest even-order harmonic components. A lower input voltage can also be selected using the internal references, further optimizing SFDR. The ADS5421 is available in a small LQFP-64 package. The ADS5421 is a high-dynamic range 14-bit, 40MHz, pipelined Analog-to-Digital Converter (ADC). It includes a high-bandwidth linear track-and-hold amplifier that gives excellent spurious performance up to and beyond the Nyquist rate. The clock input can accept a low-level differential sine wave or square wave signal down to 0.5VPP, further improving the Signal-to-Noise Ratio (SNR) performance. The ADS5421 has a 4VPPdifferential input range (2VPP• 2 inputs) for optimum Spurious-Free Dynamic Range (SFDR). The differential operation gives the lowest even-order harmonic components. A lower input voltage can also be selected using the internal references, further optimizing SFDR. The ADS5421 is available in a small LQFP-64 package.
