HDB Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
BACKSHELL D-SUB
| Part | Shielding | Cable Exit | Accessory Type | Cable Type | Material | Plating | Features | Color | Primary Material | Hardware | Number of Positions | Contact Material | Contact Form | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Flange Feature | Connector Style | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Mounting Type | Shell Material, Finish | Current Rating (Amps) | Contact Type | Material Flammability Rating | Connector Type | Number of Rows [custom] | Contact Finish | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

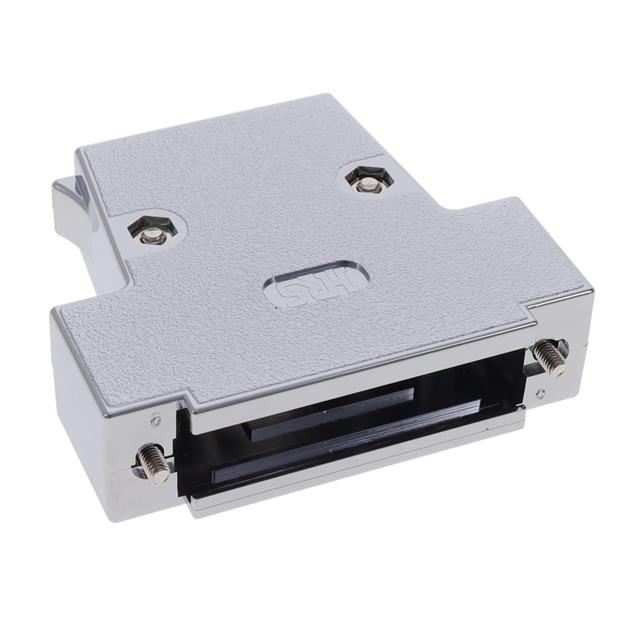

 Hirose Electric Co Ltd | Unshielded | 180 ° | Two Piece Backshell | Round | Acrylonitrile Butadiene Styrene (ABS) | Nickel | Mating Screws M2.6 | Silver | Plastic | Assembly Hardware | 25 | |||||||||||||||||||

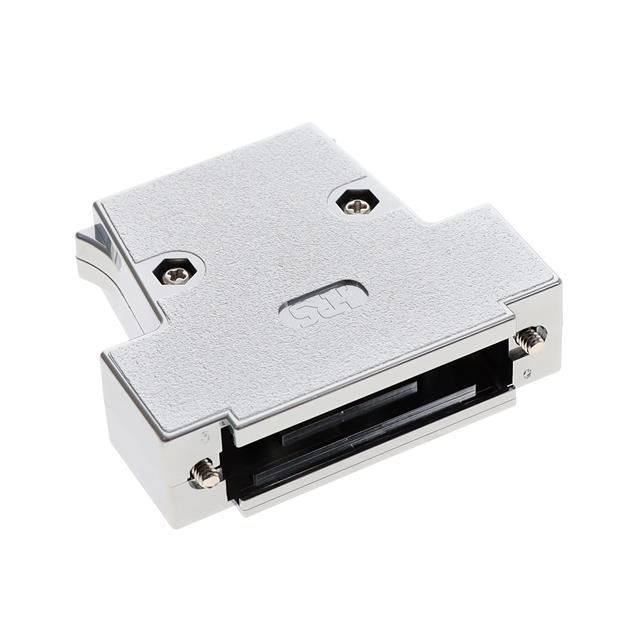

 Hirose Electric Co Ltd | Unshielded | 180 ° | Two Piece Backshell | Round | Acrylonitrile Butadiene Styrene (ABS) | Mating Screws 4-40 | Plastic | Assembly Hardware | 25 | |||||||||||||||||||||
 Hirose Electric Co Ltd | Unshielded | 180 ° | Two Piece Backshell | Round | Acrylonitrile Butadiene Styrene (ABS) | Nickel | Mating Screws 4-40 | Silver | Plastic | Assembly Hardware | 25 | |||||||||||||||||||
 Hirose Electric Co Ltd | Black | 25 | Phosphor Bronze | Stamped | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -40 C | 400 V | Housing/Shell (Unthreaded) | D-Sub | B DB | 3 | Panel Mount | Nickel Plated Steel | 3 A | Signal | UL94 V-0 | Receptacle Female Sockets | 2 | Gold | ||||||||||
Hirose Electric Co Ltd | ||||||||||||||||||||||||||||||

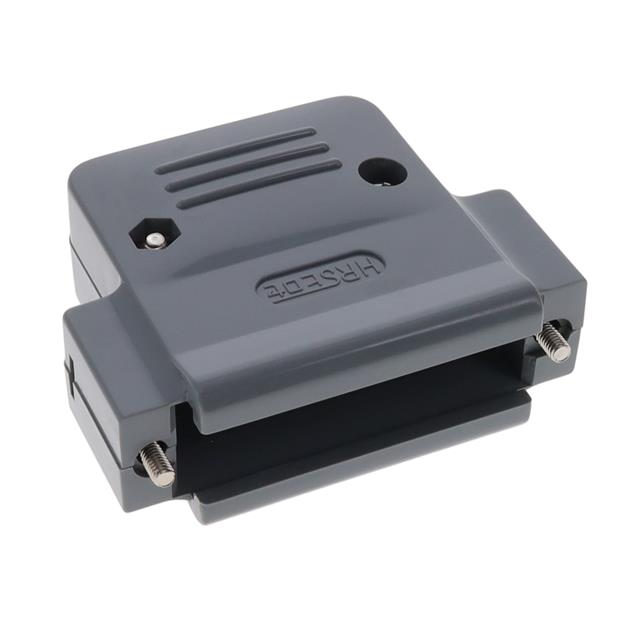

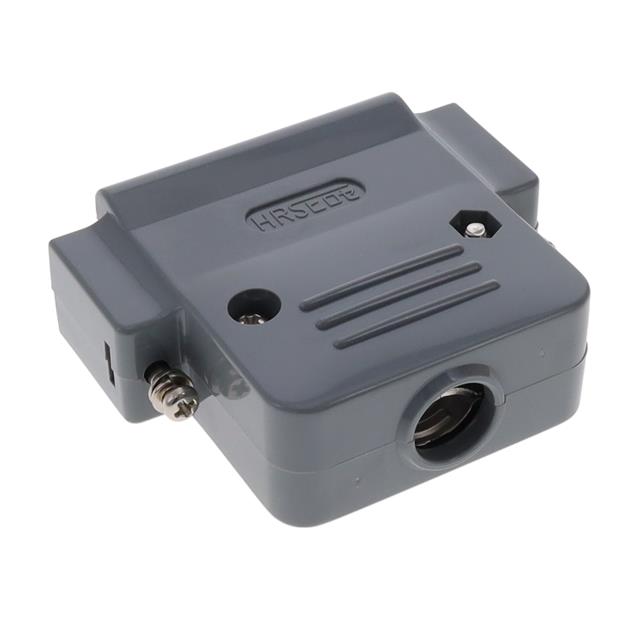

 Hirose Electric Co Ltd | Unshielded | 180 ° | Two Piece Backshell | Round | Acrylonitrile Butadiene Styrene (ABS) | Mating Screws M2.6 | Gray | Plastic | Assembly Hardware | 25 | ||||||||||||||||||||

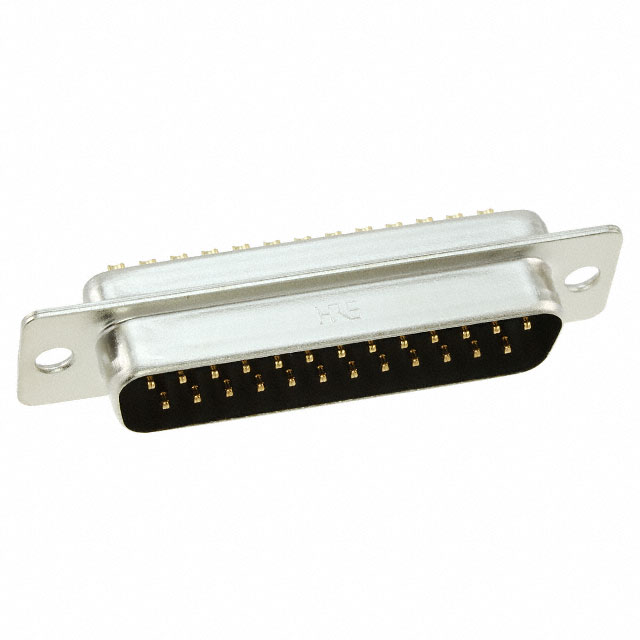

 Hirose Electric Co Ltd | Black | 25 | Copper Alloy | Stamped | Polybutylene Terephthalate (PBT) Glass Filled | 85 °C | -40 C | 400 V | Housing/Shell (Unthreaded) | D-Sub | B DB | 3 | Panel Mount | Nickel Plated Steel | 3 A | Signal | UL94 V-0 | Plug Male Pins | 2 | Gold | ||||||||||
Hirose Electric Co Ltd | Unshielded | 180 ° | Two Piece Backshell | Round | Acrylonitrile Butadiene Styrene (ABS) | Mating Screws 4-40 | Plastic | Assembly Hardware | 25 | |||||||||||||||||||||
Hirose Electric Co Ltd | Cable Clamp | 25 | D-Sub Connectors | |||||||||||||||||||||||||||
Hirose Electric Co Ltd |
