DF3-10S Series

Catalog

CONN RCPT 10POS 0.079 GOLD PCB

Part	Contact Shape	Contact Material	Insulation Material	Connector Type	Termination	Contact Type	Material Flammability Rating	Contact Finish - Mating	Insulation Color	Mated Stacking Heights [Min] [z]	Mated Stacking Heights [Max] [z]	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Mounting Type	Number of Positions Loaded	Fastening Type	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Style	Contact Finish - Post	Number of Positions	Number of Rows	Contact Finish	Wire Type	Cable Termination	Color	Pitch [x]	Pitch [x]	Features	Wire Gauge	Note	Contact Termination

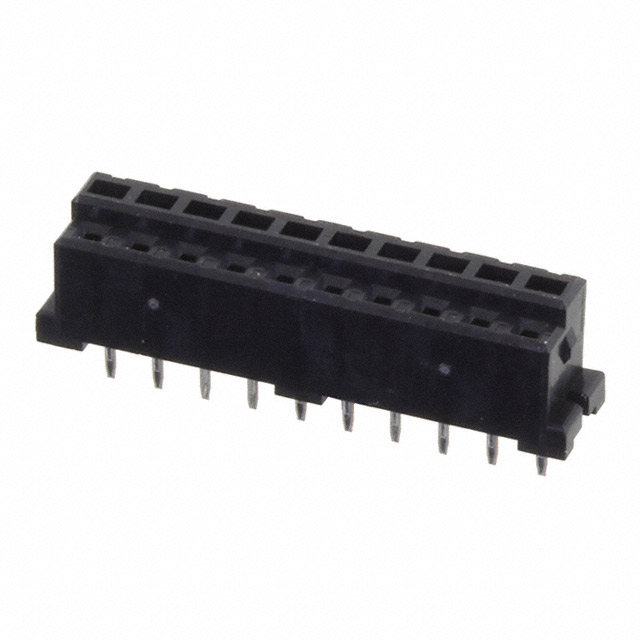

Hirose Electric Co Ltd DF3-10S-2DSA(50)	Square	Phosphor Bronze	Nylon Polyamide (PA)	Receptacle	Solder	Female Socket	UL94 V-0	Gold	Black	6.6 mm	7.5 mm	0.079 "	2 mm	3 A	Through Hole	All	Friction Lock	0.118 in	3 mm	5.9 mm	0.232 in	85 °C	-30 ░C	30 VAC	Board to Board Cable	Tin	10	1
Hirose Electric Co Ltd DF3-10S-2R26(01)				Receptacle		Female Socket									Free Hanging (In-Line)												10	1	Gold	Discrete	IDC	Black	0.079 in	2 mm	Closed End	26 AWG

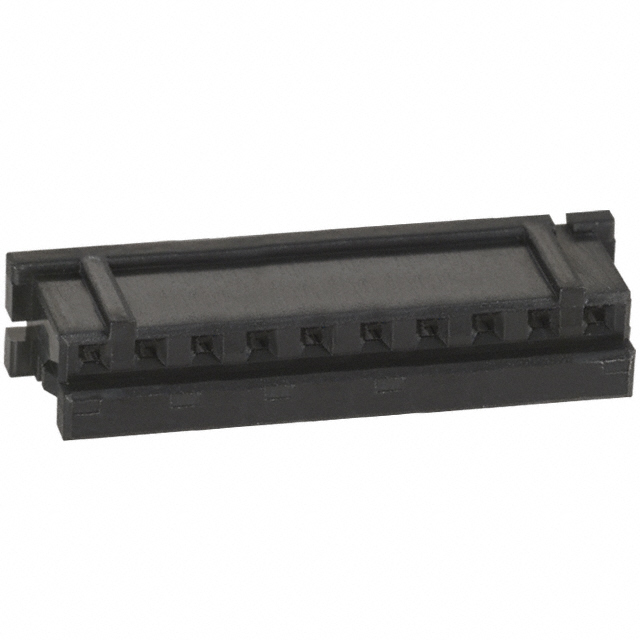

Hirose Electric Co Ltd DF3-10S-2C			Nylon Polyamide (PA)	Receptacle		Female Socket									Free Hanging (In-Line)							105 ░C	-55 C				10	1				Black	0.079 in	2 mm			Contacts Not Included	Crimp
Hirose Electric Co Ltd DF3-10S-2R28(05)				Receptacle		Female Socket									Free Hanging (In-Line)												10	1	Tin	Discrete	IDC	Black	0.079 in	2 mm	Closed End	28 AWG

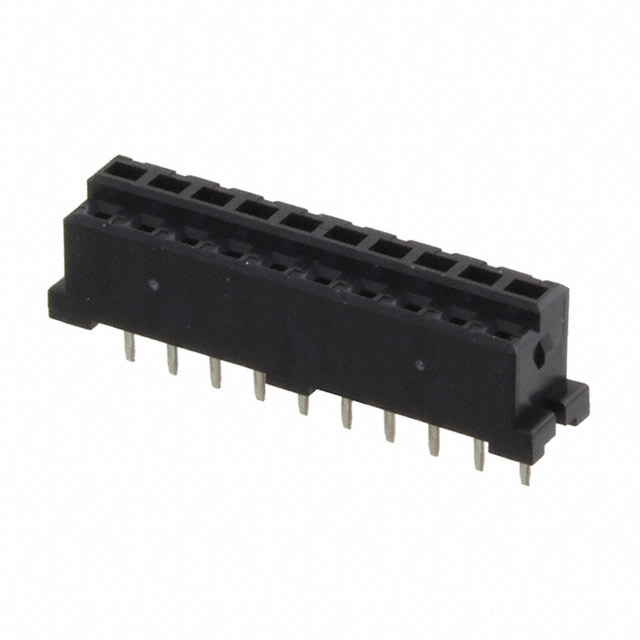

Hirose Electric Co Ltd DF3-10S-2DSA(20)	Square	Phosphor Bronze	Nylon Polyamide (PA)	Receptacle	Solder	Female Socket	UL94 V-0		Black	6.6 mm	7.5 mm	0.079 "	2 mm	3 A	Through Hole	All	Friction Lock	0.118 in	3 mm	5.9 mm	0.232 in	85 °C	-30 ░C	30 VAC	Board to Board Cable	Tin	10	1
