1550 Series

Catalog

GASKET

...

Part	For Use With/Related Products	Accessory Type	Ratings	Height [z]	Height [z]	Material	Thickness	Thickness	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Design	Color	Area (L x W)	Area (L x W)	Container Type	Area (L x W) [custom]	Area (L x W) [custom]	Height	Height	Size / Dimension [y]

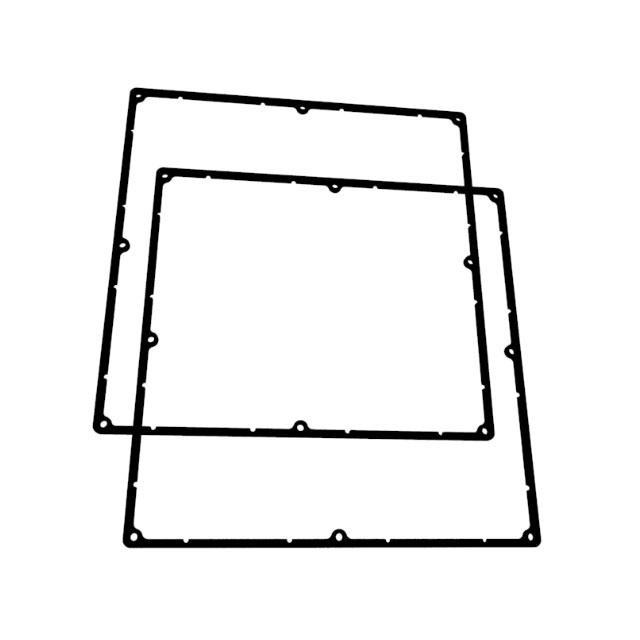

Hammond Manufacturing 1550NEGASKET	1550N Series	Gasket Seal

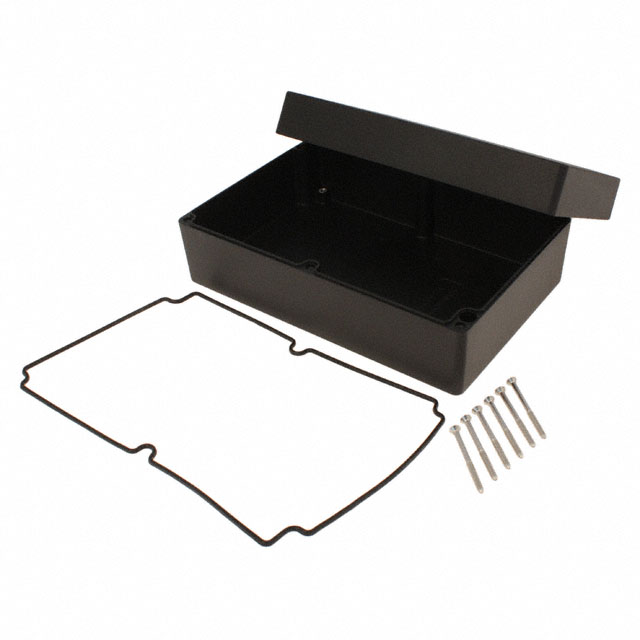

Hammond Manufacturing 1550Z220BK			IP66 NEMA 1 NEMA 12 NEMA 13 NEMA 4 NEMA 4X	3.248 in	82.5 mm	Thick Wall Aluminum	3.18 mm	0.125 in	Wall Mount Watertight	5.768 in	222.5 mm	146.51 mm	8.76 in	Cover Included	Black	50.5 in²	326 cm²	Box

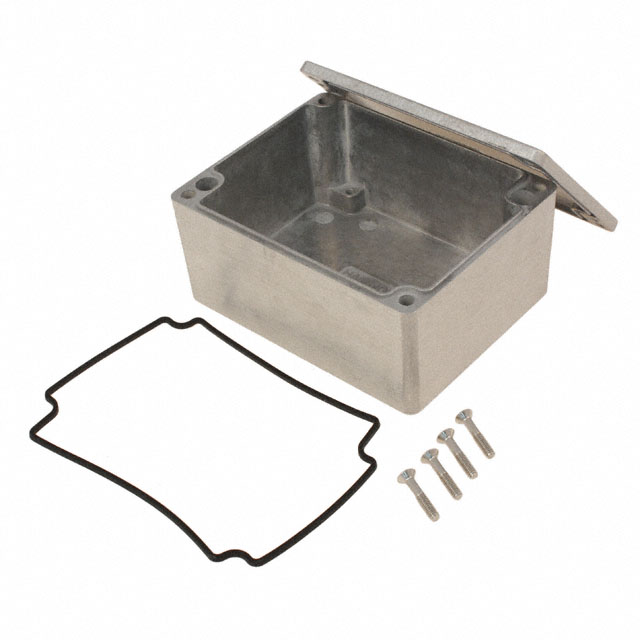

Hammond Manufacturing 1550Z113			IP66 NEMA 1 NEMA 12 NEMA 13 NEMA 4 NEMA 4X	2.181 in	55.4 mm	Thick Wall Aluminum	3 mm	0.118 in	Wall Mount Watertight	3.559 in	115.39 mm	90.4 mm	4.543 in	Cover Included	Unpainted	16.2 in²	105 cm²	Box

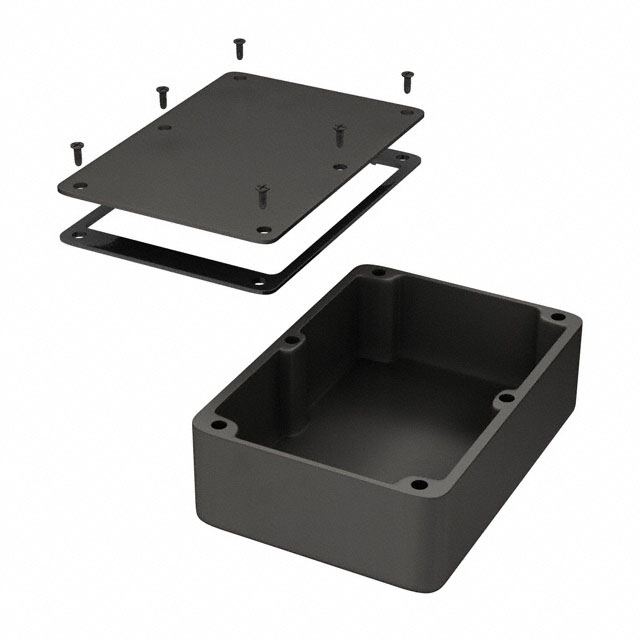

Hammond Manufacturing 1550WEBK			IP66	2.169 in	55.09 mm	Aluminum	2.01 mm	0.079 in	Watertight	4.764 in 121.01 mm			6.732 in 170.99 mm	Cover Included	Black			Box	32.1 in²	207 cm²
Hammond Manufacturing 1550WJ			IP66	2.622 in	66.6 mm	Aluminum	2.49 mm	0.098 in	Watertight	6.89 in 175 mm			10.827 in 275 mm	Cover Included	Unpainted	74.5 in²	481 cm²	Box

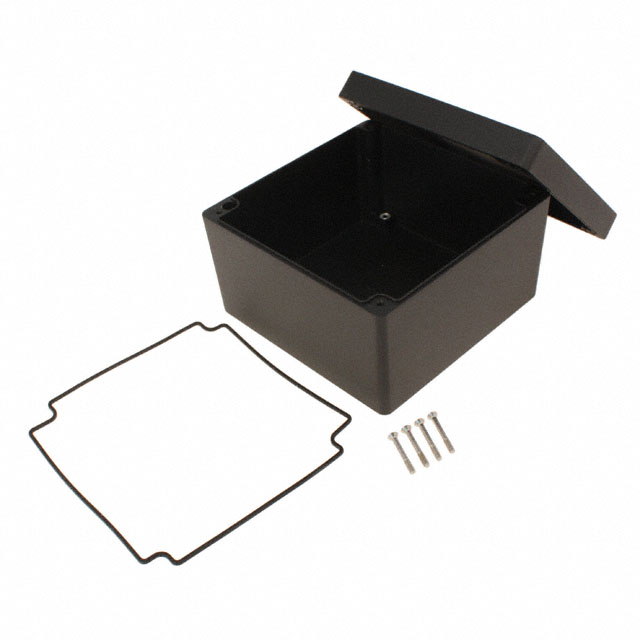

Hammond Manufacturing 1550Z139BK			IP66 NEMA 1 NEMA 12 NEMA 13 NEMA 4 NEMA 4X	4.016 in	102.01 mm	Thick Wall Aluminum	3.07 mm	0.121 in	Wall Mount Watertight	6.276 in	159.41 mm	159.41 mm	6.276 in	Cover Included	Black	39.3 in˛	254 cm˛	Box
Hammond Manufacturing 1550CSGASKET	1550C Series	Gasket Seal
Hammond Manufacturing 1550WMBK			IP66			Aluminum	1.8 mm	0.071 "	Watertight	3.953 in	120.4 mm	100.41 mm	4.74 in	Cover Included	Black	18.7 in²	121 cm²	Box			1.394 in	35.41 mm

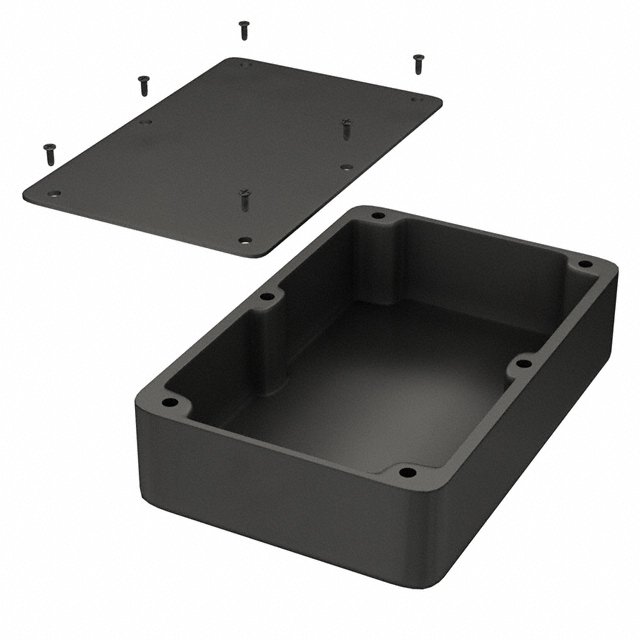

Hammond Manufacturing 1550GBK			IP54	2.169 in	55.09 mm	Aluminum	2.01 mm	0.079 in		5.748 in	222 mm		8.74 in	Cover Included	Black	50.2 in²	324 cm²	Box					146 mm
Hammond Manufacturing 1550Z111			IP66 NEMA 1 NEMA 12 NEMA 13 NEMA 4 NEMA 4X	2.181 in	55.4 mm	Thick Wall Aluminum	3 mm	0.118 in	Wall Mount Watertight	2.575 in	115.39 mm	65.41 mm	4.543 in	Cover Included	Unpainted	11.7 in²	75 cm²	Box
