DS32KHZ Series

32.768kHz Temperature-Compensated Crystal Oscillator

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

32.768kHz Temperature-Compensated Crystal Oscillator

Part	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Output	Package / Case	Base Resonator [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Frequency	Frequency Stability	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Package / Case	Height - Seated (Max) [Max] [z]	Package / Case	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Height - Seated (Max)

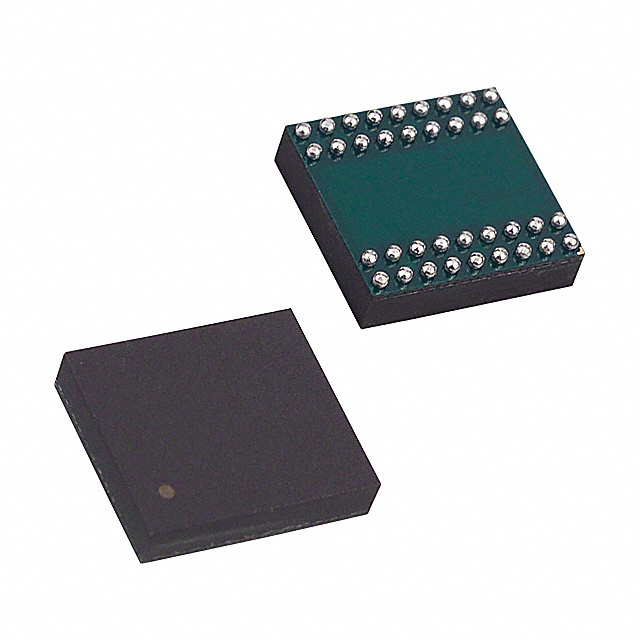

Analog Devices Inc./Maxim Integrated DS32KHZ/WBGA+	220 µA	70 °C	0 °C	Surface Mount	CMOS	36-BGA	Crystal	0.1 in	2.54 mm	TCXO	0.032768 MHz	7.5 ppm	0.4 "	11.43 mm	0.45 "	10.16 mm

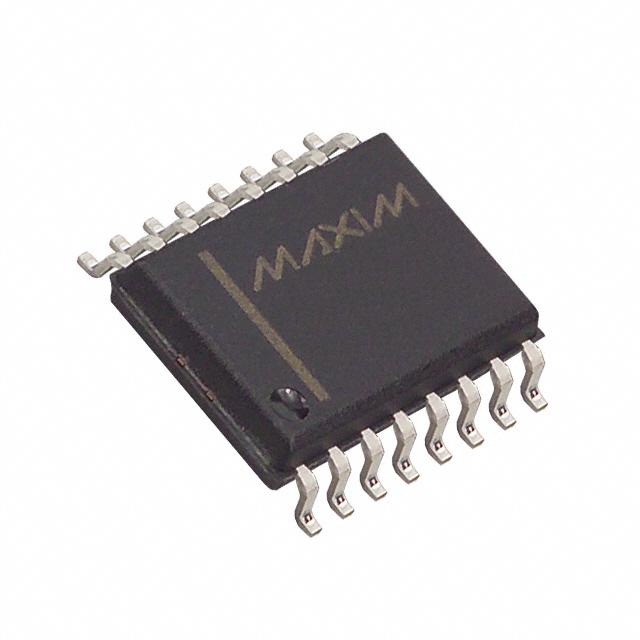

Analog Devices Inc./Maxim Integrated DS32KHZSN#	220 µA	85 °C	-40 C	Surface Mount	CMOS	16-SOIC	Crystal	2.67 mm		TCXO	0.032768 MHz	7.5 ppm	0.3 "	10.46 mm	0.412 in	7.62 mm	7.5 mm	0.295 "	0.105 in
Analog Devices Inc./Maxim Integrated DS32KHZSN#-W	220 µA	85 °C	-40 C	Surface Mount	CMOS	16-SOIC	Crystal	2.67 mm		TCXO	0.032768 MHz	7.5 ppm	0.3 "	10.46 mm	0.412 in	7.62 mm	7.5 mm	0.295 "	0.105 in
Analog Devices Inc./Maxim Integrated DS32KHZS/T&R	220 µA	70 °C	0 °C	Surface Mount	CMOS	16-SOIC	Crystal	2.67 mm		TCXO	0.032768 MHz	7.5 ppm	0.3 "	10.46 mm	0.412 in	7.62 mm			0.105 in	0.154 in 3.9 mm
Analog Devices Inc./Maxim Integrated DS32KHZS#	220 µA	70 °C	0 °C	Surface Mount	CMOS	16-SOIC	Crystal	2.67 mm		TCXO	0.032768 MHz	7.5 ppm	0.3 "	10.46 mm	0.412 in	7.62 mm	7.5 mm	0.295 "	0.105 in

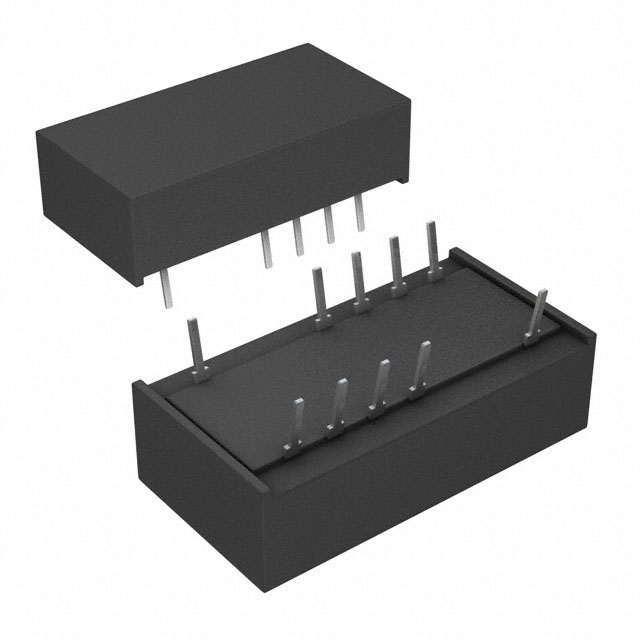

Analog Devices Inc./Maxim Integrated DS32KHZ/DIP	220 µA	70 °C	0 °C	Through Hole	CMOS	14-DIP Module	Crystal	8.01 mm		TCXO	0.032768 MHz	7.5 ppm							0.315 in		14-DIP Module
Analog Devices Inc./Maxim Integrated DS32KHZN/WBGA+T&R	220 µA	85 °C	-40 C	Surface Mount	CMOS	36-BGA	Crystal	0.1 in	2.54 mm	TCXO	0.032768 MHz	7.5 ppm	0.4 "	11.43 mm	0.45 "	10.16 mm
Analog Devices Inc./Maxim Integrated DS32KHZSN/T&R	220 µA	85 °C	-40 C	Surface Mount	CMOS	16-SOIC	Crystal	2.67 mm		TCXO	0.032768 MHz	7.5 ppm	0.3 "	10.46 mm	0.412 in	7.62 mm	7.5 mm	0.295 "	0.105 in			5.5 V	4.5 V
Analog Devices Inc./Maxim Integrated DS32KHZSN#T&R	220 µA	85 °C	-40 C	Surface Mount	CMOS	16-SOIC	Crystal	2.67 mm		TCXO	0.032768 MHz	7.5 ppm	0.3 "	10.46 mm	0.412 in	7.62 mm	7.5 mm	0.295 "	0.105 in
Analog Devices Inc./Maxim Integrated DS32KHZ/WBGA/T&R	220 µA	70 °C	0 °C	Surface Mount	CMOS	36-BGA	Crystal			TCXO	0.032768 MHz	7.5 ppm	0.4 "	11.43 mm	0.45 "	10.16 mm			0.101 in					2.56 mm

Catalog

32.768kHz Temperature-Compensated Crystal Oscillator

Description

The DS32kHz is a temperature-compensated crystal oscillator (TCXO) with an output frequency of 32.768kHz. This device addresses applications requiring better timekeeping accuracy, and can be used to drive the X1 input of most Dallas Semiconductor real-time clocks (RTCs), chipsets, and other ICs containing RTCs. This device is available in commercial (DS32kHz) and industrial (DS32kHz-N) temperature versions.ApplicationsAutomatic Power MetersGPS ReceiversNetwork Timing and Synchronization in Servers, Routers, Hubs, and SwitchesTelematics
