JR25WRH Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

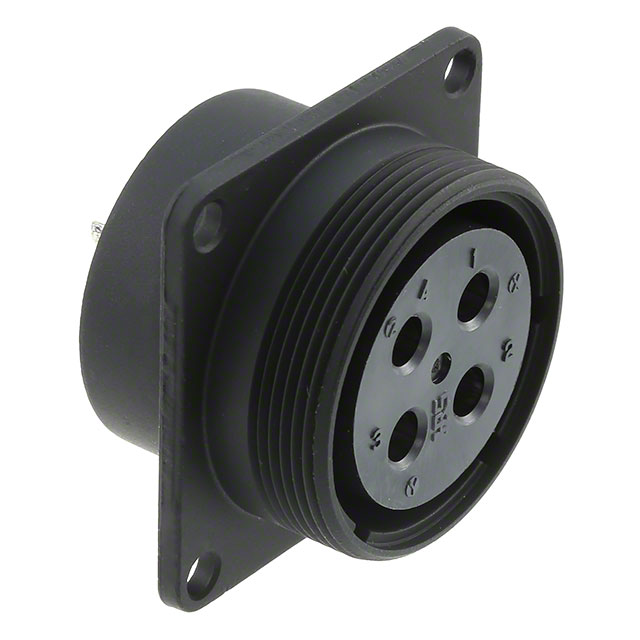

CONN RCPT FMALE 4P SOLDER CUP
| Part | Ingress Protection | Shell Material | Primary Material | Orientation | Color | Current Rating (Amps) | Connector Type | Insert Material | Number of Positions | Mounting Type | Shell Finish | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Voltage Rating | Mounting Feature | Cable Opening | Cable Opening | Contact Finish - Mating | Fastening Type | Applications | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | IP67/IP68 | Aluminum Alloy | Metal | Keyed | Black | 30 A | Receptacle Female Sockets | Polyphenylene Sulfide (PPS) | 4 | Panel Mount | Black Chromium | Phosphor Bronze | 78.7 µin | 2 µm | 85 °C | -25 °C | UL94 V-0 | 300 VAC 420 VDC | Flange | 1.098 in | 27.9 mm | Silver | Threaded | Automotive Industrial Telecommunications | 25 |
