PMR2 Series

Catalog

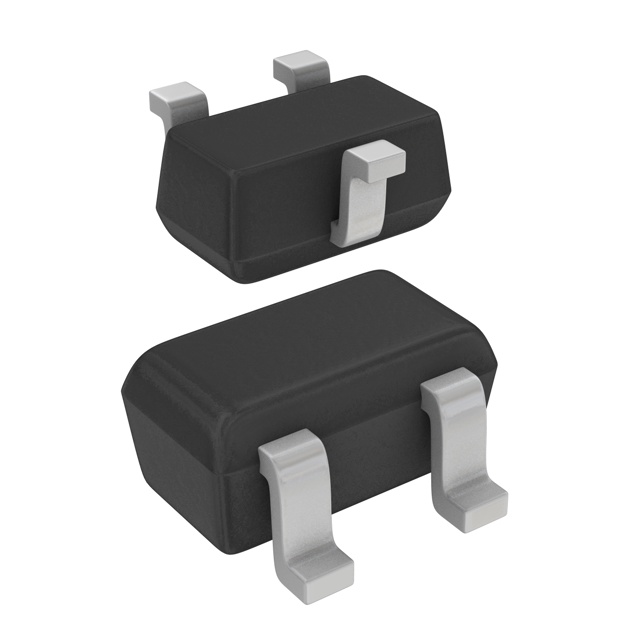

MOSFET N-CH 20V 700MA SC75

Part	Drain to Source Voltage (Vdss)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Supplier Device Package	Package / Case	Rds On (Max) @ Id, Vgs [Max]	Vgs (Max)	FET Type	Technology	Gate Charge (Qg) (Max) @ Vgs [Max]	Vgs(th) (Max) @ Id	Power Dissipation (Max)	Drive Voltage (Max Rds On, Min Rds On)	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max) [Max]	Gate Charge (Qg) (Max) @ Vgs	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs
Freescale Semiconductor - NXP PMR290UNE,115	20 V	-55 °C	150 °C	Surface Mount	SC-75	SC-75 SOT-416	380 mOhm	8 V	N-Channel	MOSFET (Metal Oxide)	0.68 nC	950 mV	250 mW 770 mW	1.8 V 4.5 V
Freescale Semiconductor - NXP PMR280UN,115	20 V	-55 °C	150 °C	Surface Mount	SC-75	SC-75 SOT-416		8 V	N-Channel	MOSFET (Metal Oxide)		1 V		1.8 V 4.5 V	980 mA	530 mW	0.89 nC	45 pF	340 mOhm
