HIF3BAF Series

Catalog

CONN HEADER R/A 10POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Mounting Type	Number of Positions	Material Flammability Rating	Current Rating (Amps)	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows [custom]	Contact Finish - Post	Shrouding	Contact Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Contact Finish - Mating	Connector Type	Contact Length - Post	Contact Length - Post	Contact Type	Insulation Material	Termination	Insulation Height	Insulation Height	Features	Insulation Height [z]	Insulation Height [z]	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length
Hirose Electric Co Ltd HIF3BAF-10PA-2.54DS(63)	78.7 µin	2 µm	Right Angle Through Hole	10	UL94 V-0	Varies by Wire Gauge	All	0.1 "	2.54 mm	Latch Lock/Eject Hooks	Black	8 µin	0.203 µm	2	Tin	Shrouded - 4 Wall	Brass	200 V	-55 C	85 °C	Square	0.1 in	2.54 mm	Board to Cable/Wire	Gold	Header	0.118 in	3 mm	Male Pin	Polybutylene Terephthalate (PBT)	Solder	0.335 "	8.51 mm
Hirose Electric Co Ltd HIF3BAF-60PA-2.54DS(63)	78.7 µin	2 µm	Right Angle Through Hole	60	UL94 V-0	Varies by Wire Gauge	All	0.1 "	2.54 mm	Latch Lock/Eject Hooks	Black	8 µin	0.203 µm	2	Tin	Shrouded - 4 Wall	Brass	200 V	-55 C	85 °C	Square	0.1 in	2.54 mm	Board to Cable/Wire	Gold	Header	0.118 in	3 mm	Male Pin	Polybutylene Terephthalate (PBT)	Solder	0.335 "	8.51 mm
Hirose Electric Co Ltd HIF3BAF-60PA-2.54DSA(63)	78.7 µin	2 µm	Through Hole	60	UL94 V-0	Varies by Wire Gauge	All	0.1 "	2.54 mm	Latch Lock/Eject Hooks	Black	8 µin	0.203 µm	2	Tin	Shrouded - 4 Wall	Brass	200 V	-55 C	85 °C	Square	0.1 in	2.54 mm	Board to Cable/Wire	Gold	Header	0.13 "	3.3 mm	Male Pin	Polybutylene Terephthalate (PBT)	Solder			Keying Slot	0.701 in	17.8 mm
Hirose Electric Co Ltd HIF3BAF-40PA-2.54DS(63)	78.7 µin	2 µm	Right Angle Through Hole	40	UL94 V-0	Varies by Wire Gauge	All	0.1 "	2.54 mm	Latch Lock/Eject Hooks	Black	8 µin	0.203 µm	2	Tin	Shrouded - 4 Wall	Brass	200 V	-55 C	85 °C	Square	0.1 in	2.54 mm	Board to Cable/Wire	Gold	Header	0.118 in	3 mm	Male Pin	Polybutylene Terephthalate (PBT)	Solder	0.335 "	8.51 mm
Hirose Electric Co Ltd HIF3BAF-40PA-2.54WB(71)	78.7 µin	2 µm	Right Angle Through Hole	40	UL94 V-0		All	0.1 "	2.54 mm	Latch Lock/Eject Hooks	Black	8 µin	0.203 µm	2	Tin	Shrouded - 4 Wall	Brass	200 V	-55 C	85 °C	Square	0.1 in	2.54 mm	Board to Cable/Wire	Gold	Header	0.118 in	3 mm	Male Pin	Polybutylene Terephthalate (PBT)	Solder	0.335 "	8.51 mm				6 mm	0.236 in

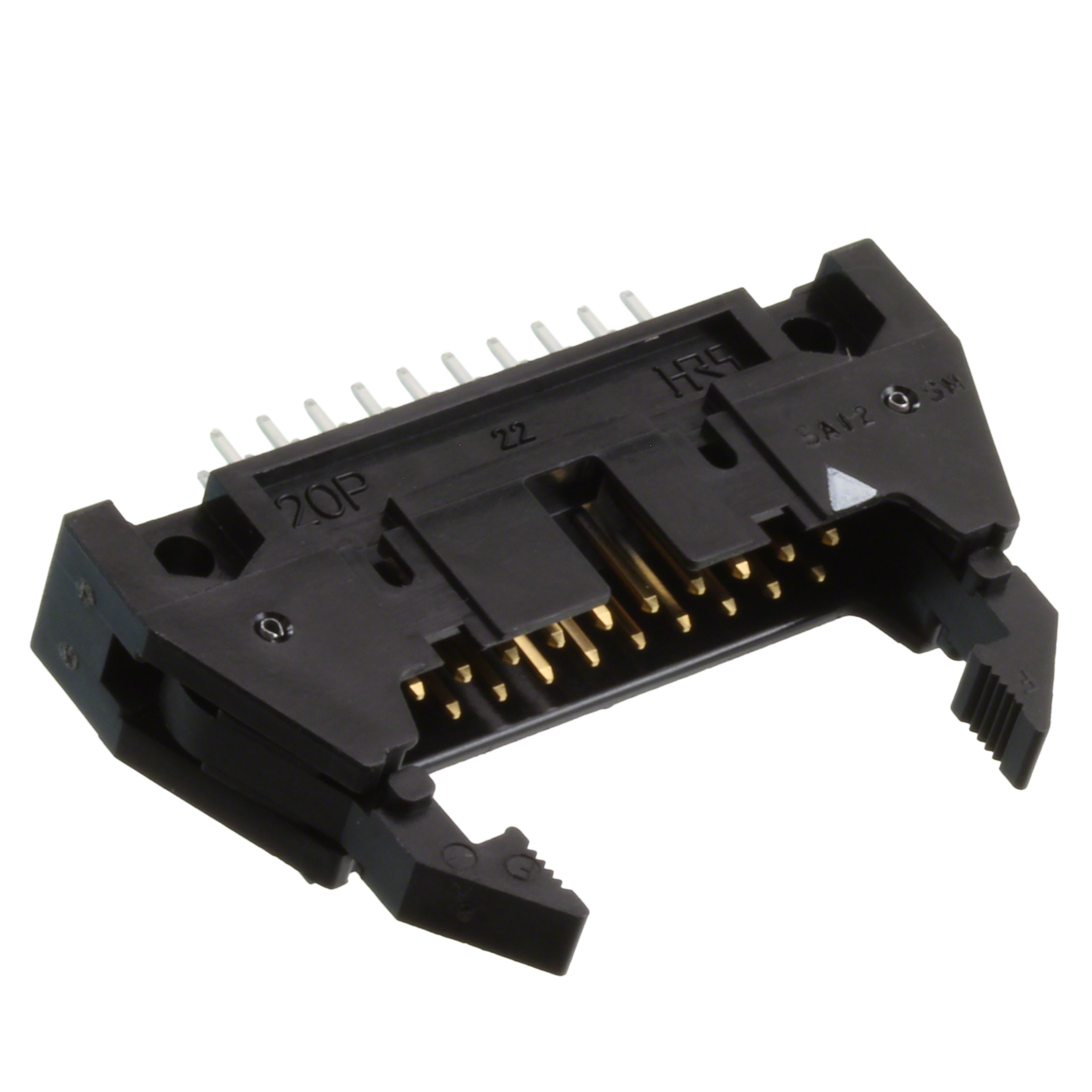

Hirose Electric Co Ltd HIF3BAF-20PA-2.54DSA(71)	78.7 µin	2 µm	Through Hole	20	UL94 V-0		All	0.1 "	2.54 mm	Latch Lock/Eject Hooks	Black	8 µin	0.203 µm	2	Tin	Shrouded - 4 Wall	Brass	200 V	-55 C	85 °C	Square	0.1 in	2.54 mm	Board to Cable/Wire	Gold	Header	0.13 "	3.3 mm	Male Pin	Polybutylene Terephthalate (PBT)	Solder			Keying Slot	0.701 in	17.8 mm	6 mm	0.236 in	16.7 mm	0.657 in
Hirose Electric Co Ltd HIF3BAF-40PA-2.54WB(63)	78.7 µin	2 µm	Right Angle Through Hole	40	UL94 V-0	Varies by Wire Gauge	All	0.1 "	2.54 mm	Latch Lock/Eject Hooks	Black	8 µin	0.203 µm	2	Tin	Shrouded - 4 Wall	Brass	200 V	-55 C	85 °C	Square	0.1 in	2.54 mm	Board to Cable/Wire	Gold	Header	0.118 in	3 mm	Male Pin	Polybutylene Terephthalate (PBT)	Solder	0.335 "	8.51 mm

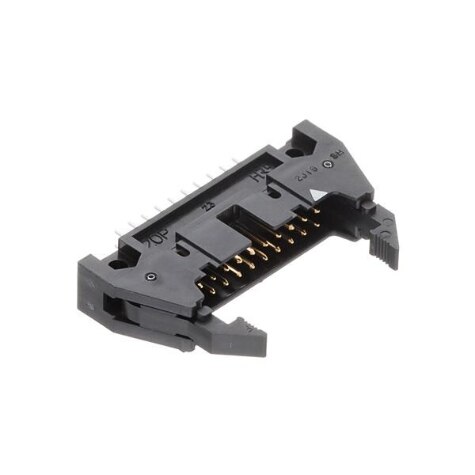

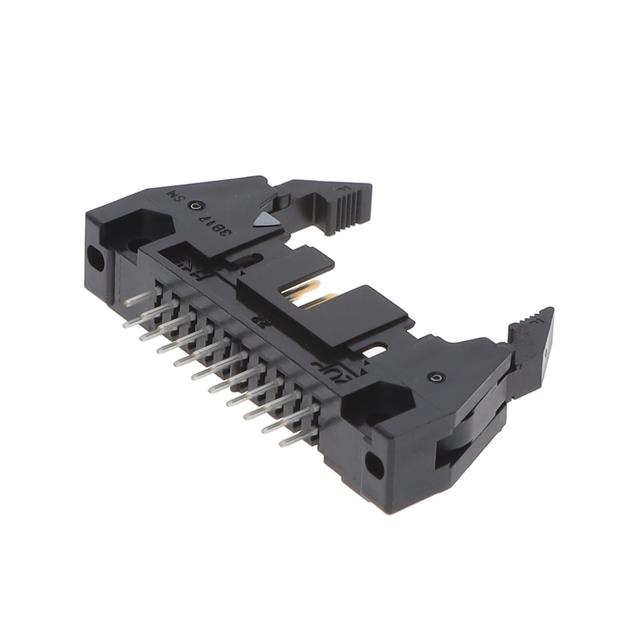

Hirose Electric Co Ltd HIF3BAF-20PA-2.54DSA(63)	78.7 µin	2 µm	Through Hole	20	UL94 V-0	Varies by Wire Gauge	All	0.1 "	2.54 mm	Latch Lock/Eject Hooks	Black	8 µin	0.203 µm	2	Tin	Shrouded - 4 Wall	Brass	200 V	-55 C	85 °C	Square	0.1 in	2.54 mm	Board to Cable/Wire	Gold	Header	0.13 "	3.3 mm	Male Pin	Polybutylene Terephthalate (PBT)	Solder			Keying Slot	0.701 in	17.8 mm
Hirose Electric Co Ltd HIF3BAF-10PA-2.54DS(71)	78.7 µin	2 µm	Right Angle Through Hole	10	UL94 V-0		All	0.1 "	2.54 mm	Latch Lock/Eject Hooks	Black	8 µin	0.203 µm	2	Tin	Shrouded - 4 Wall	Brass	200 V	-55 C	85 °C	Square	0.1 in	2.54 mm	Board to Cable/Wire	Gold	Header	0.118 in	3 mm	Male Pin	Polybutylene Terephthalate (PBT)	Solder	0.335 "	8.51 mm	Mounting Flange			6 mm	0.236 in
Hirose Electric Co Ltd HIF3BAF-64PA-2.54DS(63)	78.7 µin	2 µm	Right Angle Through Hole	64	UL94 V-0	Varies by Wire Gauge	All	0.1 "	2.54 mm	Latch Lock/Eject Hooks	Black	8 µin	0.203 µm	2	Tin	Shrouded - 4 Wall	Brass	200 V	-55 C	85 °C	Square	0.1 in	2.54 mm	Board to Cable/Wire	Gold	Header	0.118 in	3 mm	Male Pin	Polybutylene Terephthalate (PBT)	Solder	0.335 "	8.51 mm
