MMCX-LR Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

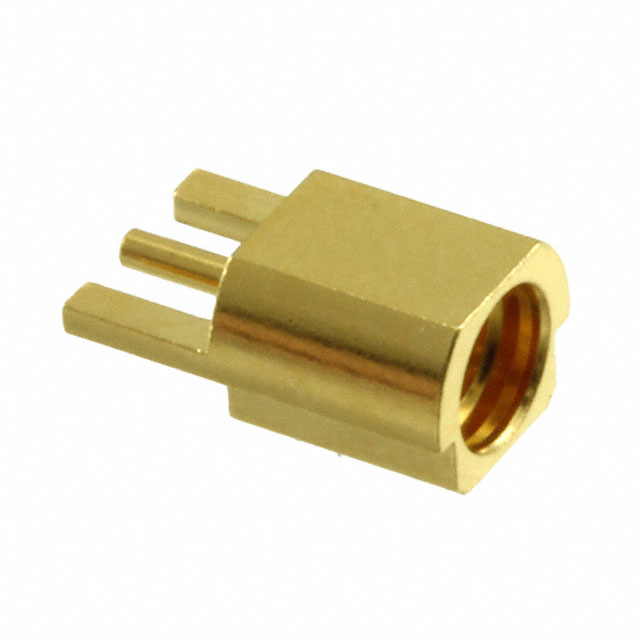

CONN MMCX RCPT STR 50OHM EDGEMNT
| Part | Center Contact Plating | Dielectric Material | Body Material | Body Finish | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Shield Termination | Mounting Type | Center Contact Material | Fastening Type | Housing Color | Connector Style | Contact Termination | Frequency - Max [Max] | Impedance | Connector Type | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Gold | Polytetrafluoroethylene (PTFE) | Brass | Gold | 500 | -55 C | 85 °C | Solder | Board Edge Cutout Surface Mount | Beryllium Copper | Snap-On | Gold | MMCX | Solder | 6000 MHz | 50 Ohms | Receptacle Female Socket | 1 |
 Hirose Electric Co Ltd | Gold | Polytetrafluoroethylene (PTFE) | Brass | Gold | 500 | -55 C | 85 °C | Solder | Board Edge Cutout Surface Mount | Beryllium Copper | Snap-On | Gold | MMCX | Solder | 6000 MHz | 50 Ohms | Receptacle Female Socket | 1 |
