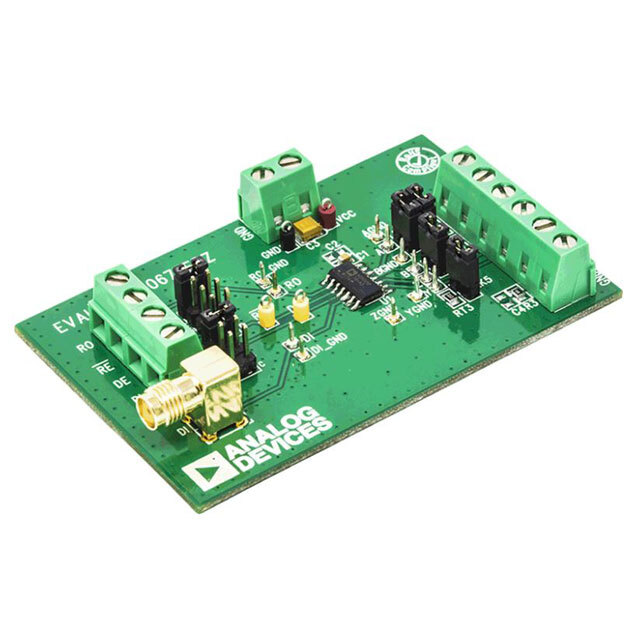

ADM3067E Series
3.0 V to 5.5 V, ±12 kV IEC ESD Protected, Full Duplex 50 Mbps RS-485 Transceiver
Manufacturer: Analog Devices
Catalog
3.0 V to 5.5 V, ±12 kV IEC ESD Protected, Full Duplex 50 Mbps RS-485 Transceiver
Key Features
• TIA/EIA RS-485 compliant over full supply range
• 3.0 V to 5.5 V operating voltage range on VCC
• 1.62 V to 5.5 V VIOlogic supply option available
• ESD protection on the bus pinsIEC 61000-4-2 ±12 kV contact dischargeIEC 61000-4-2 ≥ ±12 kV air dischargeHBM: ≥ ±30 kV
• IEC 61000-4-2 ±12 kV contact discharge
• IEC 61000-4-2 ≥ ±12 kV air discharge
• HBM: ≥ ±30 kV
• Full hot swap support (glitch free power-up/power-down)
• High speed 50 Mbps data rate (ADM3065E/ADM3066E/ADM3067E/ADM3068E)
• Low speed 500 kbps data rate for long cables (ADM3061E/ADM3062E/ADM3063E/ADM3064E)
• Full receiver short-circuit, open circuit, and bus idle fail-safe
• Extended temperature range up to 125°C
• PROFIBUS compliant at VCC≥ 4.5 V
• Half duplex and full duplex models available
• Allows connection of up to 128 transceivers onto the bus
• Space-saving package options10-lead, 3 mm × 3 mm LFCSP8-lead and 10-lead, 3 mm × 3 mm MSOP8-lead and 14-lead, narrow body SOIC
• 10-lead, 3 mm × 3 mm LFCSP
• 8-lead and 10-lead, 3 mm × 3 mm MSOP
• 8-lead and 14-lead, narrow body SOIC
• DownloadADM3065E-EP/ADM3066E-EP/ADM3067E-EP Data Sheet(PDF)
• Extended industrial temperature range: −55°C to +125°C
• Controlled manufacturing baseline
• 1 assembly/test site
• 1 fabrication site
• Product change notification
• Qualification data available on request
Description
AI
TheADM3061E/ADM3062E/ADM3063E/ADM3064E/ADM3065E/ADM3066E/ADM3067E/ADM3068Eare 3.0 V to 5.5 V, IEC electrostatic discharge (ESD) protected RS-485 transceivers, allowing the devices to withstand ±12 kV contact discharges on the transceiver bus pins without latch-up or damage. The ADM3062E/ADM3064E/ADM3066E/ADM3068E feature a VIOlogic supply pin that allows a flexible digital interface capable of operating as low as 1.62 V.The ADM3065E/ADM3066E/ADM3067E/ADM3068E are suitable for high speed, 50 Mbps, bidirectional data communication on multipoint bus transmission lines. The ADM3061E/ADM3062E/ADM3063E/ADM3064E/ADM3065E/ADM3066E/ADM3067E/ADM3068E feature a 1/4 unit load input impedance that allows up to 128 transceivers on a bus. The ADM3061E/ADM3062E/ADM3063E/ADM3064E models offer all of the same features as the ADM3065E/ADM3066E/ADM3067E/ADM3068E models at a low 500 kbps data rate that is suitable for operation over long cable runs.The ADM3061E/ADM3062E/ADM3065E/ADM3066E are halfduplex RS-485 transceivers, fully compliant to the PROFIBUS®standard with increased 2.1 V bus differential voltage at VCC≥ 4.5 V. The ADM3063E/ADM3064E/ADM3067E/ADM3068E are full duplex RS-485 transceiver options.The RS-485 transceivers are available in a number of spacesaving packages, including the 10-lead, 3 mm × 3 mm lead frame chip-scale package (LFCSP), the 8-lead or 10-lead, 3 mm × 3 mm mini small outline package (MSOP), and the 8-lead or 14-lead, narrow body standard small outline packages (SOIC_N). Models with operating temperature ranges of −40°C to +125°C and −40°C to +85°C are available.Excessive power dissipation caused by bus contention or by output shorting is prevented by a thermal shutdown circuit. If a significant temperature increase is detected in the internal driver circuitry during fault conditions, this feature forces the driver output into a high impedance state.The ADM3061E/ADM3062E/ADM3063E/ADM3064E/ADM3065E/ADM3066E/ADM3067E/ADM3068E guarantee a logic high receiver output when the receiver inputs are shorted, open, or connected to a terminated transmission line with all drivers disabled.Table 2 in the data sheet presents an overview of the ADM3061E/ADM3062E/ADM3063E/ADM3064E/ADM3065E/ADM3066E/ADM3067E/ADM3068E data rate capability across temperature, power supply, and package options. Refer to the Ordering Guide section for model numbering.APPLICATIONSIndustrial fieldbusesProcess controlBuilding automationPROFIBUS networksMotor control servo drives and encoders
