PCN13 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN DIN RCPT 96POS PCB GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Material Flammability Rating | Current Rating (Amps) | Mounting Type | Contact Finish | Number of Rows [custom] | Pitch | Pitch | Number of Positions | Termination | Connector Type | Features | Number of Positions Loaded | Level, Class [custom] | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

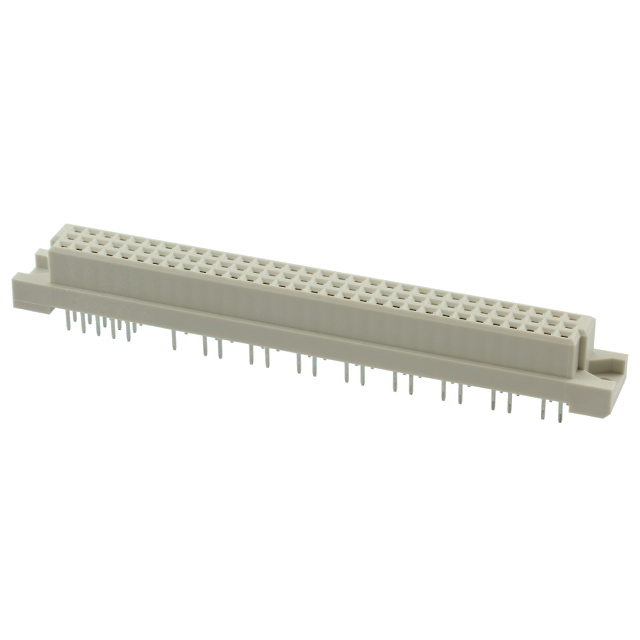

 Hirose Electric Co Ltd | -55 C | 85 °C | Polybutylene Terephthalate (PBT) | UL94 V-0 | 2 A | Through Hole | Gold | 3 | 0.1 " | 2.54 mm | 96 | Solder | Receptacle Female Sockets | Board Lock | All | ||

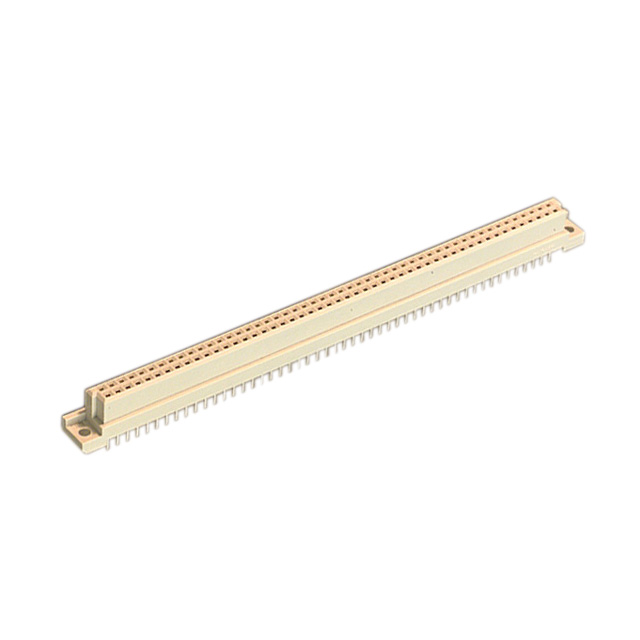

 Hirose Electric Co Ltd | -55 C | 85 °C | Polybutylene Terephthalate (PBT) | UL94 V-0 | 2 A | Right Angle Through Hole | Gold | 2 | 0.1 " | 2.54 mm | 100 | Solder | Receptacle Female Sockets | All | 1 | B | |

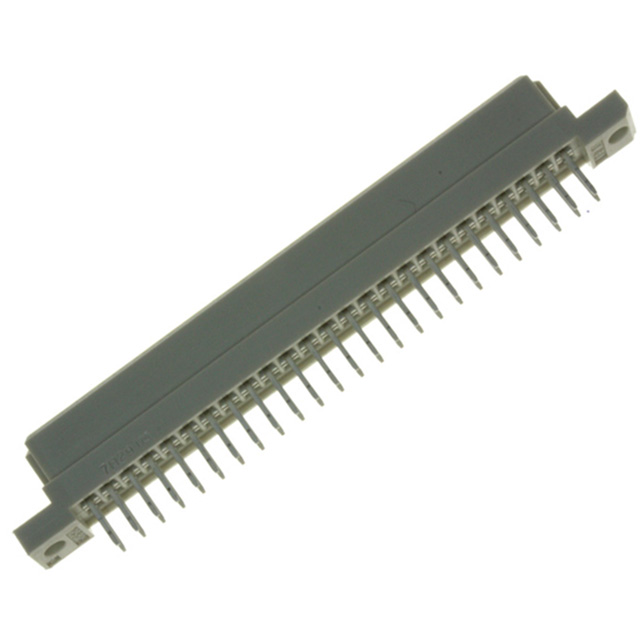

 Hirose Electric Co Ltd | -55 C | 85 °C | Polybutylene Terephthalate (PBT) | UL94 V-0 | 2 A | Through Hole | Gold | 2 | 0.1 " | 2.54 mm | 50 | Solder | Receptacle Female Sockets | All | 1 | B | |
 Hirose Electric Co Ltd | -55 C | 85 °C | Polybutylene Terephthalate (PBT) | UL94 V-0 | 2 A | Through Hole | Gold | 3 | 0.1 " | 2.54 mm | 96 | Solder | Receptacle Female Sockets | All | |||

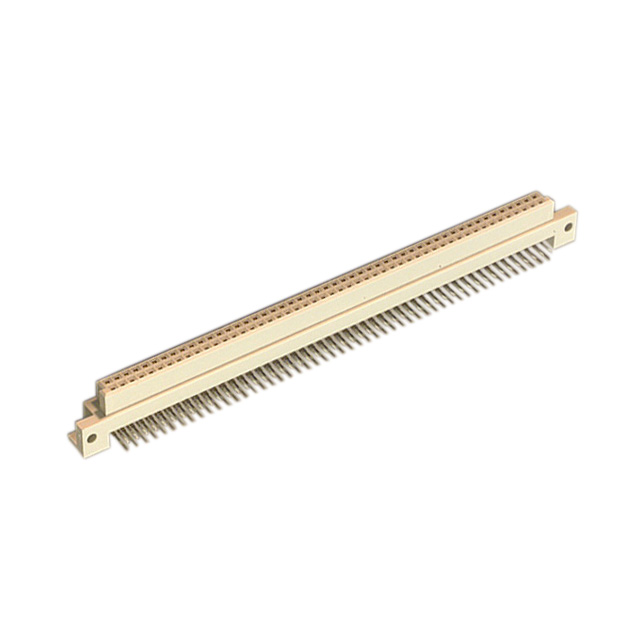

 Hirose Electric Co Ltd | -55 C | 85 °C | Polybutylene Terephthalate (PBT) | UL94 V-0 | 2 A | Through Hole | Gold | 2 | 0.1 " | 2.54 mm | 100 | Solder | Receptacle Female Sockets | All | 1 | B | |
 Hirose Electric Co Ltd | -55 C | 85 °C | Polybutylene Terephthalate (PBT) | UL94 V-0 | 2 A | Right Angle Through Hole | Gold | 2 | 0.1 " | 2.54 mm | Solder | Receptacle Female Sockets | All | 1 | B | ||
Hirose Electric Co Ltd | -55 C | 85 °C | Polybutylene Terephthalate (PBT) | UL94 V-0 | 2 A | Right Angle Through Hole | Gold | 2 | 0.1 " | 2.54 mm | 16 | Solder | Receptacle Female Sockets | All | |||
 Hirose Electric Co Ltd | Right Angle Through Hole | Gold | 3 | 0.1 " | 2.54 mm | 96 | Solder | Receptacle Female Sockets | All | 1 | C | ||||||
Hirose Electric Co Ltd | -55 C | 85 °C | Polybutylene Terephthalate (PBT) | UL94 V-0 | 2 A | Right Angle Through Hole | Gold | 2 | 0.1 " | 2.54 mm | 44 | Solder | Receptacle Female Sockets | Board Lock | All | ||
Hirose Electric Co Ltd | -55 C | 85 °C | Polybutylene Terephthalate (PBT) | UL94 V-0 | 2 A | Right Angle Through Hole | Gold | 2 | 0.1 " | 2.54 mm | 10 | Solder | Receptacle Female Sockets | Board Lock | All |
