TPS40211-Q1 Series

4.5-V to 52-V wide input range current mode boost controller with 260-mV reference voltage

Catalog

4.5-V to 52-V wide input range current mode boost controller with 260-mV reference voltage

Part	Mounting Type	Supplier Device Package	Topology	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Output Phases	Frequency - Switching [Min]	Frequency - Switching [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Number of Outputs	Package / Case	Package / Case	Function	Control Features	Supplied Contents	Utilized IC / Part	Current - Output / Channel	Voltage - Output [Max]	Voltage - Output [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Outputs and Type	Outputs and Type	Qualification	Grade
Texas Instruments TPS40211DGQR	Surface Mount	10-HVSSOP	Boost Flyback SEPIC	Transistor Driver	-40 °C	125 ¯C	Positive	1	35 kHz	1 MHz	4.5 V	52 V	1	10-MSOP 10-PowerTFSOP	0.118 in 3 mm	Step-Up Step-Up/Step-Down	Enable Frequency Control Soft Start

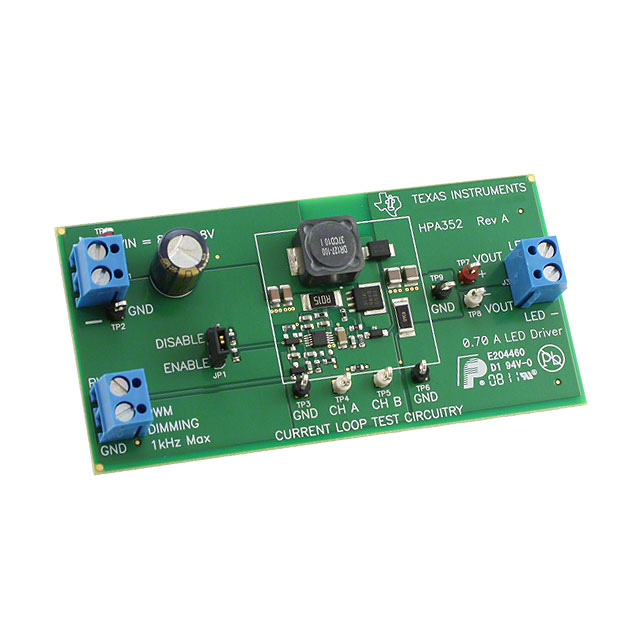

Texas Instruments TPS40211EVM-352																		Board(s)	TPS40211	700 mA	35 V	20 V	18 V	8 V	Non-Isolated	1
Texas Instruments TPS40211DRCT	Surface Mount	10-VSON (3x3)	Boost Flyback SEPIC	Transistor Driver	-40 °C	125 ¯C	Positive	1	35 kHz	1 MHz	4.5 V	52 V	1	10-VFDFN Exposed Pad		Step-Up Step-Up/Step-Down	Enable Frequency Control Soft Start
Texas Instruments TPS40211QDGQRQ1	Surface Mount	10-HVSSOP	Boost Flyback SEPIC	Transistor Driver	-40 °C	125 ¯C	Positive	1	35 kHz	1 MHz	4.5 V	52 V	1	10-MSOP 10-PowerTFSOP	0.118 in 3 mm	Step-Up Step-Up/Step-Down	Enable Frequency Control Soft Start										AEC-Q100	Automotive
Texas Instruments TPS40211DGQ	Surface Mount	10-HVSSOP	Boost Flyback SEPIC	Transistor Driver	-40 °C	125 ¯C	Positive	1	35 kHz	1 MHz	4.5 V	52 V	1	10-MSOP 10-PowerTFSOP	0.118 in 3 mm	Step-Up Step-Up/Step-Down	Enable Frequency Control Soft Start

Catalog

4.5-V to 52-V wide input range current mode boost controller with 260-mV reference voltage

Key Features

• Qualified for automotive applicationsAEC-Q100 qualified with the following results:Device temperature grade 1: –40°C to 125°C ambient operating temperature rangeDevice HBM ESD classification level 2Device CDM ESD classification level C4BFunctional Safety-CapableDocumentation available to aid functional safety system designFor boost, flyback, SEPIC, LED driver applicationsWide input operating voltage: 4.5 V to 52 VAdjustable oscillator frequencyFixed-frequency current-mode controlInternal slope compensationIntegrated low-side driverProgrammable closed-loop soft startOvercurrent protectionExternal synchronization capableReference voltage: 700 mV (TPS40210-Q1), 260 mV (TPS40211-Q1)Low-current disable functionQualified for automotive applicationsAEC-Q100 qualified with the following results:Device temperature grade 1: –40°C to 125°C ambient operating temperature rangeDevice HBM ESD classification level 2Device CDM ESD classification level C4BFunctional Safety-CapableDocumentation available to aid functional safety system designFor boost, flyback, SEPIC, LED driver applicationsWide input operating voltage: 4.5 V to 52 VAdjustable oscillator frequencyFixed-frequency current-mode controlInternal slope compensationIntegrated low-side driverProgrammable closed-loop soft startOvercurrent protectionExternal synchronization capableReference voltage: 700 mV (TPS40210-Q1), 260 mV (TPS40211-Q1)Low-current disable function

Description

The TPS40210-Q1 and TPS40211-Q1 devices are wide-input-voltage (4.5 V to 52 V) non-synchronous boost controllers. They are suitable for topologies that require a grounded source N-channel FET, including boost, flyback, SEPIC, and various LED driver applications. Device features include programmable soft start, overcurrent protection with automatic retry, and programmable oscillator frequency. Current-mode control provides improved transient response and simplified loop compensation. The main difference between the two parts is the reference voltage to which the error amplifier regulates the FB pin. The TPS40210-Q1 and TPS40211-Q1 devices are wide-input-voltage (4.5 V to 52 V) non-synchronous boost controllers. They are suitable for topologies that require a grounded source N-channel FET, including boost, flyback, SEPIC, and various LED driver applications. Device features include programmable soft start, overcurrent protection with automatic retry, and programmable oscillator frequency. Current-mode control provides improved transient response and simplified loop compensation. The main difference between the two parts is the reference voltage to which the error amplifier regulates the FB pin.
