32-6550 Series

Catalog

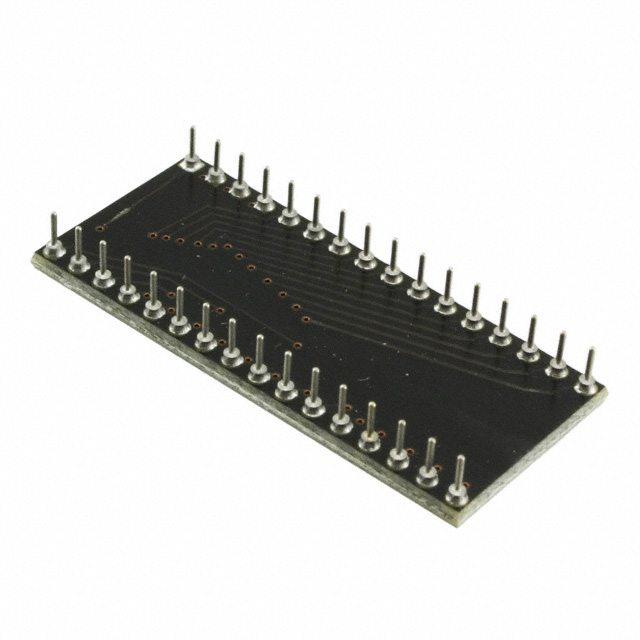

SOCKET ADAPTER TSOP TO 32DIP 0.6

Part	Contact Material - Post [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Mating	Termination Post Length	Termination Post Length	Contact Finish - Post	Mounting Type	Termination	Contact Finish - Mating	Number of Pins	Pitch - Mating	Pitch - Mating	Board Material	Pitch - Post	Pitch - Post	Convert To (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)
Aries Electronics 32-655000-10-P	Brass	200 µin	5.08 µm	Copper	0.125 in	3.18 mm	Tin-Lead	Through Hole	Solder	Silver	32	0.5 mm	0.02 in	FR4 Epoxy Glass	0.1 in	2.54 mm	15.24 mm	0.6 in	DIP
Aries Electronics 32-655000-10	Brass	200 µin	5.08 µm	Copper	0.125 in	3.18 mm	Tin-Lead	Through Hole	Solder	Silver	32	0.5 mm	0.02 in	FR4 Epoxy Glass	0.1 in	2.54 mm	15.24 mm	0.6 in	DIP
