846-062 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 62POS 0.125
| Part | Material - Insulation | Termination Rows [custom] | Number of Positions | Contact Finish | Card Type | Gender | Contact Material | Color | Card Thickness [Max] | Card Thickness [Min] | Read Out | Contact Type | Pitch | Pitch | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Features | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 62 | Gold | Non Specified - Dual Edge | Female | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | 3.18 mm | 0.125 in | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 0.25 Ám | 10 Áin | 2 | Card Extender | Solder | 125 °C | -40 C | Board Edge Straddle Mount | 31 |

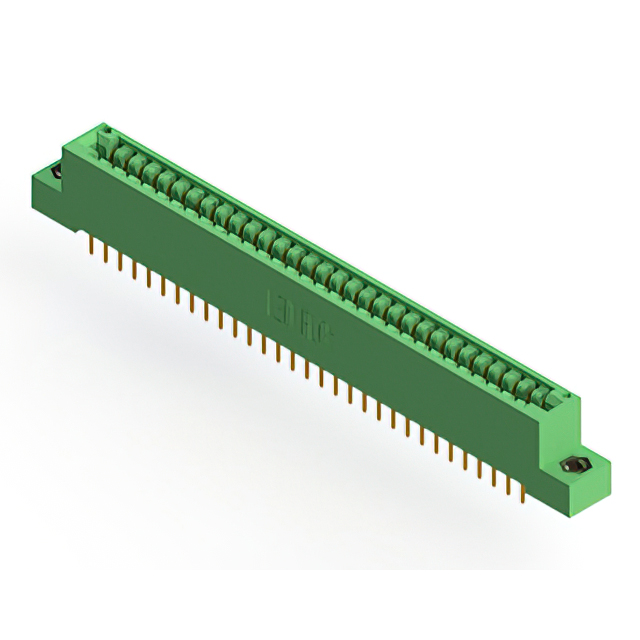

 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 62 | Gold | Non Specified - Dual Edge | Female | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | 3.18 mm | 0.125 in | 4-40 Flush Mount Threaded Insert Top Opening | 0.25 Ám | 10 Áin | 2 | Solder | 125 °C | -40 C | Through Hole | 31 | |||

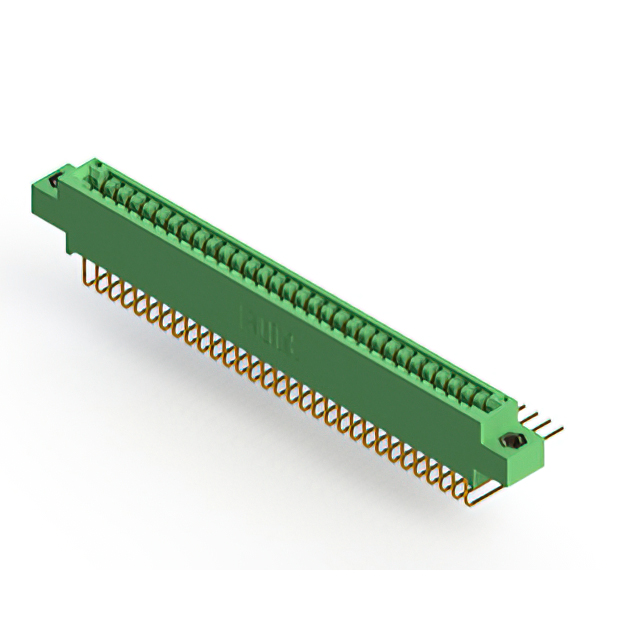

 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 62 | Gold | Non Specified - Dual Edge | Female | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | 3.18 mm | 0.125 in | 4-40 Flush Mount Threaded Insert Top Opening | 0.25 Ám | 10 Áin | 2 | Solder | 125 °C | -40 C | Right Angle Through Hole | 31 | |||

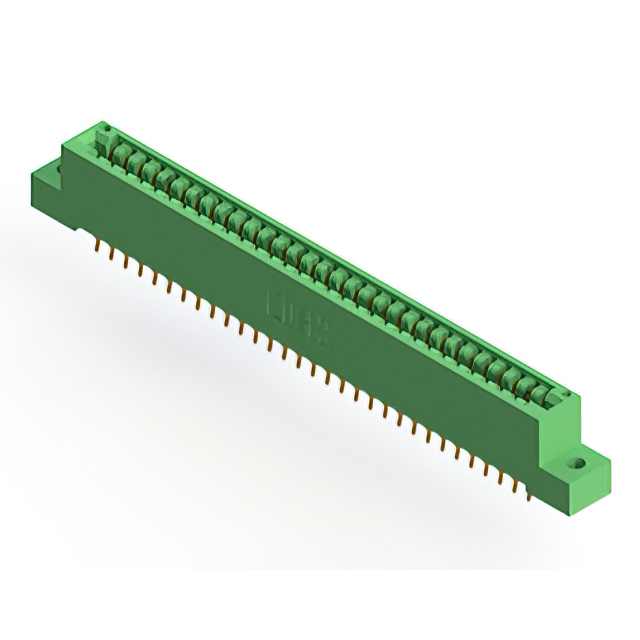

 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 62 | Gold | Non Specified - Dual Edge | Female | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | 3.18 mm | 0.125 in | 3.25 mm | 0.128 " | 0.25 Ám | 10 Áin | 2 | Solder Eyelet(s) | 125 °C | -40 C | Through Hole | 31 | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 62 | Gold | Non Specified - Dual Edge | Female | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | 3.18 mm | 0.125 in | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 " | 0.25 Ám | 10 Áin | 2 | Solder | 125 °C | -40 C | Through Hole | 31 | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 62 | Gold | Non Specified - Dual Edge | Female | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | 3.18 mm | 0.125 in | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | 0.25 Ám | 10 Áin | 2 | Solder | 125 °C | -40 C | Through Hole | 31 | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 62 | Gold | Non Specified - Dual Edge | Female | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | 3.18 mm | 0.125 in | M3 Threaded Insert Top Mount Opening | 0.25 Ám | 10 Áin | 2 | Solder | 125 °C | -40 C | Right Angle Through Hole | 31 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 62 | Gold | Non Specified - Dual Edge | Female | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | 3.18 mm | 0.125 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 " | 0.25 Ám | 10 Áin | 2 | Solder | 125 °C | -40 C | Through Hole | 31 | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 62 | Gold | Non Specified - Dual Edge | Female | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | 3.18 mm | 0.125 in | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " | 0.25 Ám | 10 Áin | 2 | Card Extender | Solder | 125 °C | -40 C | Board Edge Straddle Mount | 31 |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 62 | Gold | Non Specified - Dual Edge | Female | Copper Alloy | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | Cantilever | 3.18 mm | 0.125 in | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " | 0.25 Ám | 10 Áin | 2 | Solder | 125 °C | -40 C | Through Hole | 31 |
