MCP621 Series

20 MHz, 200 µV Op Amps with mCal

Catalog

20 MHz, 200 µV Op Amps with mCal

Part	Supplier Device Package	Number of Circuits	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Input Bias	Voltage - Input Offset	Slew Rate	Mounting Type	Voltage - Supply Span (Min) [Min]	Gain Bandwidth Product	Current - Supply	Amplifier Type	Package / Case	Package / Case [y]	Package / Case [x]	Current - Output / Channel [custom]	Voltage - Supply Span (Max) [Max]

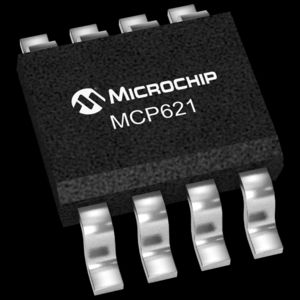

Microchip Technology MCP621T-E/SN	8-SOIC	1	Rail-to-Rail	125 °C	-40 °C	5 pA	200 çV	10 V/çs	Surface Mount	2.5 V	20 MHz	2.5 mA	General Purpose	8-SOIC	3.9 mm	0.154 in	70 mA	5.5 V
Microchip Technology MCP621T-E/MNY	8-TDFN (2x3)	1	Rail-to-Rail	125 °C	-40 °C	5 pA	200 çV	10 V/çs	Surface Mount	2.5 V	20 MHz	2.5 mA	General Purpose	8-WFDFN Exposed Pad			70 mA	5.5 V
Microchip Technology MCP621-E/SN	8-SOIC	1	Rail-to-Rail	125 °C	-40 °C	5 pA	200 çV	10 V/çs	Surface Mount	2.5 V	20 MHz	2.5 mA	General Purpose	8-SOIC	3.9 mm	0.154 in	70 mA	5.5 V

Catalog

20 MHz, 200 µV Op Amps with mCal

Key Features

• * mCal Technology: On chip self-calibration

• * 20MHz GBWP

• * High Output Drive Current

• * Rail-to-Rail Output

• * Chip Select/Calibration Pin

• * Small 8-pin 2x3 TDFN Package

• * AEC-Q100 Grade 1

Description

The MCP62x family of operational amplifiers feature low offset. At power-up, these op amps are self-calibrated using mCal. Some package options also provide a calibration/chip select pin that supports a low power mode of operation, with offset calibration at the time normal operation is re-started. These amplifiers are optimized for high speed, low noise and distortion, single-supply operation with rail-to-rail output and an input that includes the negative rail. AEC-Q100 Grade 1 qualification is available for this device
