2SK3566 Series

Catalog

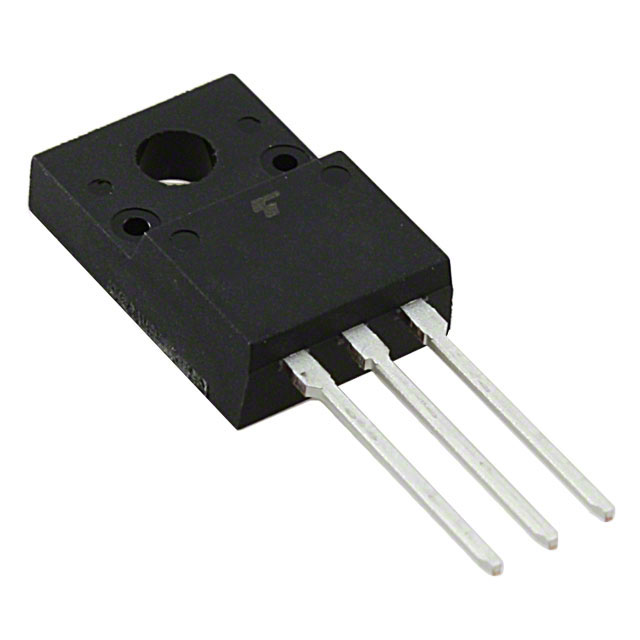

TRANS MOSFET N-CH SI 900V 2.5A 3-PIN(3+TAB) TO-220SIS

Part	Drive Voltage (Max Rds On, Min Rds On)	Rds On (Max) @ Id, Vgs	Operating Temperature	Mounting Type	Package / Case	Gate Charge (Qg) (Max) @ Vgs [Max]	Vgs (Max)	Supplier Device Package	FET Type	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max)	Technology
Toshiba Semiconductor and Storage 2SK3566(STA4,Q,M)	10 V	6.4 Ohm	150 °C	Through Hole	TO-220-3 Full Pack	12 nC	30 V	TO-220SIS	N-Channel	900 V	470 pF	2.5 A	40 W	MOSFET (Metal Oxide)
