RM21TP Series

Catalog

CONN PLUG FMALE 20POS SOLDER CUP

Part	Shell Finish	Connector Type	Contact Finish - Mating	Shell Material	Orientation	Material Flammability Rating	Insert Material	Features	Operating Temperature [Max]	Operating Temperature [Min]	Color	Mounting Type	Cable Opening	Cable Opening	Current Rating (Amps)	Contact Material	Number of Positions	Voltage Rating	Shielding	Primary Material	Fastening Type	Shell Size - Insert [custom]
Hirose Electric Co Ltd RM21TP-20S(81)	Nickel	Plug Female Sockets	Silver	Brass	Keyed	UL94 V-0	Polyphenylene Sulfide (PPS)	Backshell Cable Clamp	85 °C	-25 °C	Silver	Free Hanging (In-Line)	0.591 in	15 mm	5 A	Copper Alloy	20	350 VAC 490 VDC	Unshielded	Metal	Threaded	21
Hirose Electric Co Ltd RM21TP-15S(81)	Nickel	Plug Female Sockets	Silver	Brass	Keyed	UL94 V-0	Polyphenylene Sulfide (PPS)	Backshell Cable Clamp	85 °C	-25 °C	Silver	Free Hanging (In-Line)	0.591 in	15 mm	5 A	Copper Alloy	15	500 VAC 700 VDC	Unshielded	Metal	Threaded	21

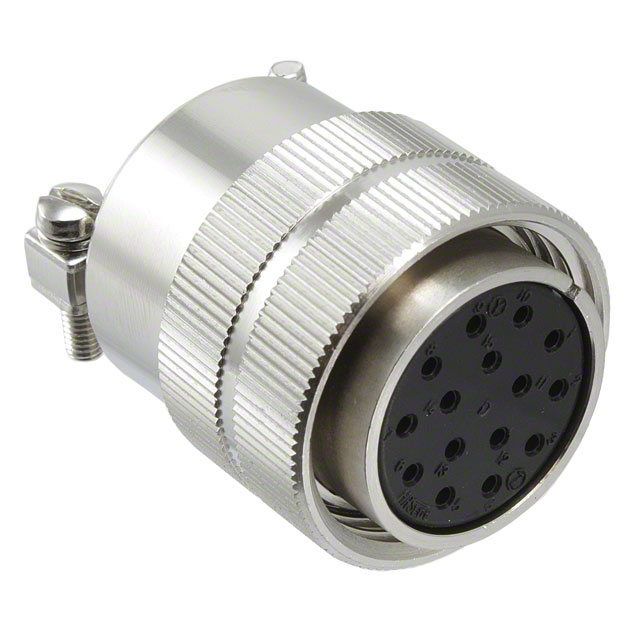

Hirose Electric Co Ltd RM21TP-15S(71)		Plug Female Sockets			Keyed				85 °C	-25 °C		Free Hanging (In-Line)			5 A		15	500 VAC 700 VDC			Threaded	21
