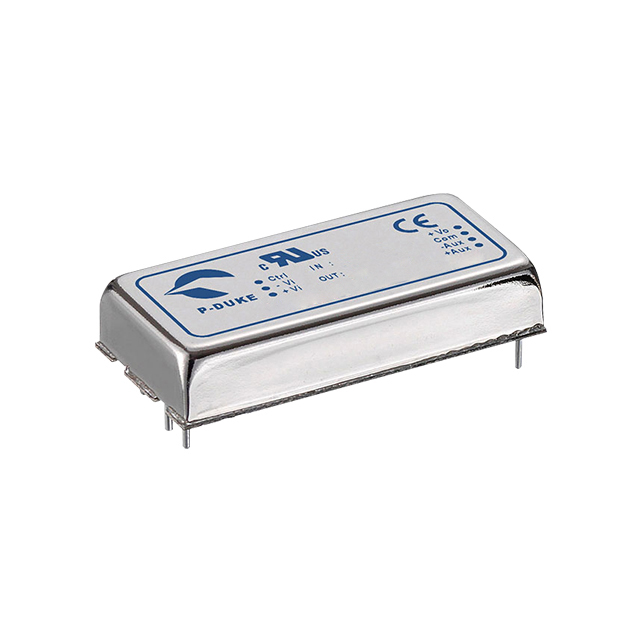

FED30 Series
Manufacturer: P-DUKE Technology
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
DC DC CONVERTER 5.1V 31W
| Part | Voltage - Input (Min) | Voltage - Output 1 | Standard Number | Features | Mounting Type | Voltage - Input (Max) | Applications | Number of Outputs | Type | Operating Temperature (Max) | Operating Temperature (Min) | Efficiency | Approval Agency | Package / Case | Size / Dimension Width | Size / Dimension Length | Size / Dimension Height | Voltage - Isolation | Current - Output (Max) | Power (Watts) | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 P-DUKE Technology | 9 V | 5.1 V | 60950-1 62368-1 | Adjustable Output Remote On/Off | Through Hole | 36 V | ITE (Commercial) | 1 | Isolated Module | 85 °C | -40 °C | 88 % | CB CE cURus | 6-DIP Module | 1 in | 2 in | 0.4 in | 1.6 kV | 6 A | 31 W | Active High Enable |
P-DUKE Technology | 9 V | 15 V | 60950-1 62368-1 | Adjustable Output Remote On/Off | Through Hole | 36 V | ITE (Commercial) | 1 | Isolated Module | 85 °C | -40 °C | 89 % | CB CE cURus | 6-DIP Module | 1 in | 2 in | 0.4 in | 1.6 kV | 2 A | 30 W | Active High Enable |
