SMM12 Series

Manufacturer: CUI Inc.

Catalog

AC/DC WALL MOUNT ADAPTER 6V 12W

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Form	Current - Output (Max) [Max]	Standard Number	Voltage - Output	No Load Power Consumption	Output Connector	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Region Utilized	Input Type	Efficiency	Applications	Polarization	Output Connector [diameter]	Output Connector [x]	Cord Length	Cord Length	Output Connector [z]
CUI Inc. SMM12-6-KB-I38	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	12 W	Wall Mount	2 A	60601-1 60950-1	6 V	100 mW	USB A Receptacle	264 VAC	90 VAC	Multi-Blade (Sold Separately)	CE cULus FCC PSE TUV	40 °C	0 °C	International	Multi-Blade (Sold Separately)	Level VI	ITE (Commercial) Medical
CUI Inc. SMM12-5-4B-P6	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	12 W	Wall Mount	2.4 A	60601-1 60950-1	5 V	100 mW	Barrel Plug	264 VAC	90 VAC	Multi-Blade (Included)	CE cULus FCC PSE TUV	40 °C	0 °C	International	Multi-Blade (Included)	Level VI	ITE (Commercial) Medical	Positive Center	2.5 mm 5.5 mm	9.5 mm	1.5 m	59 in
CUI Inc. SMM12-5-KB-P6	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	12 W	Wall Mount	2.4 A	60601-1 60950-1	5 V	100 mW	Barrel Plug	264 VAC	90 VAC	Multi-Blade (Sold Separately)	CE cULus FCC PSE TUV	40 °C	0 °C	International	Multi-Blade (Sold Separately)	Level VI	ITE (Commercial) Medical	Positive Center	2.5 mm 5.5 mm	9.5 mm	1.5 m	59 in
CUI Inc. SMM12-15-4B-P6	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	12 W	Wall Mount	0.8 A	60601-1 60950-1	15 V	100 mW	Barrel Plug	264 VAC	90 VAC	Multi-Blade (Included)	CE cULus FCC PSE TUV	40 °C	0 °C	International	Multi-Blade (Included)	Level VI	ITE (Commercial) Medical	Positive Center	2.5 mm 5.5 mm	9.5 mm	1.5 m	59 in
CUI Inc. SMM12-12-4W-P6	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	12 W	Wall Mount	1 A	60601-1 60950-1	12 V	100 mW	Barrel Plug	264 VAC	90 VAC	Multi-Blade (Included)	CE cULus FCC PSE TUV	40 °C	0 °C	International	Multi-Blade (Included)	Level VI	ITE (Commercial) Medical	Positive Center	2.5 mm 5.5 mm	9.5 mm	1.5 m	59 in
CUI Inc. SMM12-15-4W-P6R	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	12 W		0.8 A	60601-1 60950-1	15 V	100 mW	Barrel Plug R/A	264 VAC	90 VAC	Multi-Blade (Included)	CE cURus FCC PSE TUV	40 °C	0 °C	International	Multi-Blade (Included)	Level VI	ITE (Commercial) Medical	Positive Center	2.5 mm 5.5 mm		1.5 m	59 in	9.5 mm
CUI Inc. SMM12-6-4B-P5R

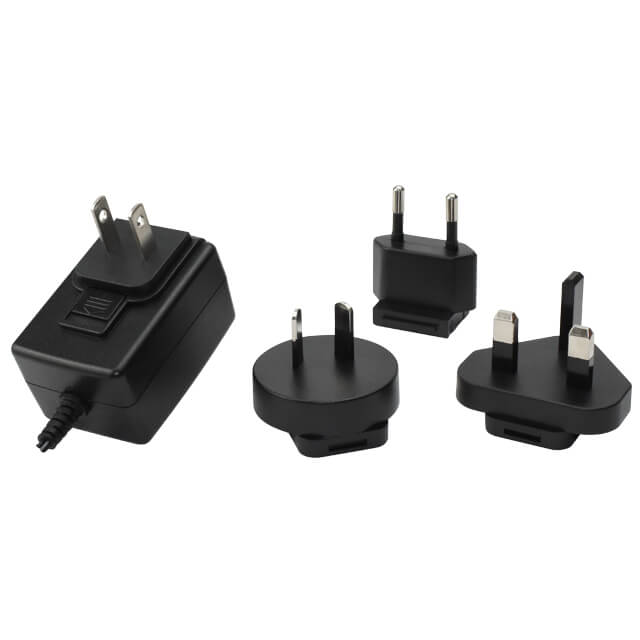

CUI Inc. SMM12-12-4B-P5	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	12 W	Wall Mount	1 A	60601-1 60950-1	12 V	100 mW	Barrel Plug	264 VAC	90 VAC	Multi-Blade (Included)	CE cULus FCC PSE TUV	40 °C	0 °C	International	Multi-Blade (Included)	Level VI	ITE (Commercial) Medical	Positive Center	2.1 mm 5.5 mm	9.5 mm	1.5 m	59 in
CUI Inc. SMM12-18-KB-P5	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	12 W	Wall Mount	660 mA	60601-1 60950-1	18 V	100 mW	Barrel Plug	264 VAC	90 VAC	Multi-Blade (Sold Separately)	CE cULus FCC PSE TUV	40 °C	0 °C	International	Multi-Blade (Sold Separately)	Level VI	ITE (Commercial) Medical	Positive Center	2.1 mm 5.5 mm	9.5 mm	1.5 m	59 in
CUI Inc. SMM12-9-4W-I38	1.34 "	1.54 in	57 mm	39 mm	34 mm	2.24 in	12 W	Wall Mount	1.33 A	60601-1 60950-1	9 V	100 mW	USB A Receptacle	264 VAC	90 VAC	Multi-Blade (Included)	CE cULus FCC PSE TUV	40 °C	0 °C	International	Multi-Blade (Included)	Level VI	ITE (Commercial) Medical
