P-NUCLEO Series
STM32 Nucleo pack for IO-Link device fully compatible with IO-Link v1.1 (PHY and stack)
Manufacturer: STMicroelectronics
Catalog
STM32 Nucleo pack for IO-Link device fully compatible with IO-Link v1.1 (PHY and stack)
| Part | Supplied Contents | Contents | Embedded | Embedded | Function | Utilized IC / Part | Type | Sensing Range [Max] [custom] | Sensing Range [Min] [custom] | Sensor Type | For Use With/Related Products | Frequency | Secondary Attributes | Primary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | Board(s) | Board(s) | 32-Bit MCU | Transceiver IO-Link® | L6360 STM32F446RET6 | Interface | ||||||||
 STMicroelectronics | Board(s) | Board(s) | 32-Bit MCU | Transceiver IO-Link® | L6362A STM32L073RZT6 | Interface | ||||||||
 STMicroelectronics | Accessories Board(s) | Accessories Board(s) | STLM20 TGS5141 TSU111 | 5000 ppm | 0 ppm | Gas | ||||||||
 STMicroelectronics | Board(s) | Board(s) | STM32WB55CG STM32WB55RG | 802.15.4 (Thread Zigbee®) Bluetooth® 5.x (BLE) Transceiver Transceiver; Bluetooth® 5.x (BLE) | STM32WB55 | 2.4 GHz | ||||||||
 STMicroelectronics | Accessories Board(s) | Accessories Board(s) | 32-Bit MCU | Motor Controller/Driver | L6230 mbed-Enabled Development STM32F302 | Power Management | Potentiometer Speed Control | Motors (BLDC PMSM) |
Description
AI

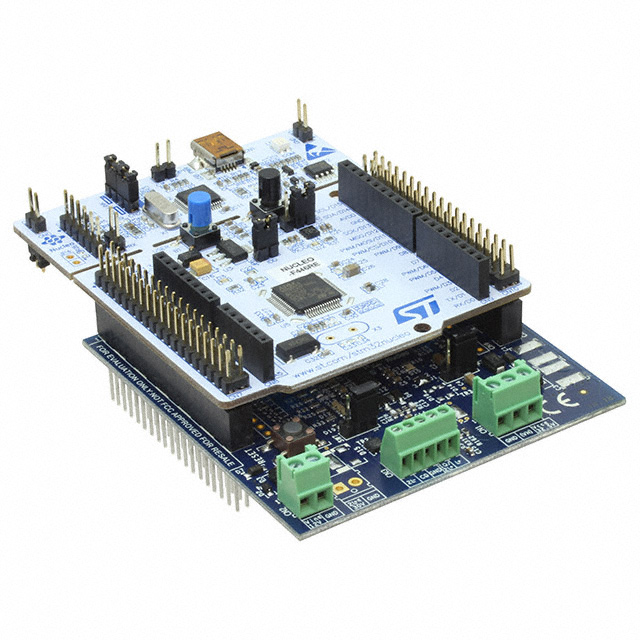

The P-NUCLEO-IOM01M1 is an STM32 Nucleo pack composed of the STEVAL-IOM001V1 and the NUCLEO-F446RE boards. The STEVAL-IOM001V1 is a single IO-Link master PHY layer (L6360) while the NUCLEO- F446RE runs an IO-Link stack rev 1.1 (developed by and property of TEConcept GmbH, license limited to 10k minutes, renewable without additional costs). IO-Link stack update is allowed exclusively by following the procedure described in UM2421 (freely available at www.st.com). Any other erase/overwrite of the pre-loaded stack makes impossible to restore it.
The STM32 Nucleo pack provides an affordable and easy-to-use solution for the evaluation of IO-Link applications, L6360 communication features and robustness, together with the STM32F446RET6 computation performance. The pack, hosting up to four STEVAL-IOM001V1 to build a quad port IO-Link master, can access the IO-Link physical layer and communicate with IO-Link Devices.
You can evaluate the tool via the dedicated GUI (IO-Link Control Tool©, property of TEConcept GmbH) or use it as an IO-Link master bridge accessible from the dedicated SPI interface: source code of demo project (Low-Level IO-Link Master Access Demo Application, developed by TEConcept GmbH) and API specification are available for free.
