ADL5372 Series
Manufacturer: Analog Devices
Beta
⌘K
1500 MHZTO 2500 MHZQUADRATURE MODULATOR
| Part | RF Frequency [Min] | RF Frequency [Max] | LO Frequency [Max] | LO Frequency [Min] | Noise Floor | Current - Supply | Mounting Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Test Frequency | Supplier Device Package | Output Power | Function | Package / Case | P1dB | Frequency [Max] | Frequency [Min] | Type | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | 1.5 GHz | 2.5 GHz | 2.5 GHz | 1.5 GHz | -158 dBm/Hz | 165 mA | Surface Mount | 4.75 V | 5.25 V | 1.9 GHz | 24-LFCSP-VQ (4x4) | 7.1 dBm | Modulator | 24-VFQFN Exposed Pad CSP | 14.2 dBm | |||||

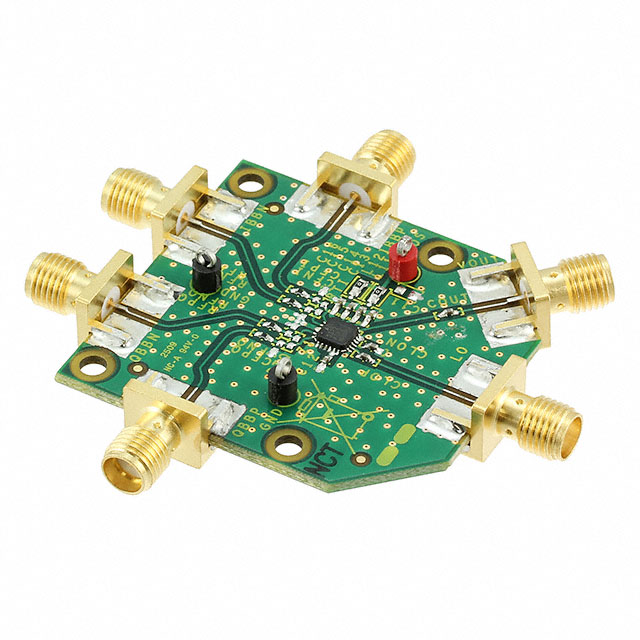

 Analog Devices | 2.5 GHz | 1.5 GHz | Modulator | ADL5372 | Board(s) |
