FX12B Series

Catalog

CONNECTOR

Part	Number of Positions	Mated Stacking Heights	Number of Rows [custom]	Pitch	Pitch	Mounting Type	Features	Height Above Board [z]	Height Above Board [z]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Type
Hirose Electric Co Ltd FX12B-60P-0.4SV(11)
Hirose Electric Co Ltd FX12B-40P-0.4SV(30)	40	1.5 mm	2	0.4 mm	0.016 in	Surface Mount	Solder Retention	0.053 in	1.35 mm

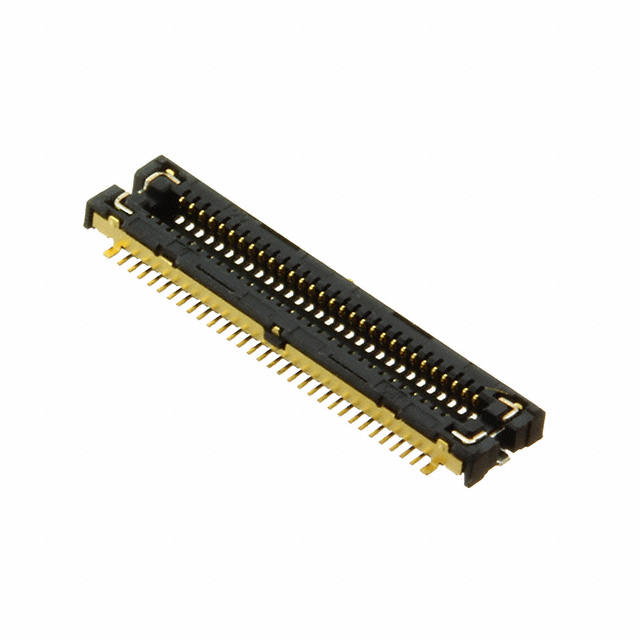

Hirose Electric Co Ltd FX12B-60S-0.4SV	60	1.5 mm	2	0.4 mm	0.016 in	Surface Mount	Solder Retention	0.047 "	1.2 mm	Gold	0.1 Ám	4 Áin	Receptacle Outer Shroud Contacts
Hirose Electric Co Ltd FX12B-24P-0.4SV	24	1.5 mm	2	0.4 mm	0.016 in	Surface Mount	Solder Retention	0.053 in	1.35 mm	Gold	0.1 Ám	4 Áin

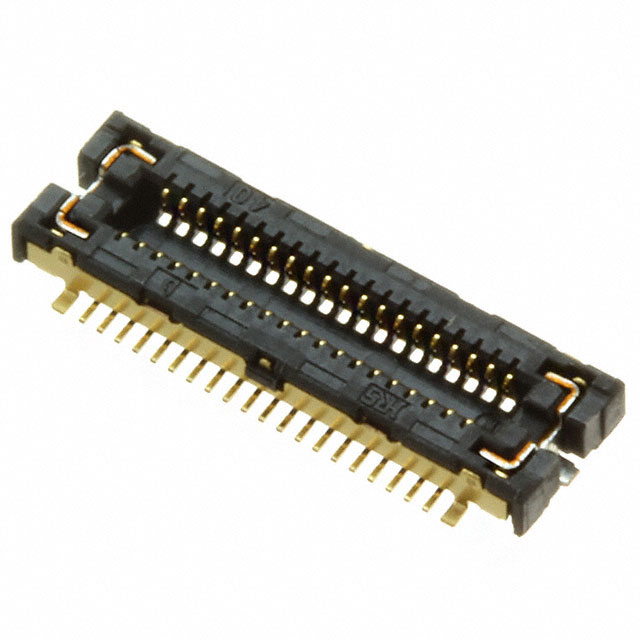

Hirose Electric Co Ltd FX12B-40S-0.4SV	40	1.5 mm	2	0.4 mm	0.016 in	Surface Mount	Solder Retention	0.047 "	1.2 mm	Gold	0.1 Ám	4 Áin	Receptacle Outer Shroud Contacts
Hirose Electric Co Ltd FX12B-24S-0.4SV(30)	24	1.5 mm	2	0.4 mm	0.016 in	Surface Mount	Solder Retention	0.047 "	1.2 mm				Receptacle Outer Shroud Contacts
Hirose Electric Co Ltd FX12B-60S-0.4SV(11)
Hirose Electric Co Ltd FX12B-40P-0.4SV	40	1.5 mm	2	0.4 mm	0.016 in	Surface Mount	Solder Retention	0.053 in	1.35 mm	Gold	0.1 Ám	4 Áin
Hirose Electric Co Ltd FX12B-40P-0.4SV(22)
Hirose Electric Co Ltd FX12B-40P-0.4SV(21)
