35DBM10 Series
Manufacturer: Portescap
Beta
⌘K
STEPPER MOTOR PM LINEAR ACT 12V
| Part | Motor Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated | Construction | Termination Style | Load Force (Static) | Load Force (Static) | Type | Stroke Length | Stroke Length |
|---|---|---|---|---|---|---|---|---|---|---|---|

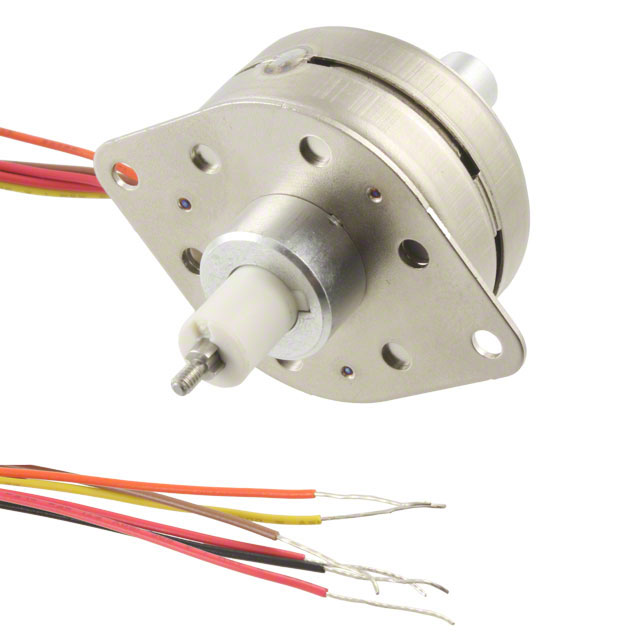

 Portescap | Stepper Unipolar | -20 ░C | 70 °C | 12 VDC | Ball Screw | Wire Leads | 20.9 N | 4.7 lbf | Linear Actuator | ||

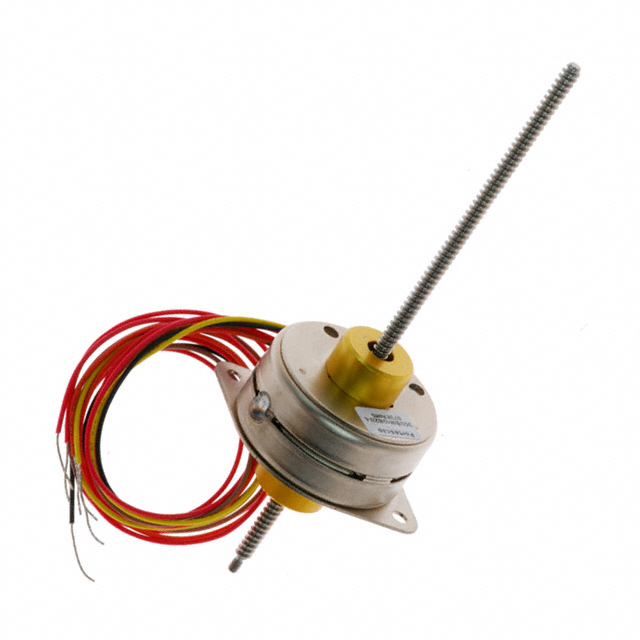

 Portescap | Stepper Unipolar | -20 ░C | 70 °C | 12 VDC | Ball Screw | Wire Leads | 20.9 N | 4.7 lbf | Linear Actuator | 17.9 mm | 0.705 in |
